Compaq P900 - Page 40

— 2 —
P900
21
14
8
10
29
7
9
13
19
11
12
20
17
18
15
16
28
30
24
25
22
23
26
27
1
2
3
4
5
6
31

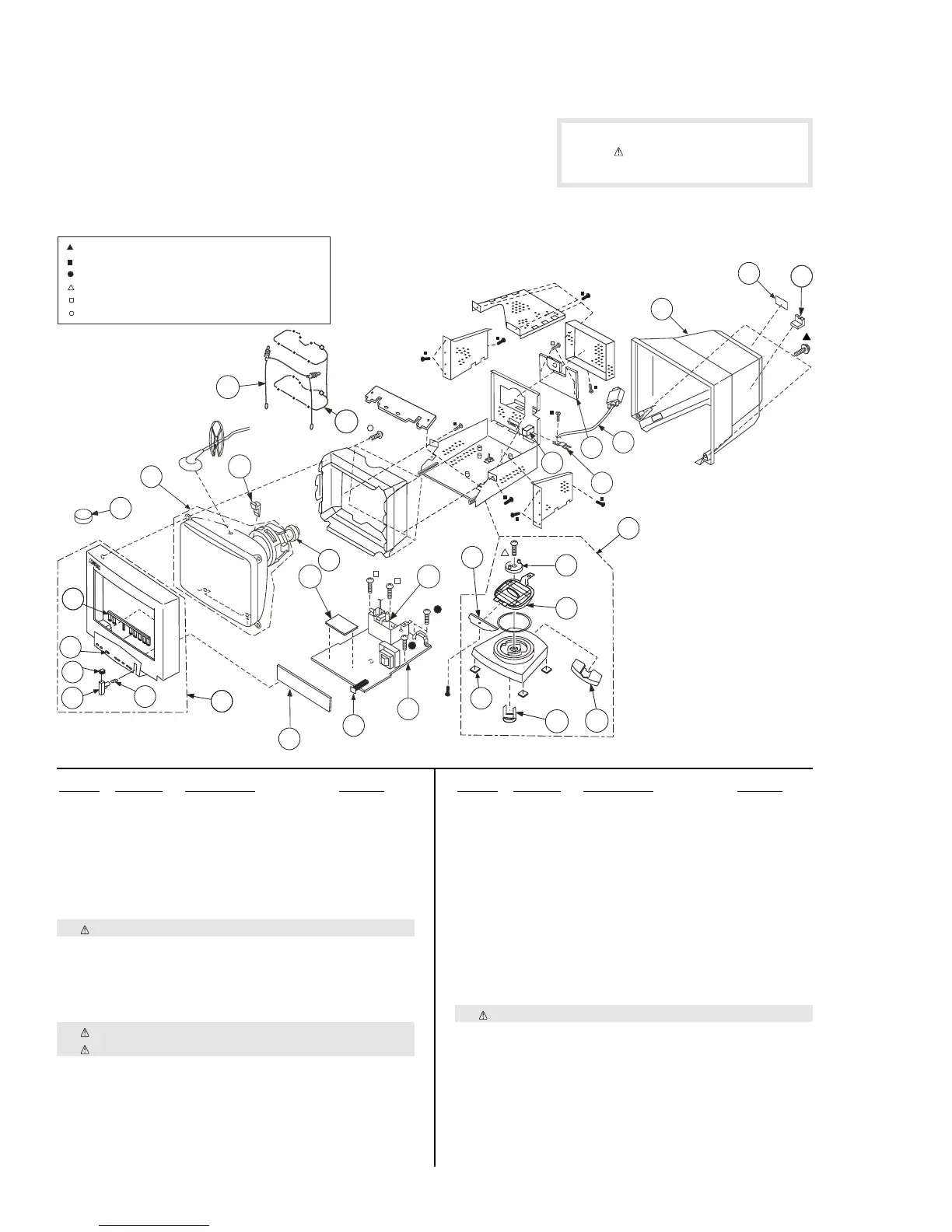

SECTION 5
EXPLODED VIEWS
Note:
The components identified by shading and
mark are critical for safety.
Replace only with part number specified.
• Items with no part number and no descrip-
tion are not stocked because they are sel-
dom required for routine service.
• The component parts of an assembly are
indicated by the reference numbers in the
remarks column.
• Items marked " * " are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
5-1. CHASSIS (AEP Model made in UK only)
REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK
1 X-4037-515-1 BEZEL ASSY 2-6
2 4-063-224-01 SPRING, COMPRESSION
3 * 4-074-635-01 BUTTON, POWER
4 4-074-637-01 GUIDE, LIGHT
5 * 4-074-636-01 BUTTON, MULTI
6 * 4-074-638-01 BUTTON, SLIDE
7 8-736-407-61 ITC ASSY 19TKC-R1
8 * A-1372-778-A H MOUNTED PC BOARD
9 4-073-342-02 CAP, POWER
10 * A-1346-892-C D COMPLETE PC BOARD
11 4-040-897-01 SPACER, DY
12 1-452-912-61 NECK ASSEMBLY (NA-2914)
13 1-419-285-11 COIL, DEGAUSSING
14 * 4-047-316-01 SPRING, EXTENSION
15 1-251-382-31 INLET, AC 3P(WITH NOISE FILTER)
16 * 4-045-131-11 STOPPER, CABLE
17 * A-1299-152-B A COMPLETE PC BOARD
18 1-791-754-11 CABLE ASSY(15P DSUB CONNECTOR)
19 * 4-074-634-01 CABINET
20 * 4-074-879-01 LABEL, INFORMATION
21 * 4-073-341-11 COVER, CABLE
22 * X-4037-314-1 BASE ASSY, STAND 23-27
23 4-060-644-02 STOPPER (A)
24 4-071-961-21 SLIDER
25 4-041-621-01 STOPPER (B)
26 * 4-060-533-01 CUSHION
27 * 4-073-379-01 COVER, USB
28 * A-1390-997-A N MOUNTED PC BOARD
29 1-452-032-00 MAGNET,DISC
30 1-453-317-11 FBT ASSY NX-4700//X4E4
31 * 4-073-997-01 SUPPORT, SLIDER
7-685-882-09 SCREW +BVTT 4X10 (S)
7-685-881-09 SCREW +BVTT 4X8 (S)
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
4-039-358-01 SCREW +BVTP 4X16
7-685-872-09 SCREW +BVTT 3X8 (S)
4-203-648-01 SCREW (5) SELF TAPPING
