REMOVAL & REPLACEMENT
Mass Storage Devices

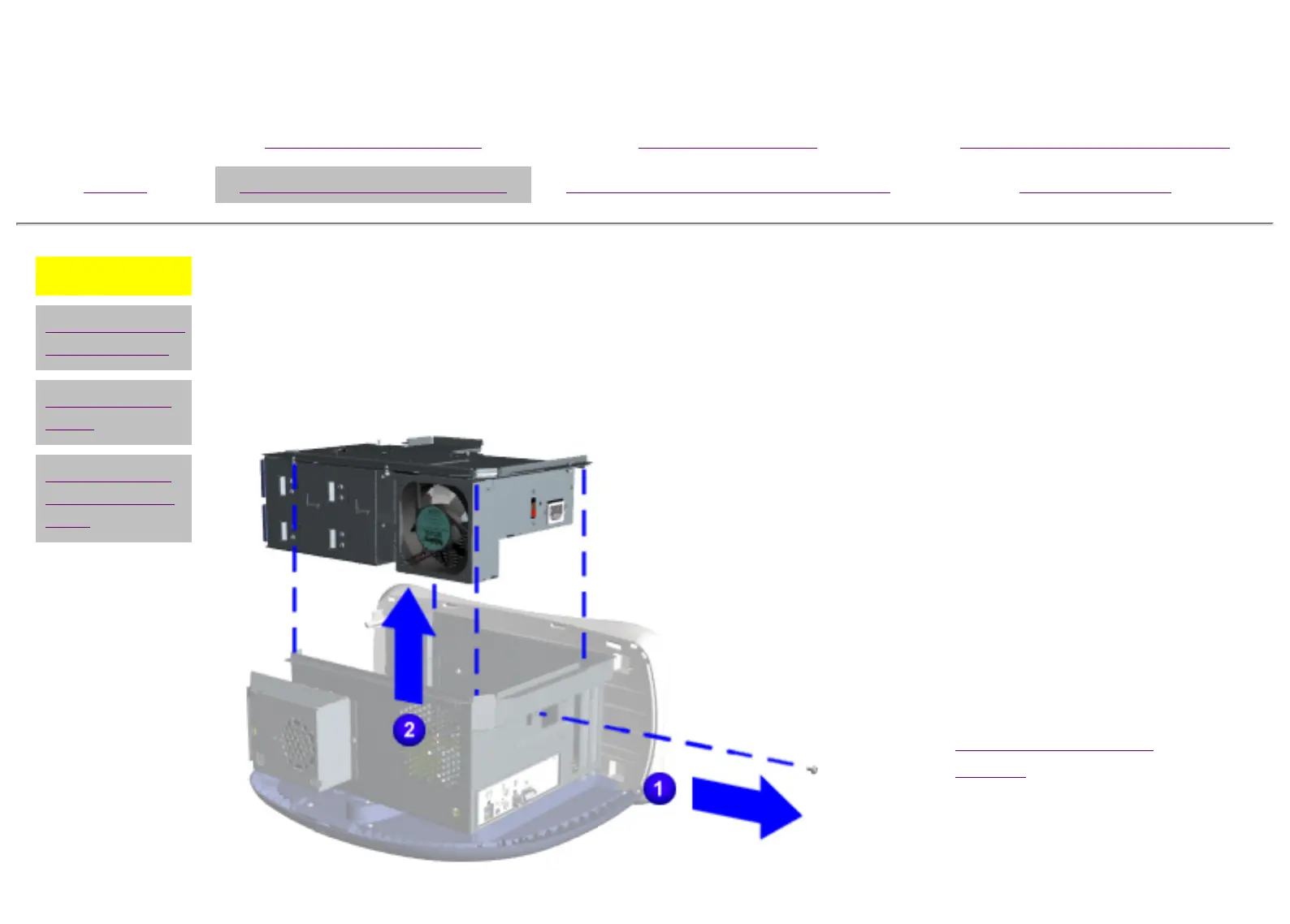

Removing the Drive Cage Assembly, continued
7
With the unit lying on right
side, remove one screw from
the (1) rear of the chassis and
lift the Drive Cage Assembly
upward straight out of the
chassis
IMPORTANT: Before removing
the drive cage from the chassis,
disconnect all the drive cables
from the drives.
