3. Remove the chassis, section 5.6.
4. Remove the memory shield and, if applicable, the memory boards,
section 5.7.
5. Remove the internal power supply, section 5.9.
6. Remove the mass storage devices, section 5.10.

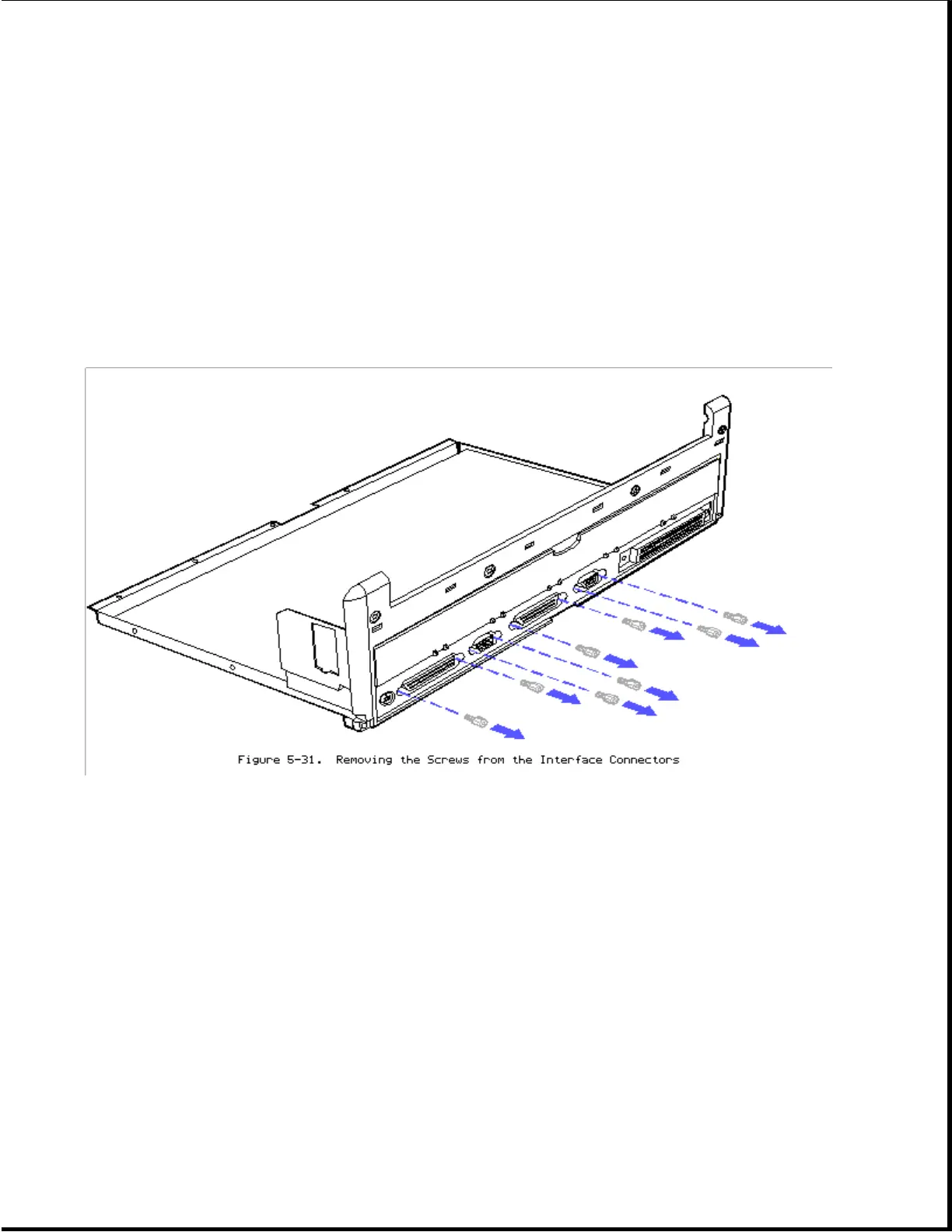

7. Use a 3/16 inch nutdriver to remove the hex screws from the rear panel
interface connectors.
8. On the COMPAQ SLT 386s/20, use a Torx T-8 screwdriver to remove the two
screws from the External Storage Module interface.
9. Use a Torx T-10 screwdriver to remove the 3/8 inch screws from the
expansion base (J101) connector.
