Chapter 6 - Jumper and Switch Information
INTRODUCTION
This chapter provides jumper and switch settings for the COMPAQ SLT 386s/20
and COMPAQ SLT/286 system boards.
The default settings shown in the tables are set for the computer as
configured by Compaq Computer Corporation. These settings need to be changed
only when the system configuration changes.
Chapter 6.1 COMPAQ SLT 386s/20 SYSTEM BOARD
The COMPAQ SLT 386s/20 system board contains one switch. Table 6-1 lists the

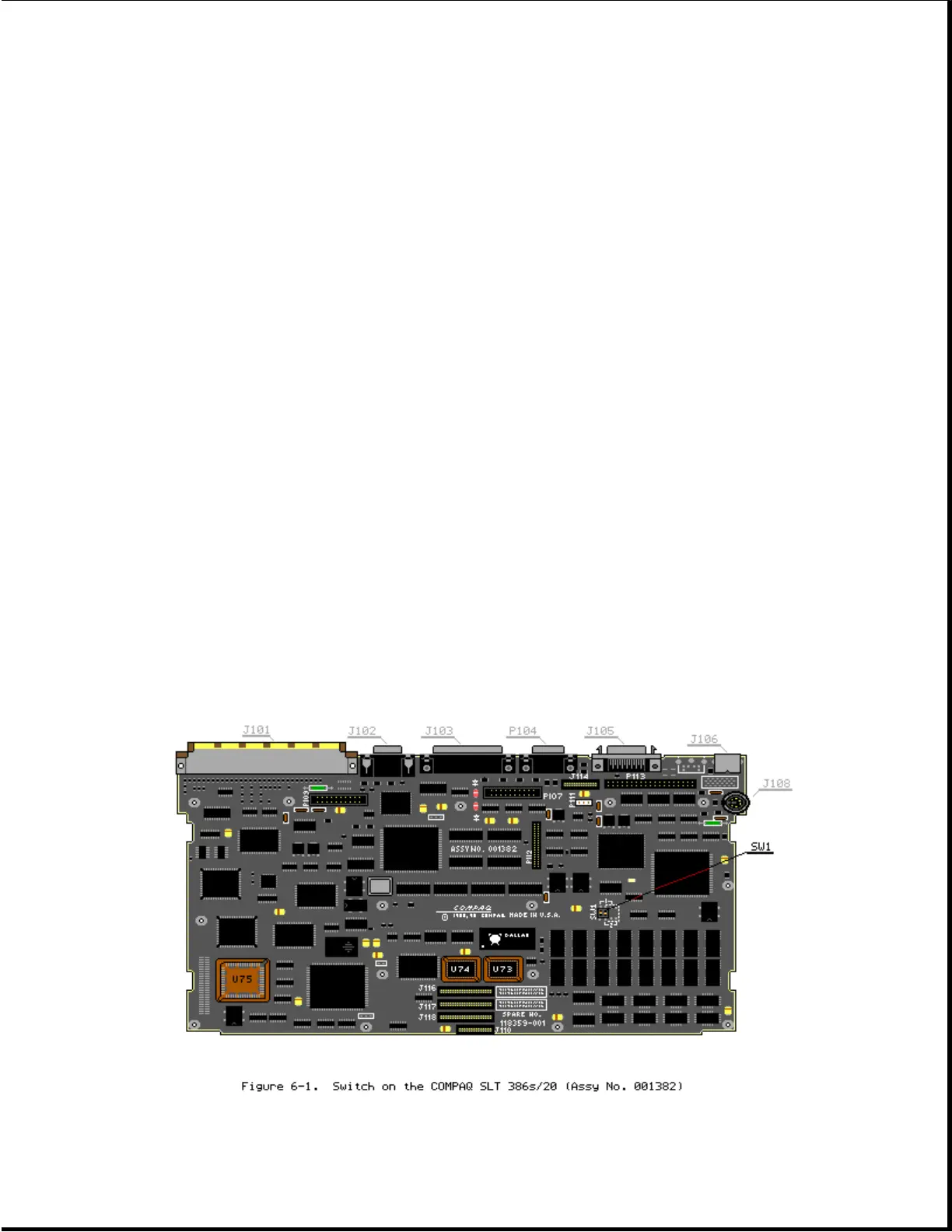

switch settings and describes the function for switch SW1. Figure 6-1 shows
the location of the switch on the system board.
Table 6-1. Switch SW1 Settings - COMPAQ SLT 386s/20 Personal Computer
==============================================================================
Switch Position Status Function
------------------------------------------------------------------------------
SW1-1 OFF Disables Enables or disables the fail safe
ON (default) Enables timer.
SW1-2 OFF (default) Enables Clears the power on password. Refer
ON Disables to "Clearing Power On Password" in
Chapter 2 for procedures.
==============================================================================
