Chapter 6.2 COMPAQ SLT/286 SYSTEM BOARD
The COMPAQ SLT/286 system boards contain one jumper. Table 6-2 lists the

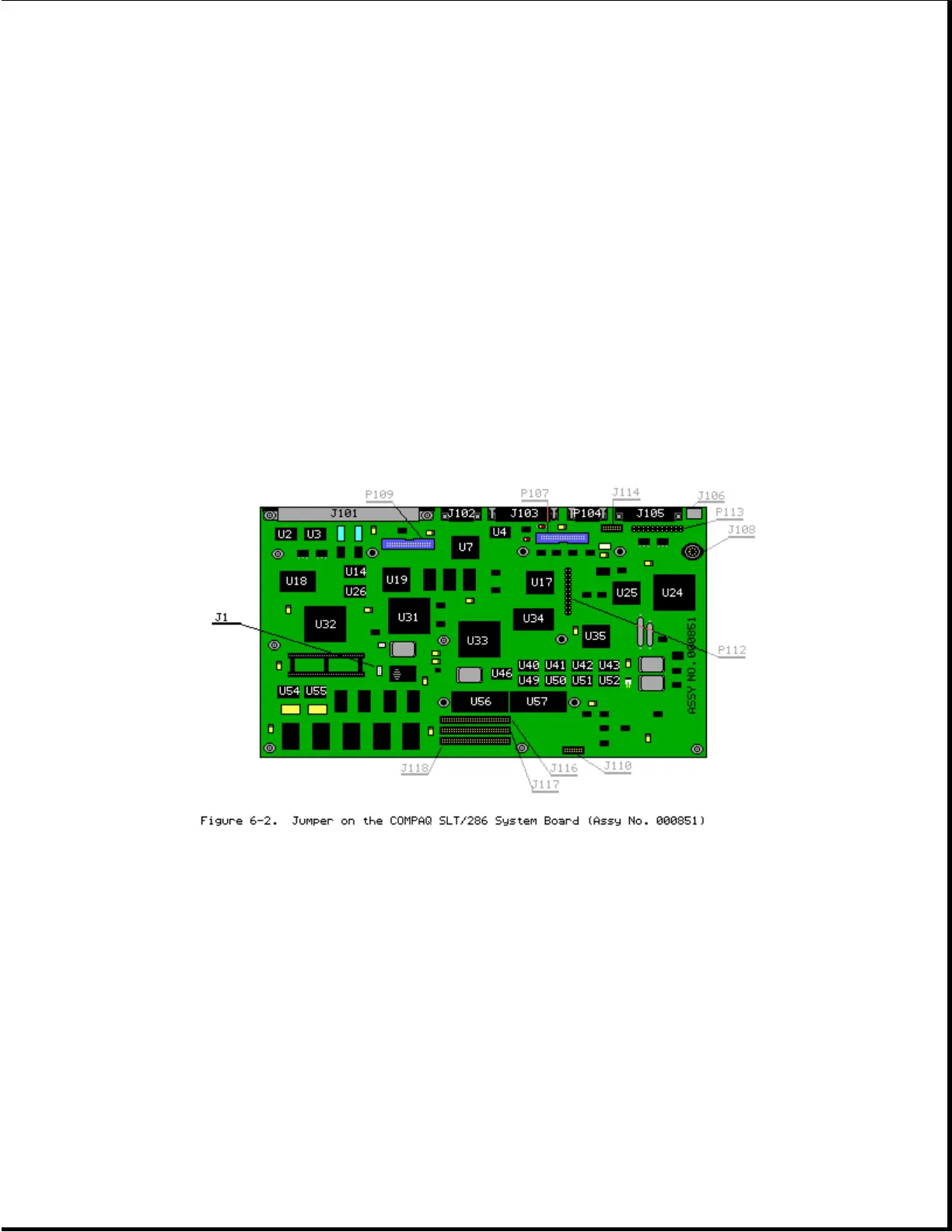

jumper positions and describes the function of jumper J1. Figure 6-2 and
Figure 6-3 show the location of the jumper on the system board.
Table 6-2. Jumper J1 Settings - COMPAQ SLT/286 Personal Computer
==============================================================================
Jumper Position Function
------------------------------------------------------------------------------
J1 1-2 Provides 8 MHz 80287 coprocessor configuration
J1 2-3 (default) Provides 12 MHz 80C287 coprocessor configuration
==============================================================================
NOTE: Jumpers E2, E3, and E4 are reserved. These jumpers must be installed
for proper operation of the system board.
