Operating the Monitor

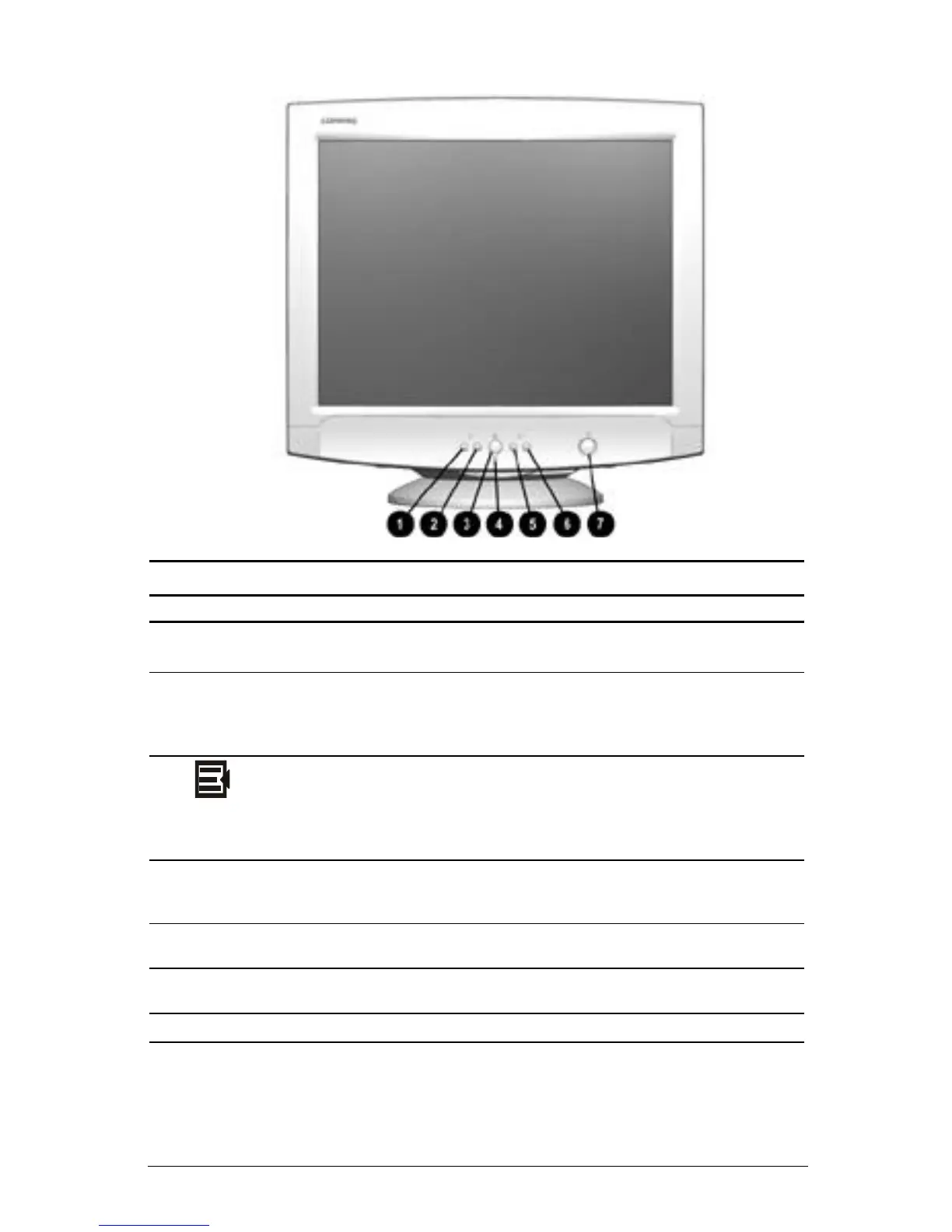

Front Panel Controls
No. Icon Control Function
1
Þ
Down Button
1. Adjusts Contrast.
2. In on-screen display, selects or adjusts the functions.
2
Ý
Up Button
1. Adjusts Contrast.
2. In on-screen display, selects or adjusts the functions.
3. When pressed simultaneously with Select button, toggles
between inputs A (BNC) and B (15-pin VGA).
3 Select Button
1. Launches on-screen display.
2. Selects function adjustments.
3. Exits menus and on-screen display.
4. When pressed simultaneously with Up button, toggles
between inputs A (BNC) and B (15-pin VGA).
4
l
Power LED
1. Green indicates monitor is turned on.
2. Yellow indicates suspend mode.
3. Amber indicates sleep mode.
5
Û
Left Button
1. Adjusts Brightness.
2. In on-screen display, selects or adjusts the functions.
6
Ü
Right Button
1. Adjusts Brightness.
2. In on-screen display, selects or adjusts the functions.
7 Â Power Switch Turns the monitor on and off.
