D–10 Maintenance and Service Guide
Display Component Recycling
14. Turn the LCD panel right-side up.

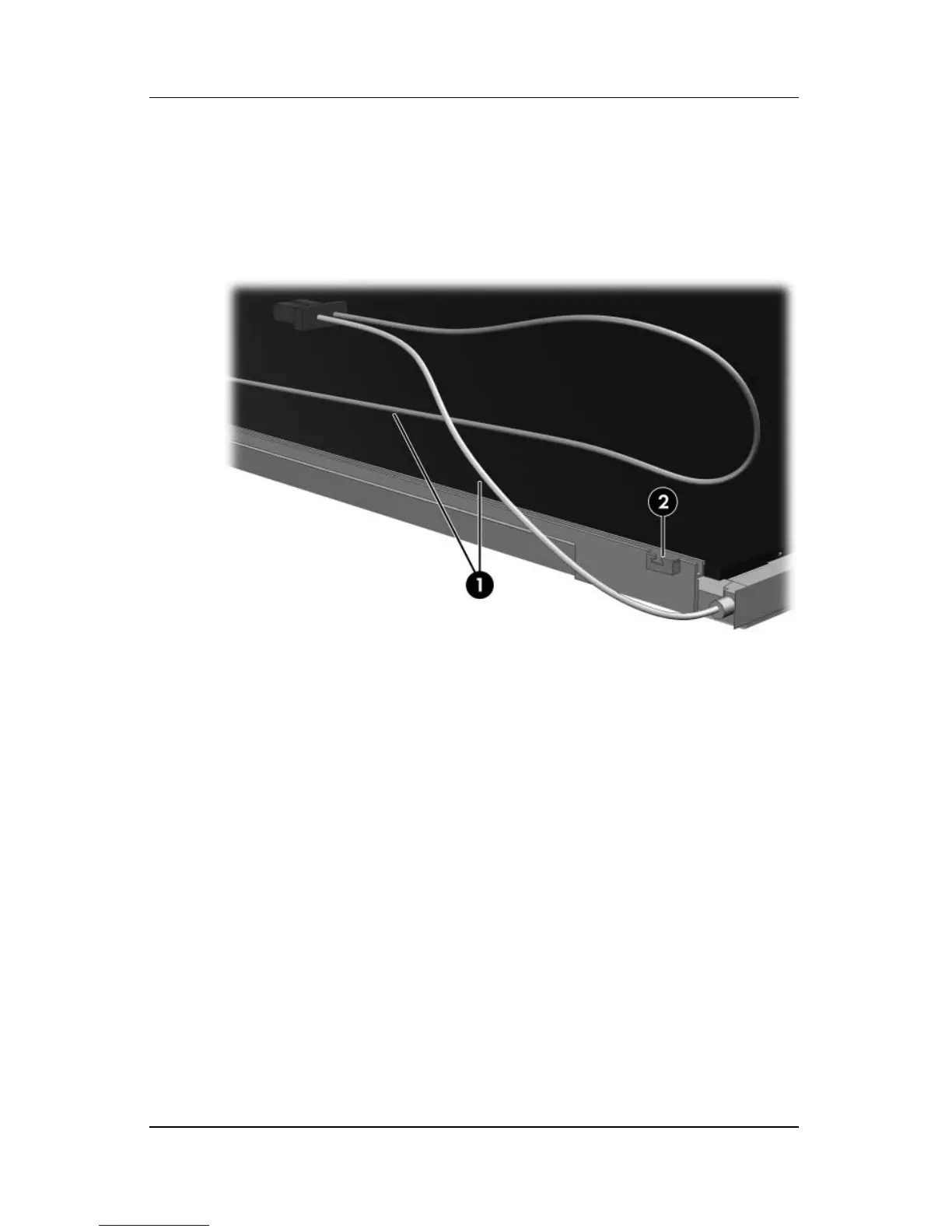

15. Remove the backlight cables 1 from the clip 2 in the
LCD panel.
Releasing the Backlight Cables
