II.2 Installation sequence
Installation of the mechanism: motor side

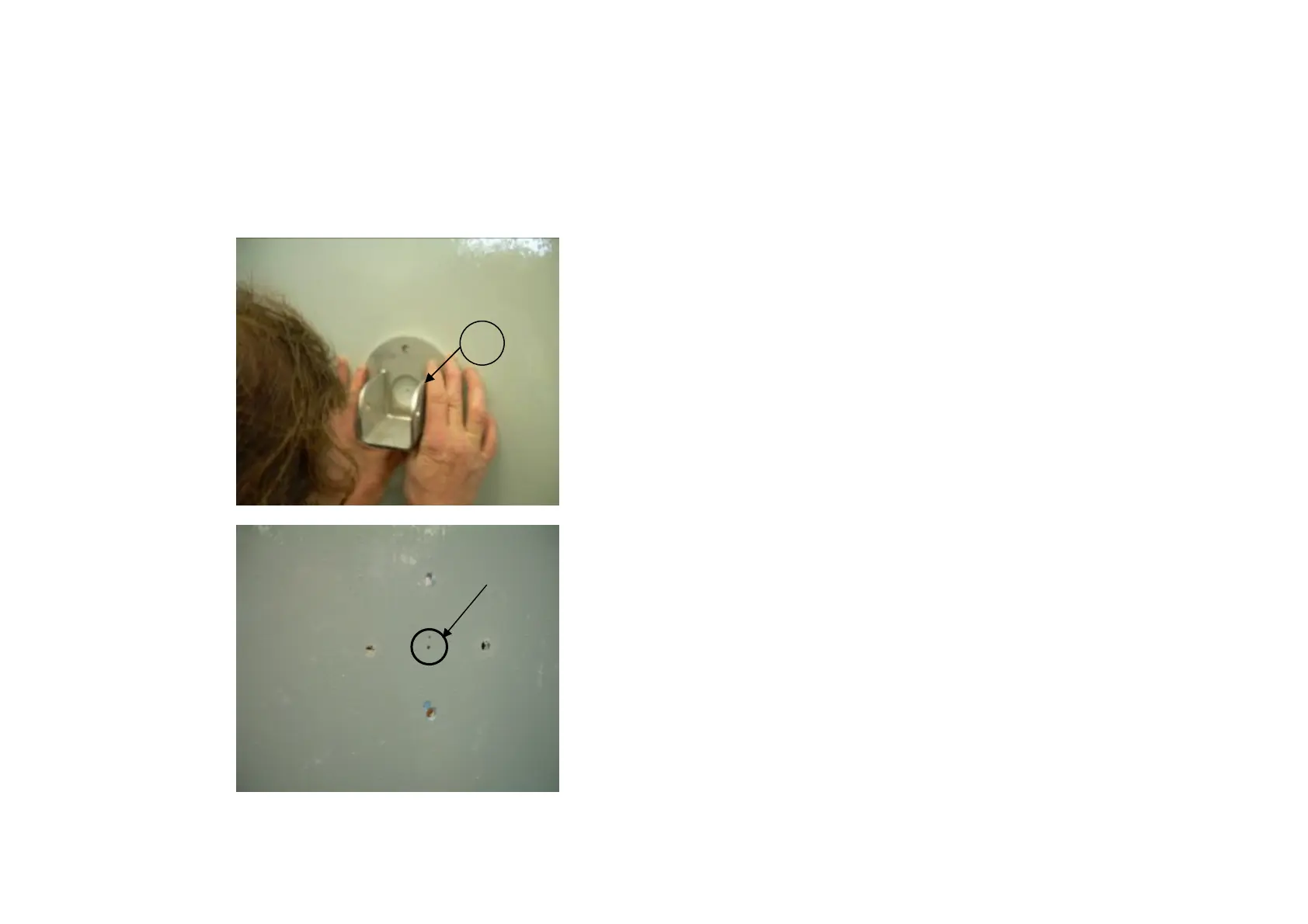

• Use the motor flange as a
template
• The center of the roller shaft
will be marked at the Compass
factory
• Mark the 4 bolt holes
• Mark the centre hole for the
motor cable
• Drill the 4 bolt holes: Ø 9mm
• Drill the center hole: Ø 35mm
9
Ø 35mm
