OPERATION
DEVICE FUNCTION
Note: The following screens are generic examples but they work in the same way regardless of
the device that you have.
A: FIRST USE
CONNECTING THE CABLES TO THE STIMULATOR
The stimulator cables plug into the 4 sockets on the front of the device.
Four cables can be connected simultaneously to the 4 channels of the device. Both the sockets
and the cables are color-coded to simplify use and facilitate identification of the different channels.

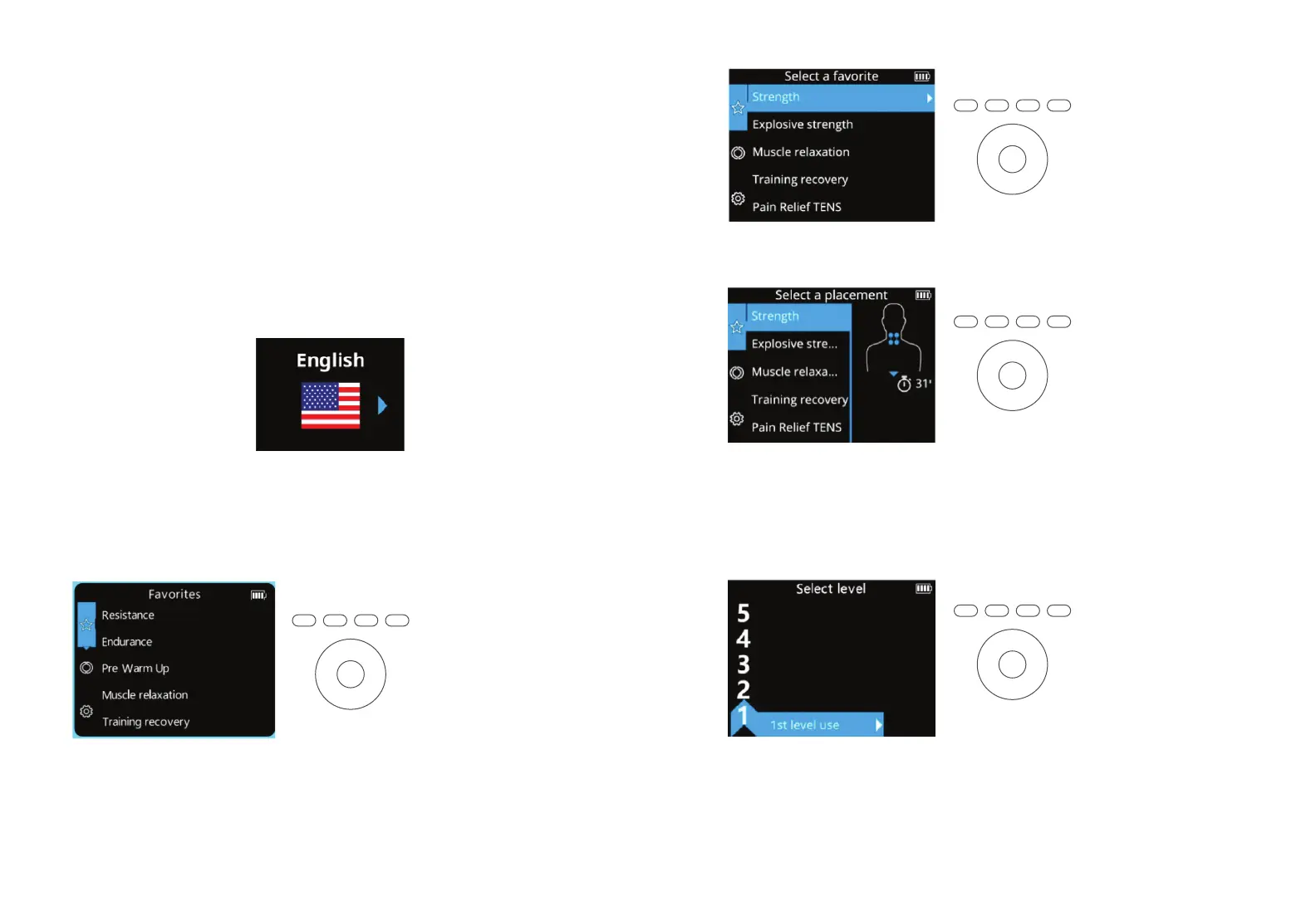

SELECTING LANGUAGE
When using the device for the first time, user should select the working language, date and time.
The default language is English. Please refer to below picture.
B: HOW TO ACCESS FAVORITES
The Favorites menu displays the last program done. You need only have one program in the
Favorites menu to become directly accessible after turning on the device.
NOTE: Programs vary depending on device.
The programs done will automatically be placed in the favorites menu. The favorites menu can
contain up to 10 programs. If new programs are done, the old ones will automatically be removed
from the list of favorites.
B B
A
A
A: Select favorites menu
B: Confirm your selection
1: SELECT A PROGRAM
2: SELECT ELECTRODE PLACEMENT
3: SELECT PROGRAM LEVEL
B BC
A
A
B BC
A
A
B BC
A
A
A. Select desired favorite
program
B. Confirm your selection
C. Return to previous step
A. Select desired electrode
placement
B. Confirm your selection
C. Return to previous step
A. Select desired level
B. Confirm your selection
C. Return to previous step
The placement of electrodes selected during the program appears. It is possible to scroll through
other electrode placements.
Note: if the level option in setting is turned off, this step would be canceled.
It is recommended to select the first level for the first time use.
