3.3 Requirements on installation facility
1500
1500
1500
1500
1500
2
1

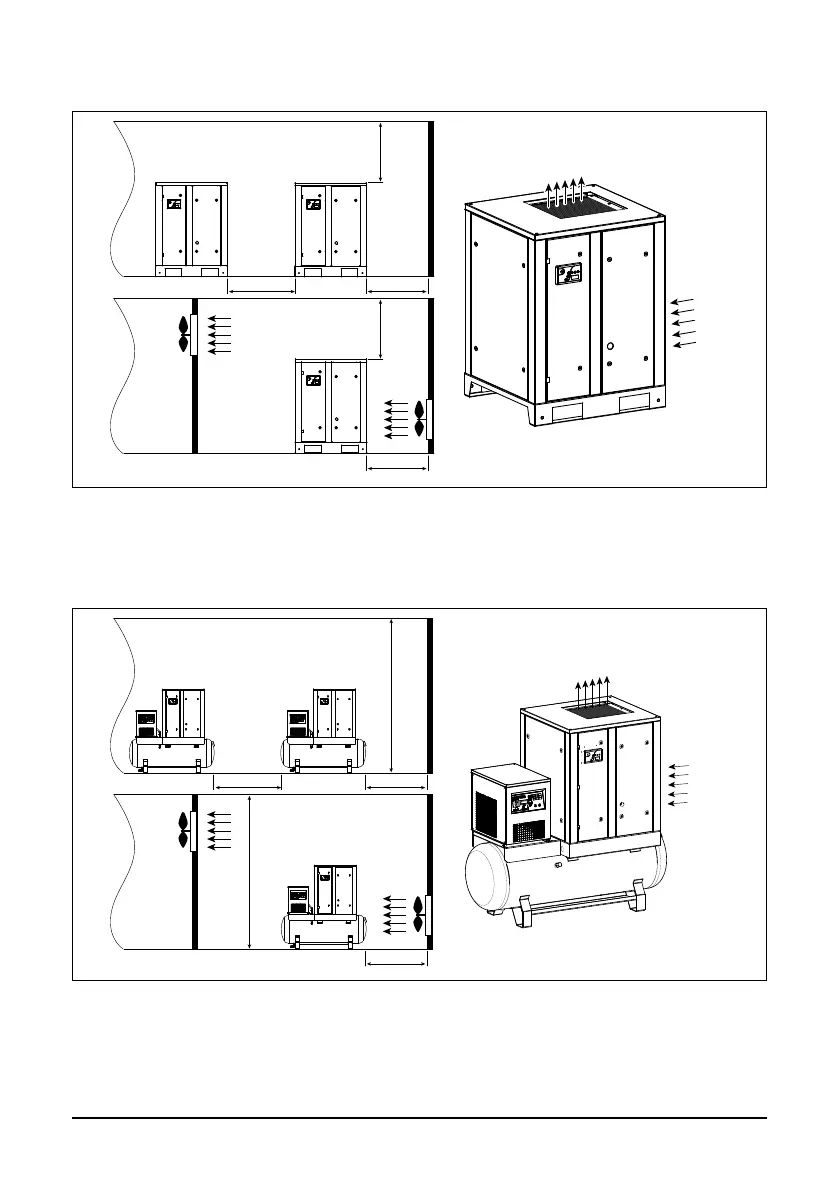

Fig. 3.5 Installation facility proposal A07.. – A22..
1500
1500
2500
1500
2500
2
1
Fig. 3.6 Installation facility proposal AR07..-AR22, ARD07..-ARD22
1. Air inow
2. Air outow
1. Air inow
2. Air outow
