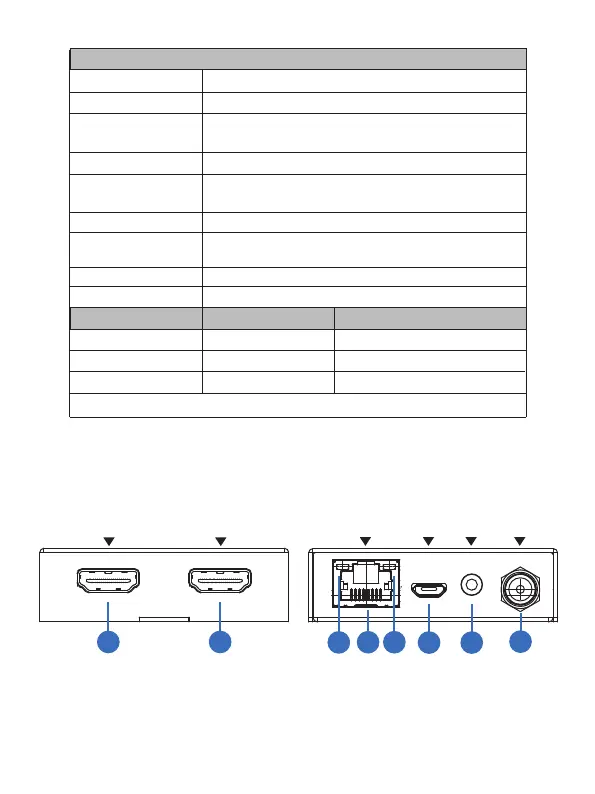

5. Operation Controls and Functions
5.1 Transmitter Panel
Power Supply
Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A
Operating
Temperature
3.84 W
Storage Temperature
32 - 104°F / 0 - 40°C
Relative Humidity
-4 - 140°F / -20 - 60°C
Power Consumption
20 - 90% RH (no condensation)
Dimensions
BlackColor
Transmitter / Receiver:
61mm [W] x 88mm [D] x 18mm [H]
Mechanical
Metal EnclosureHousing
Weight Transmitter: 160g, Receiver: 155g
CAT OUT SERVICE IR OUT DC 12V
HDMI IN
HDMI OUT
1 2
3
4
5
6 7
8
3/7
Resolution / Distance 4K60 - Feet / Meters
4K30 / 1080P - Feet / Meters
CAT5e
HDMI IN/OUT
164ft / 50M164ft / 50M
30ft / 10M10ft / 3M
The use of “Premium High Speed HDMI” cable is highly recommended.
CAT6/6a/7 197ft / 60M 230ft / 70M
