3
COMUNELLO ®Copyright 2014 - All right reserved

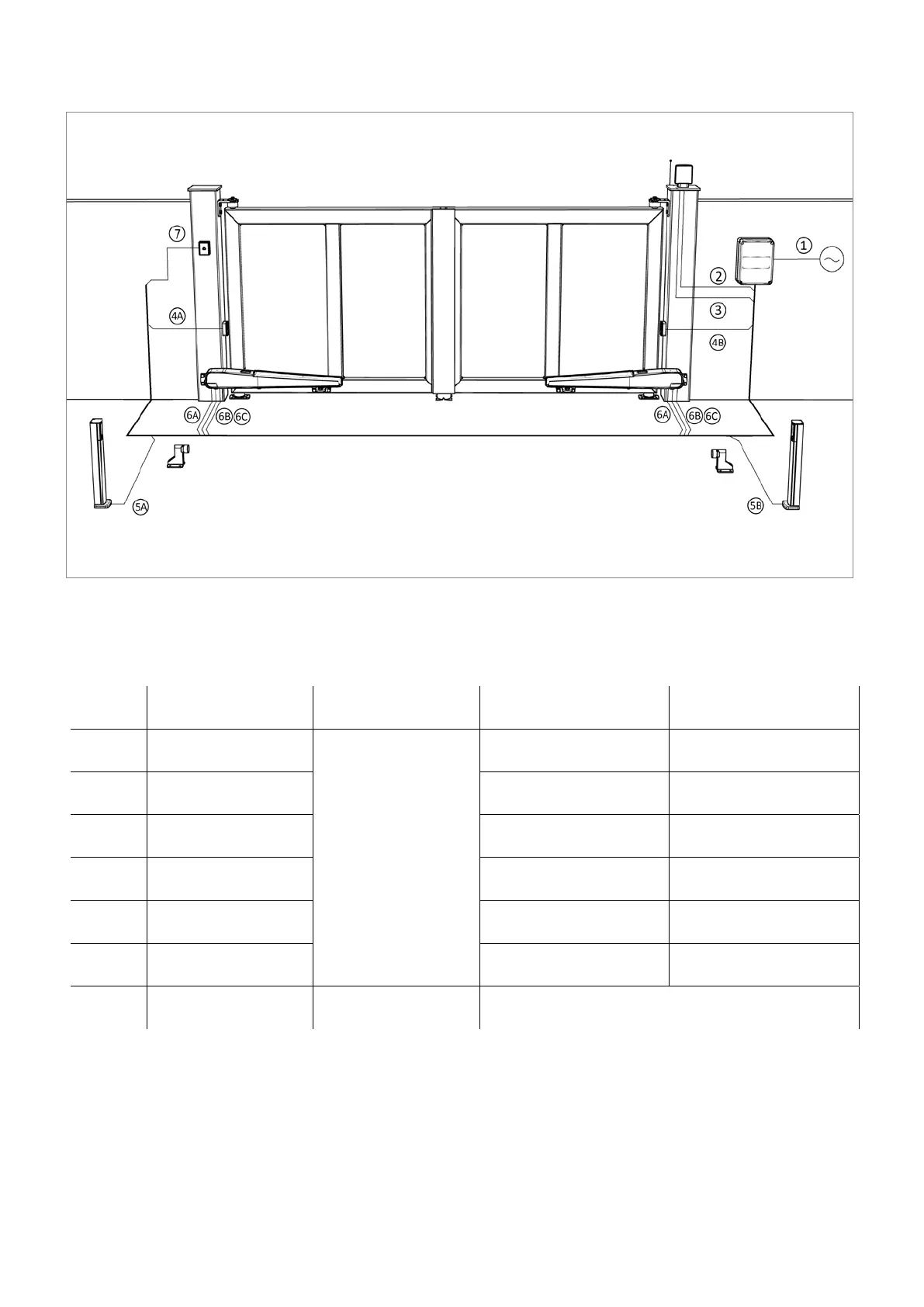

FIG. 4
FIG. 4
FIG. 4
FIG. 4
TABELLA CONNESSIONI CAVI - WIRES CONNECTION TABLE
BASIC 24V
ID Description Cable type Lenght (1m to 20m) Lenght (20m to 50m)
1 Main power supply
FROR CEI 20-22
CEI EN 50267-2-1
2x1,5mm2 2x2,5mm2
6A Motor power supply 2x2,5mm2 2x4,0mm2
2 Flashing light 2x0,5mm2 2x1,0mm2
4A , 5A Photocell TX 2x0,5mm2 2x1,0mm2
4B , 5B Photocell RX 4x0,5mm2 4x1,0mm2
7 Key selector 3x0,5mm2 3x1,0mm2
3 Antenna RG58 max 20m
