Comunello QUAD - 24V - 2M - CONDOR 500 Motor Connection; Master;Slave Wiring

11
COMUNELLO ®Copyright 2014 - All right reserved
ITALIANO

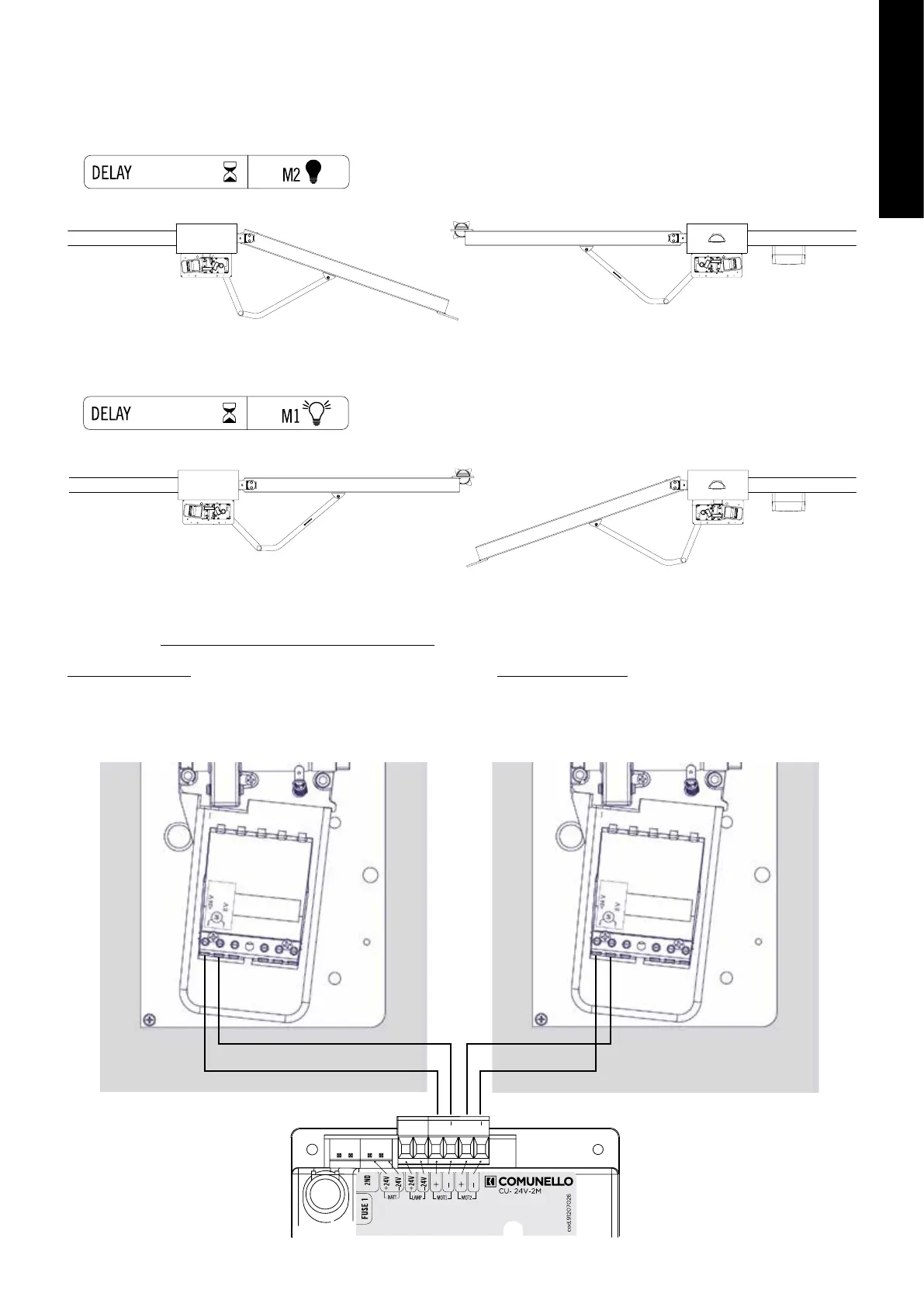

Conguration - MASTER ON THE RIGHT, SLAVE ON THE LEFT
MOTOR n.1 (on the left)
RED with M1+
BLACK with M1-
MOTOR n.2 (on the right)
[INVERTED CONFIG. COMPARED TO MOTOR n.1]
RED with M2-
BLACK with M2+
CONDOR 500 - schema di collegamento dei motori
• DELAY LED OFF = DELAY OF THE MOTOR n.2
• DELAY LED ON = DELAY OF THE MOTOR n.1
Conguration - MASTER ON THE RIGHT, SLAVE ON THE LEFT
2N D
CN1
CN5
F1
L24 L24 M1+ M1 M2+ M2
1
1
2
2
MOTOR n.1 (on the left)
24V with M1+
0V with M1-
MOTOR n.2 (on the right)
24V with M2-
0V with M2+
