Comunello QUAD - 24V - 2M - ABACUS Motor Connection; Diagram and Configuration

6
COMUNELLO ®Copyright 2014 - All right reserved
2N D
CN1
CN5
F1
L24 L24 M1+ M1 M2+ M2

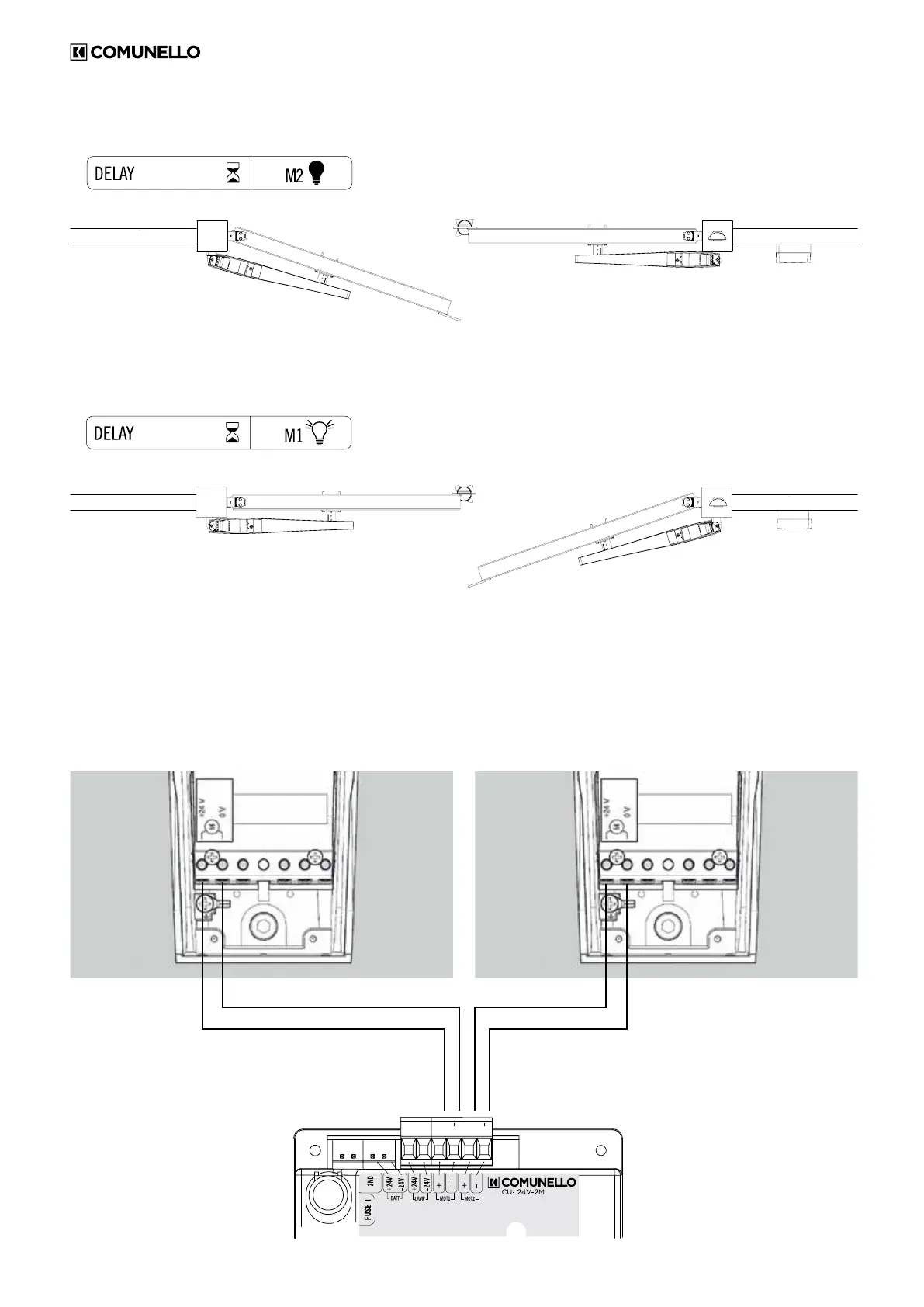

ABACUS - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
1
1
2
2
• DELAY LED ON = DELAY OF THE MOTOR n.1
Conguration:
24V with M1+
0V with M1-
24V with M2+
0V with M2-
