Comunello QUAD - 24V - 2M - CONDOR Motor Connection [2;2]; Master;Slave Wiring

9
COMUNELLO ®Copyright 2014 - All right reserved
ITALIANO
L N
1 ST
F2
2 ND
CN3
CN1
CN5
CN2
F1
CN4
FOT+
GND
ELS
ELS+
GND
PED
DS1
DS2
GND
PP
ANT
ANT+
L24 L24 M1+ M1 M2+ M2
CONDOR - [2/2]
• DELAY LED OFF = DELAY OF THE MOTOR n.2
• DELAY LED ON = DELAY OF THE MOTOR n.1
1
2
1
2

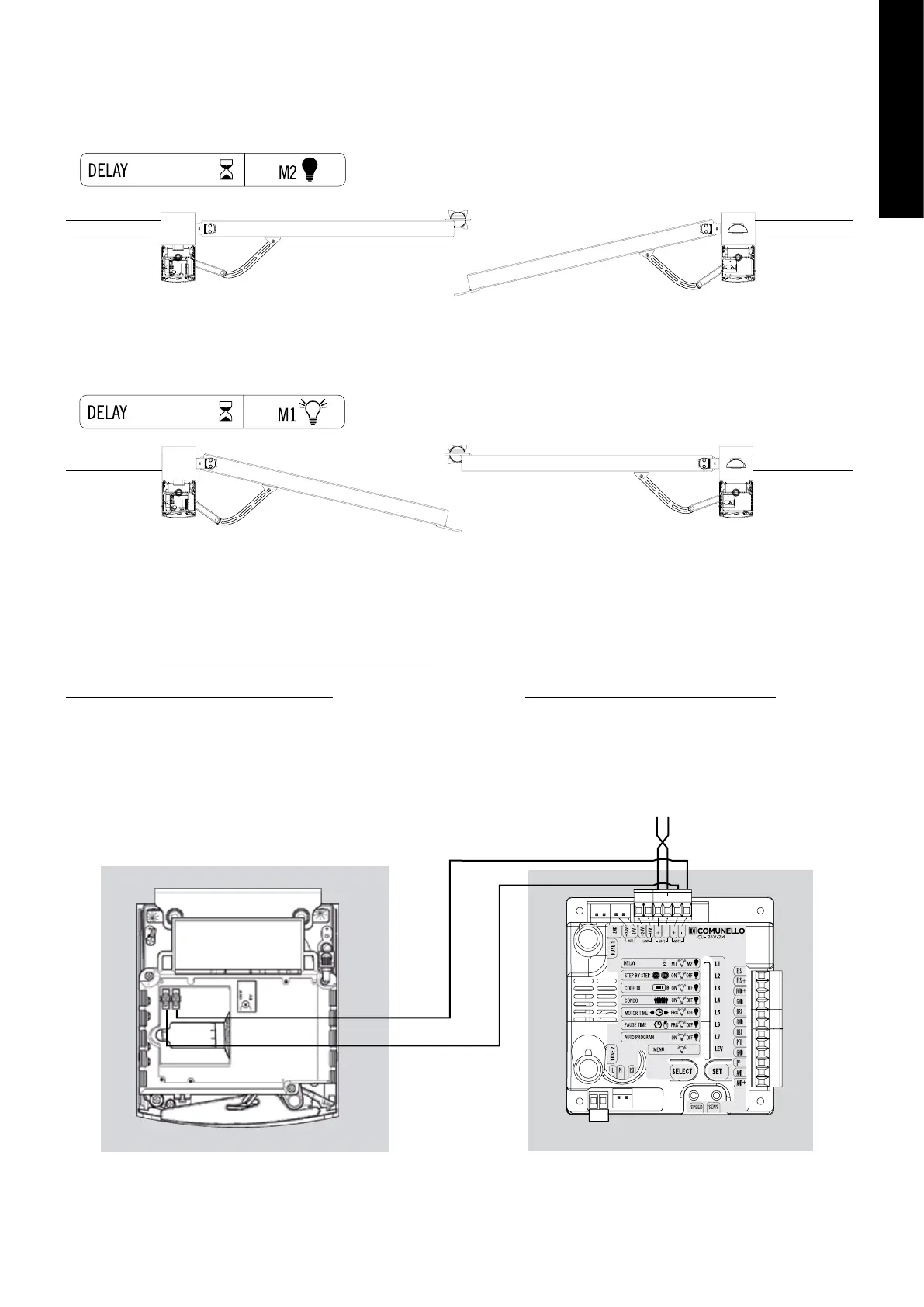

Conguration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.2 WITHOUT CONTROL UNIT (on the left)
24V with M2+
0V with M2 -
MOTOR n.1 WITH CONTROL UNIT (on the right)
[INVERT THE WIRES IN CONTROL UNIT]
RED with M1-
BLACK with M1+
Red
Black
