VXH5AHD QUICK START GUIDE
2

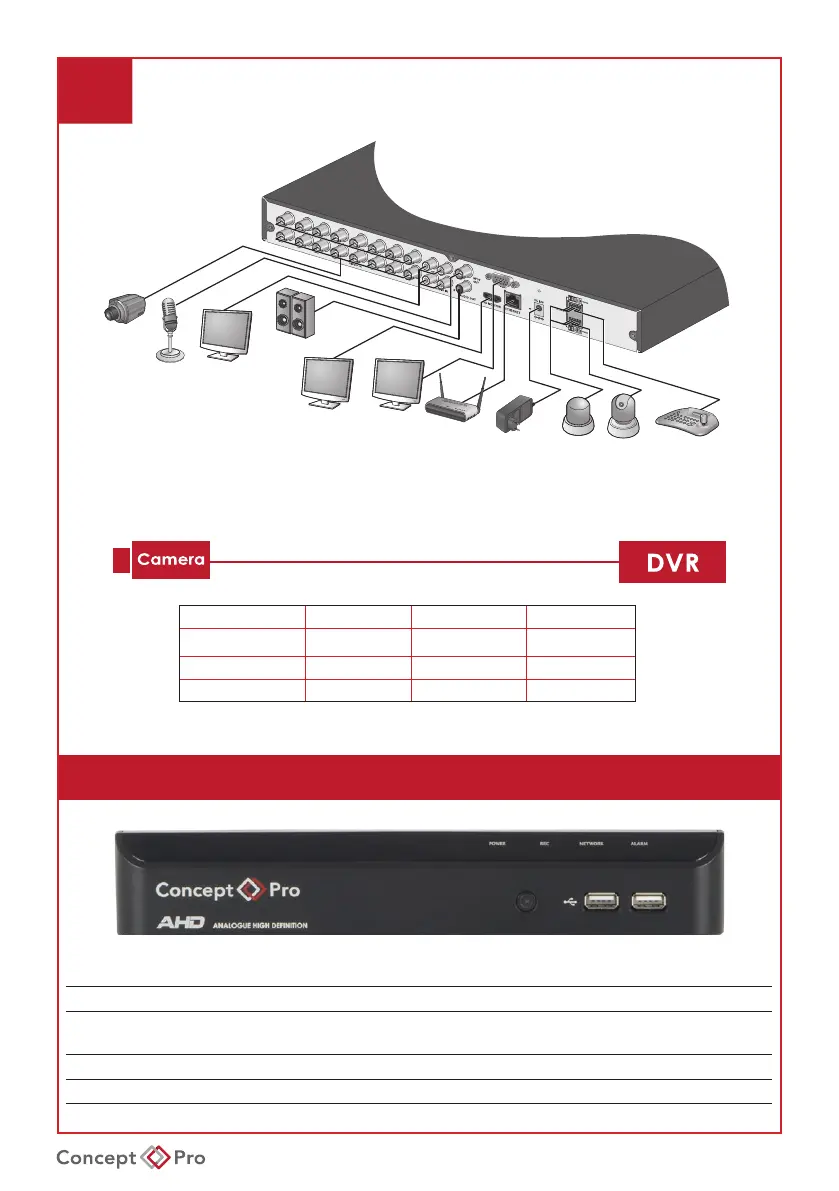

INSTALLATION
DC 12V
Power
C
amera
Sensor
Alarm
IP Router
or HUB
Control
Devices
VGA
MONITOR
SPOT
MONITOR
Speaker
MIC
HD
MONITOR
•Cablequalityanddistancemaydirectlyaectvideoquality.Consultanauthorisedinstaller.
*Approximate distances calculated using HD MasterBaluns. Actual transmission range will vary
depending on type and quality of cable and baluns.
5MP 2MP 720P
COAX (RG59) UP TO 500M UP TO 500M UP TO 500M
CAT5e UP TO 200M UP TO 305M UP TO 350M
CAT6 UP TO 200M UP TO 305M UP TO 350M
Front Panel
No. Name Description
1
IR REMOTE CONTROL
RECEIVER
Receives the control signal from included remote control.
2 USB For connecting USB devices such as a mouse or storage device.
3 STATUS LED Displays the status of Power, Recording, Network, and Alarm.
