VXH5AHD QUICK START GUIDE
2
INSTALLATION

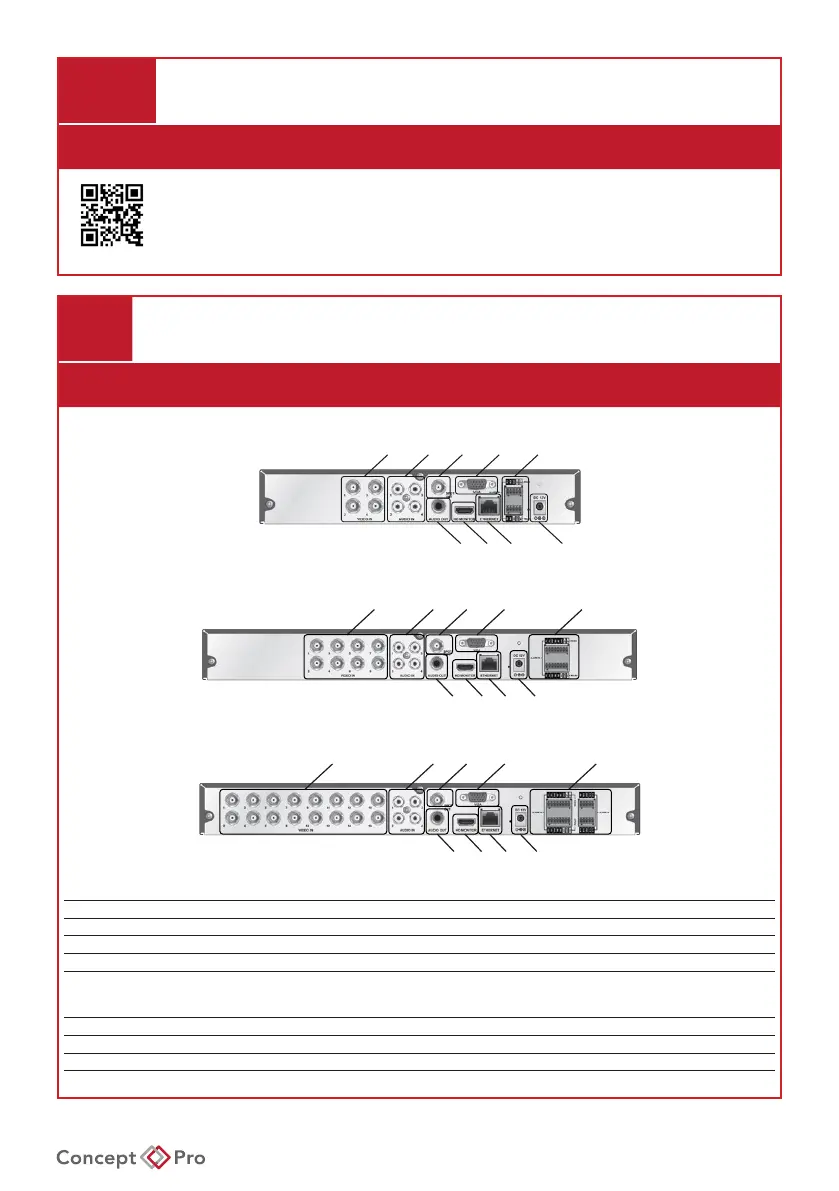

Back Panel
VXH5AHD-4
1 2 4 53
6 7 8 9
VXH5AHD-8
1 2 4 53
6 7 8 9
VXH5AHD-16
1 2 4 53
6 7 8 9
No. Name Description
1 VIDEO IN BNC analogue video input terminals for analogue cameras.
2 AUDIO IN RCA audio inputs for audio devices such as microphones.
3 SPOT OUT BNC analogue spot display output.
4 VGA VGA display output for connection to a main display monitor (Max. 1920x1080 resolution).
5
RS-485
RELAY:
ALARM IN:
Serial interface port for connecting PTZ camera or keyboard.
Alarm relay output terminal (N/O, N/C, COM).
Alarm input terminals (IN1, IN2, GND).
6 AUDIO OUT RCA audio output for audio device such as speakers.
7 HD MONITOR HDMI display output for connection to a main display monitor (Max. 1920x1080 resolution).
8 ETHERNET RJ45 network port for connection to the Internet, router, or hub.
9 DC12V DC12V power input port for use with included power adapter.
1
WHAT’S IN THE BOX?
Packaging Contents
Digital Video Recorder x1 Quick Start Guide x1 DC12V Power Adapter x1
AC Power Cord x1 (8/16CH) 5-Pin Terminal Block x2 USB Mouse x1
Remote Control x1 HDD Mounting Screws x25 HDD Mounting Gaskets x5 (x10)
Remote Control Batteries x2 Cable Clamp x1 Cable Clamp Screws x2
8-Pin Terminal Block x2 (8/16CH)
