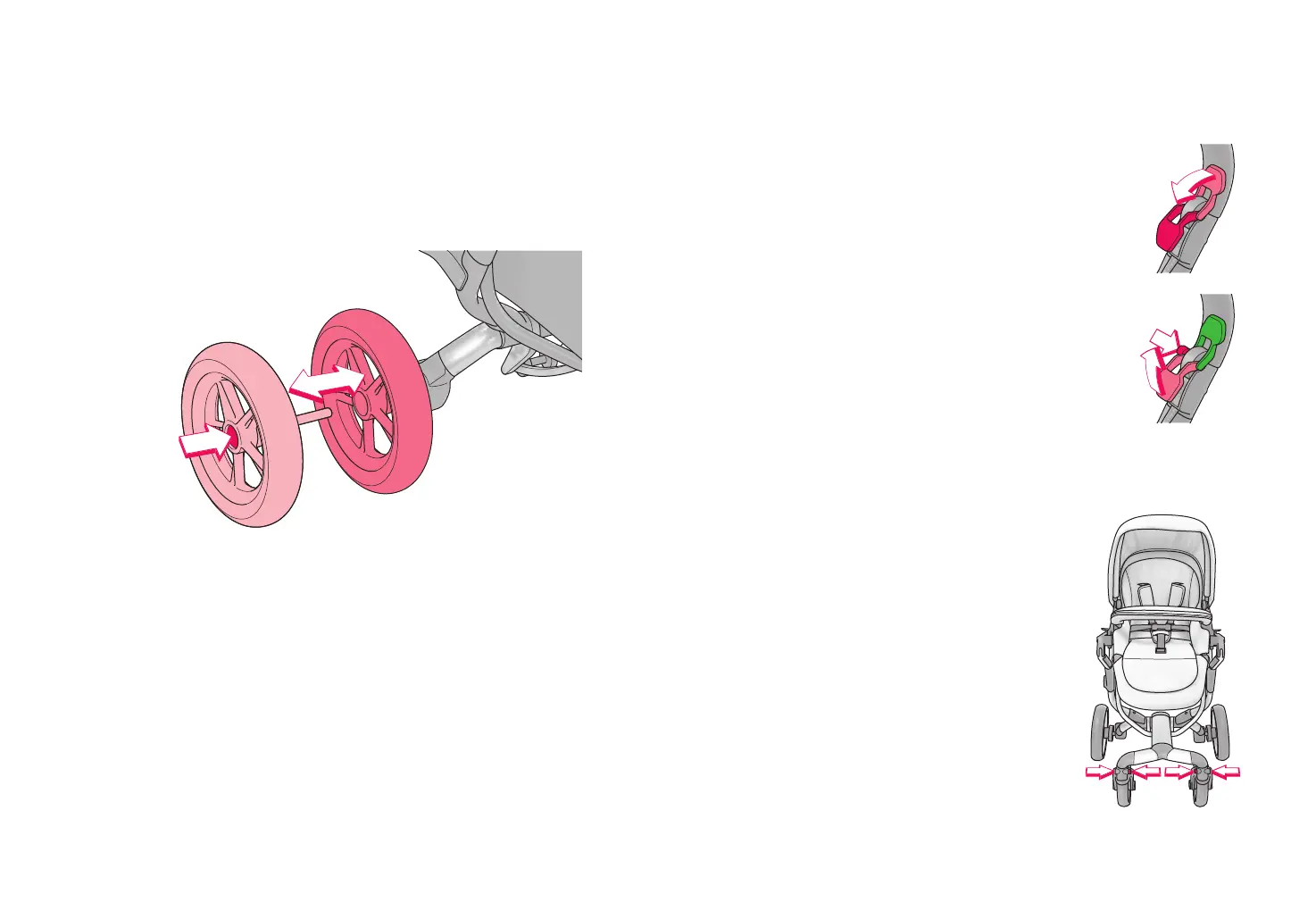

Toattachthebackwheel,pressandholdthepushbuttonasyoupush
thewheelontotheCONCORDNEOaxle,andletitclickaudiblyinto
place.
31
Toremoveabackwheel,pressandholdthepushbutton(19) and pull the
wheelofftheaxle.
_ ATTACHING AND REMOVING THE BACK WHEELS
30
_ LOCKING THE FRONT WHEELS
Tolocatethefrontwheelsofthe
CONCORD NEO, align the front
wheelstowardsthebackandslide
the locking button (09) from the
insideoutwards.
Toreleasethewheels,slidethe
locking button from the outside
inwards.
_ USING THE PARKING BRAKE
Push the operating lever (13) on the right of the
handlebar (11)downtoactivatetheparkingbrake
(10)oftheCONCORDNEO.
Press the release button and move the operating
lever (13) on the right of the handle bar (11)upward
toreleasetheparkingbrake.
