_ ATTACHING AND REMOVING THE SEAT FRAME
(PROFIX SYSTEM)
TheCONCORDNEOisequippedwithProFixadapters(16).These
adapters are used to attach the CONCORD NEO seat frame to the
chassis.Youcansecuretheseatframetothechassissothatitiseither
frontorrearfacing.Todothis,inserttheseatframefromaboveintothe
receiversonthechassisandletitclickaudiblyintoplace.
33
WARNING
• Neverseatyourchildintheseatframeuntilafteryouhavesecuredthe
 frametothechassis.
• BeforeusingtheCONCORDNEO,ensurethatallfixing
 mechanismsandfasteningsareproperlylockedinpositionandclosed.
• Neverremovetheseatframefromthechassiswhileachildissittingin
 it.

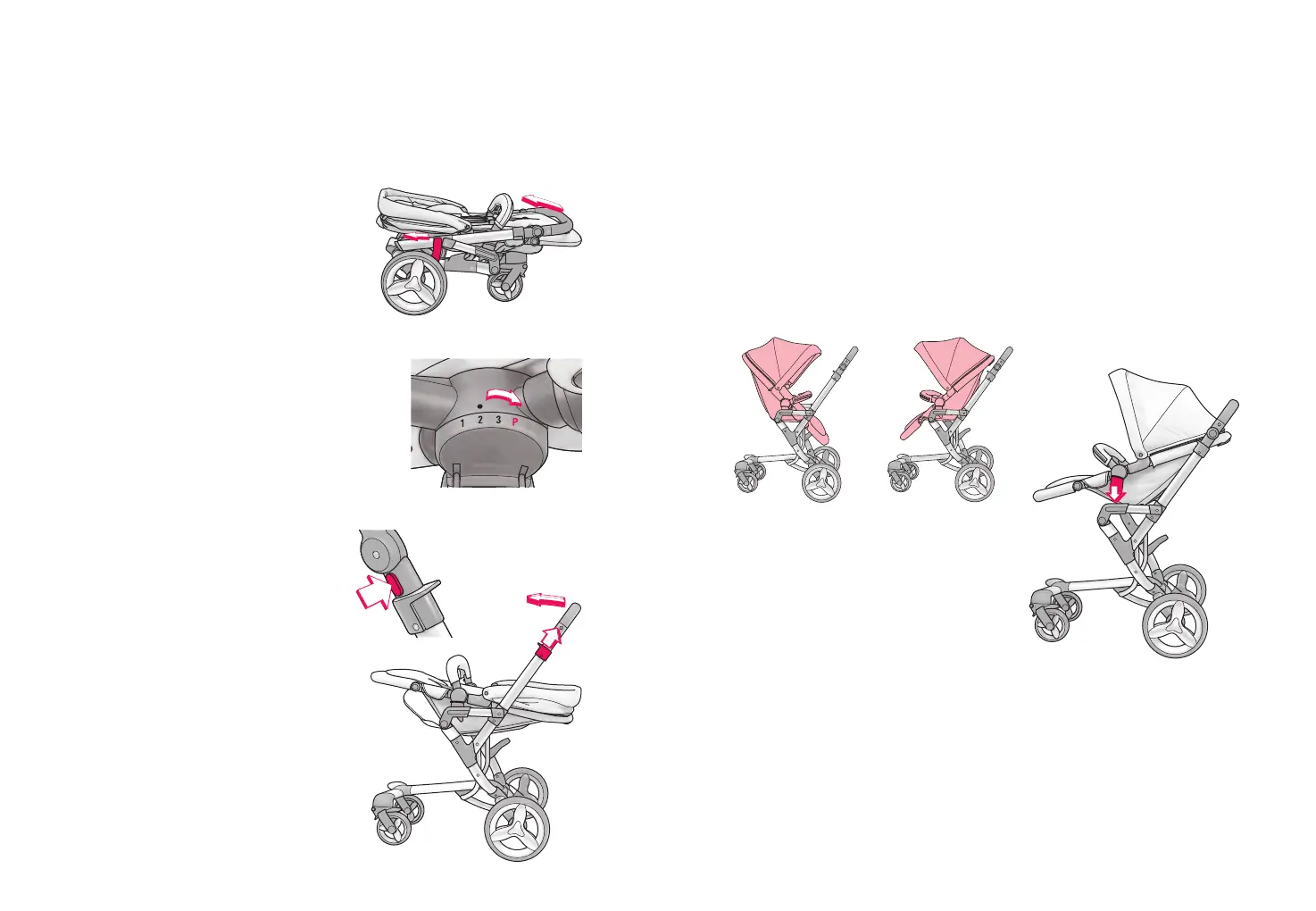

_ UNFOLDING AND FOLDING
32
To set up the CONCORD NEO,
first release the transport lock
(18)bypressingitdownwardsor
backwards.Thenpullthehandlebar
(11)upwardsuntilyouhearit
engagewithaclearclick.
TofolddowntheCONCORDNEO,
first adjust the seat angle on the
seat frame (03) to position P (see
ADJUSTINGTHESEATANGLE).
The unlocking levers are located
ontheleftandrightofthehandle.
To unlock, press and hold the
safety button on the inside of the
left unlocking lever (14) and pull
bothunlockingleversupwards.
Nowpushthehandlebar
forwards/downuntilthetransport
lockingdeviceengages.
