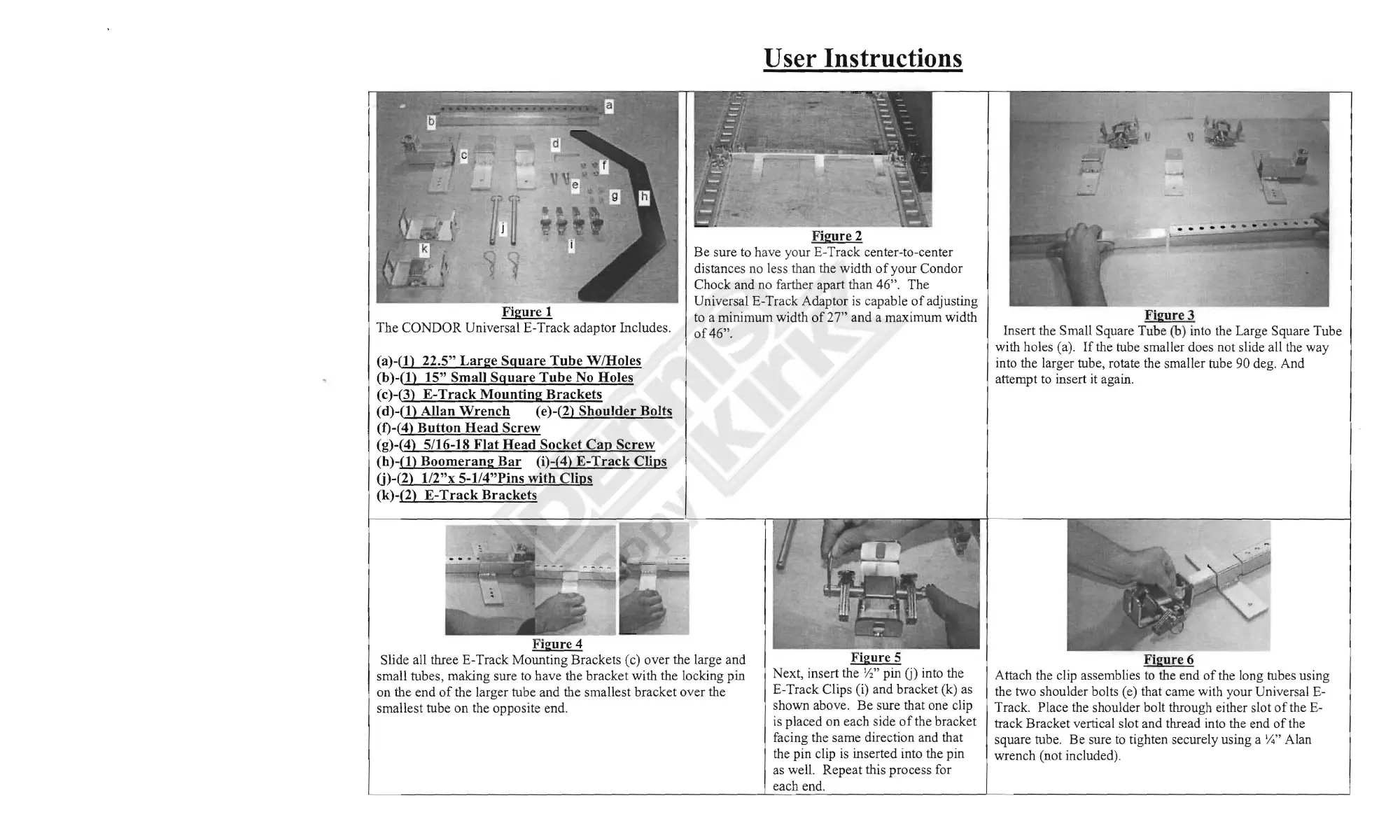

User Instructions
Figure 2
Be sure
to
have your E-Track center-to-center
distances
no
less than the width
of
your Condor
Chock and
no
farther apart than 46". The
Universal E-Track Adaptor
is
capable
of
adjusting
Figure 1
The CONDOR Universal E-Track adaptor Includes.
(a)-(1) 22.5"
Large
Square
Tube
WlHoles
(b)-(1)
15"
Small
Square
Tube
No Holes
(c)-(3)
E-Track
Mounting
Brackets
(d)-(l)
Allan
Wrench
(e)-(2)
Shoulder
Bolts
(0-(4)
Button
Head
Screw
(g)-(4) 5/16-18
Flat
Head
Socket
Cap
Screw
(b)-(1)
Boomerang
Bar
(i)-( 4)
E-
Track
Clips
(j)-(2) 1I2"x 5-1I4"Pins with Clips
(k)-(2) E-
Track
Brackets
Figure 4
Figure
3.
Insert the Small Square Tube (b) into the Large Square Tube
with holes (a).
If
the tube smaller does not slide all
the
way
into the larger tube, rotate the smaller tube
90 deg. And
attempt
to
insert it again.
Figure 6
Attach the clip assemblies
to
the end
of
the long tubes using
the two shoulder bolts (e) that came with your Universal
E-
Track. Place the shoulder bolt through either slot
of
the
E-
track Bracket vertical slot and thread into the end
of
the
square tube. Be sure
to
tighten securely using a
v..
" Alan
wrench (not inclUded).
to
a minimum width
of
27" and a maximum width
of
46".
Slide all three E-Track Mounting Brackets (c) over the large and
small tubes, making sure
to
have the bracket with the locking pin
on the end
of
the larger tube and the smallest bracket over the
smallest tube on the opposite end.
Figure 5
Next, insert the
v,
" pin (j) into the
E-Track Clips (i) and bracket (k) as
shown above. Be sure that one clip
is
placed on each side
of
the bracket
facing the same direction and that
the pin clip
is
inserted into the pin
as
well. Repeat this process for
each end.
