5.3.2 Wall mounting
Conergy IPG string inverter series inverters are intended to
be wall mounted. In order to facilitate installation they are
supplied with a wall bracket, a drilling template and a basic
installation equipment pack with wall plugs and screws.
For wall mounting you will need
| wall bracket,
| drill template,
| wall plugs and screws from the basic installation equipment
pack,
| drill bit (8 mm),
| appropriate open-ended spanner.

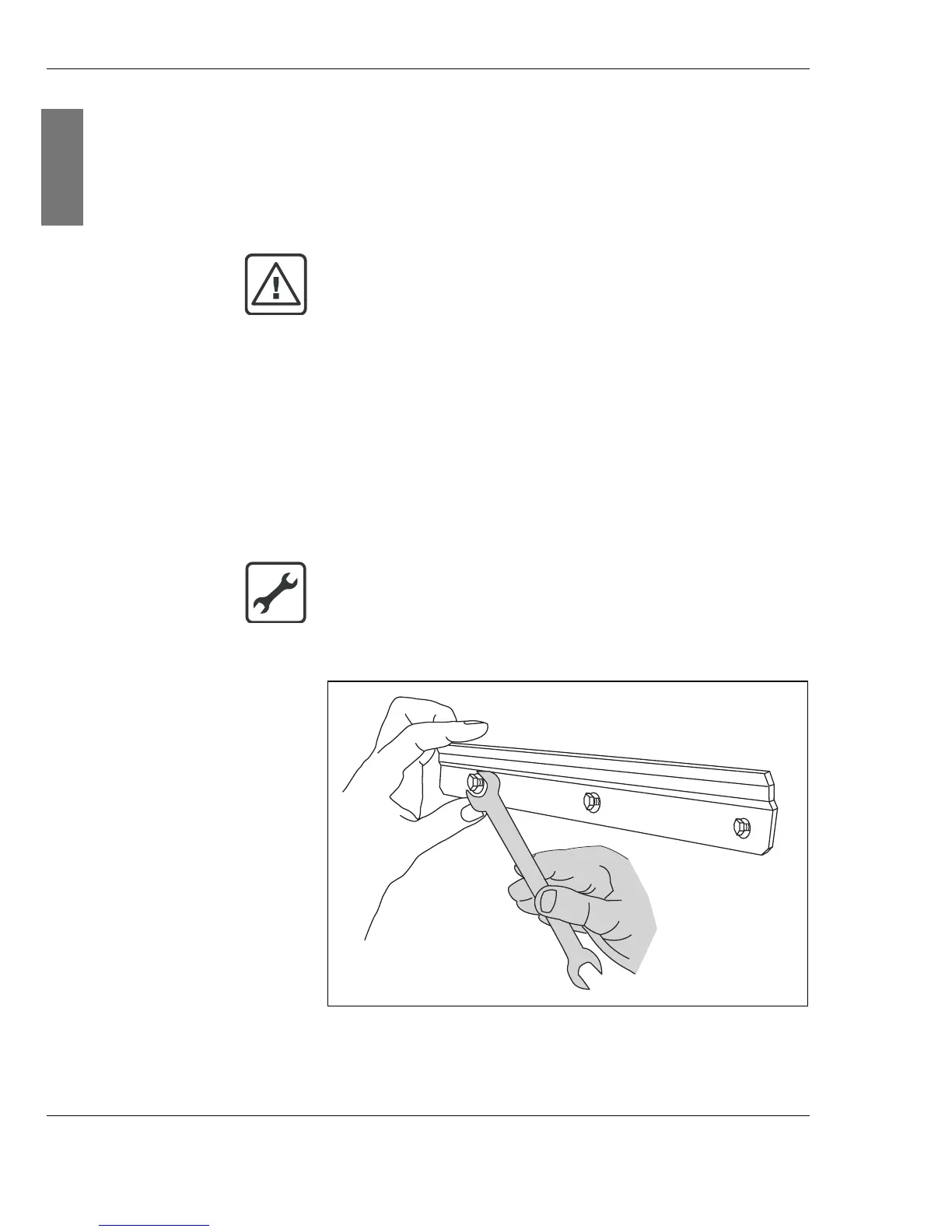

Fig. 5-3: Wall bracket installation
CAUTION!
Top-heaviness
| Take the considerable top-heaviness of the device into
consideration during installation.
Wall mounting
1. Drill the holes in accordance with the drilling template
supplied.
2. Screw the wall bracket firmly in place.
