4 0 Instruc tio n m anual C o n e r g y IP G s t r in g in v e r t e r s e r ie s
6 In s t a lla t io n a n d c o m m is s io n in g
ENGLISH
8. Connect the mains plug (1) into the socket (2) of the
Conergy IPG series string inverter.

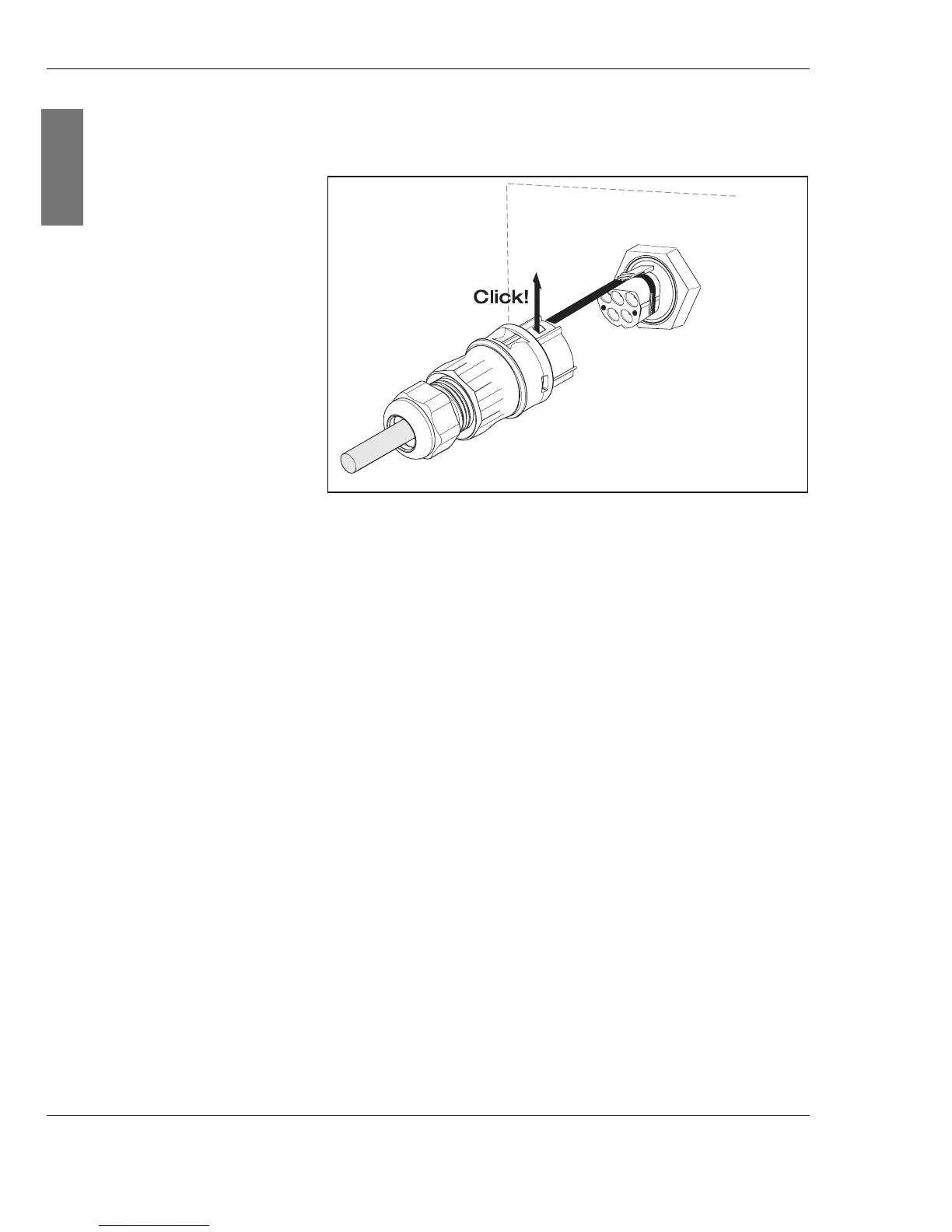

Fig. 6-7: Connecting the mains plug to the socket
A clicking sound confirms that the components are correctly
connected.
6.5 Connecting the solar system
The solar system connections are made using MC4
connector plugs and sockets. The string inverter is equipped
for 2 photovoltaic strings. If you want to connect more
photovoltaic strings, use Multi-Contact branch connector
plugs and sockets. Note the specifications of the string
inverter.
The MC4 connector plugs and sockets are intended for a
cable section of 4 to 6 mm
2
and an average cable section of
5.5 to 9 mm. To connect the solar system to the inverter you
can use pre-assembled cables or crimp the cables to the
connector plugs and sockets.
If you use pre-assembled cables, you can by-pass the next
stage and connect the cables directly to the string inverter
plugs and sockets (see Fig. 6-12, page 44).
(1)
(2)
