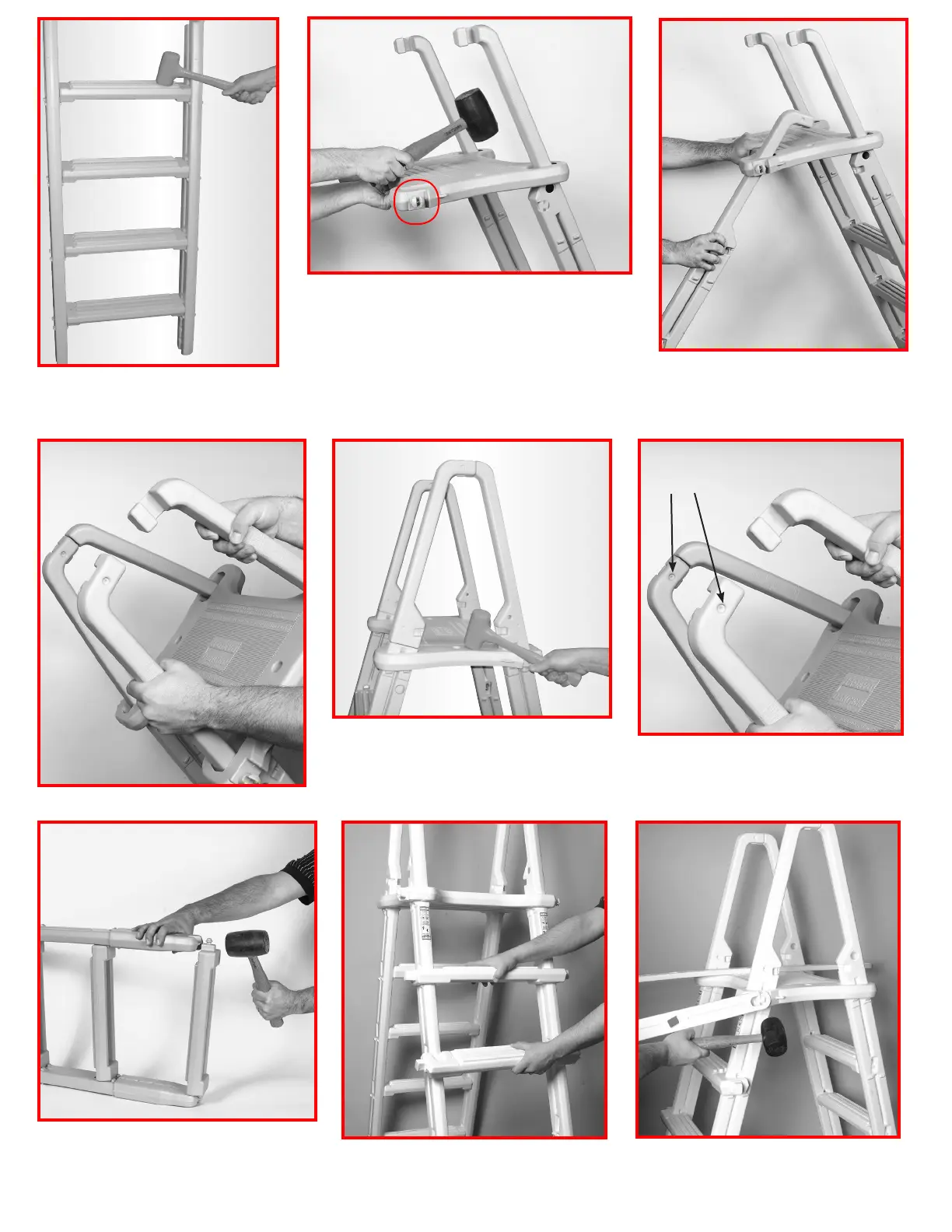

9.
With the ladder standing up, tap the
treads all the way down until seated
in the keyhole slots
Position the tread connector as shown,
with the padlock hole facing upward, and
tap it over the round knob. Repeat for the
opposite tread connector.
17.
16.
Position the four “swing up” treads
onto the ladder legs as shown.
15.
Attach the two remaining standard
treads to the extension boots (or directly
to the ends of the ladder legs if installing
on a 48” tall pool).
13.
Tap the platform down until fully seated
on the lugs as shown.
Connect the top of the handrails together.
12.
14.
Using a #10 x 1-1/4” screw fasten the
upper ends of the handrails together
as shown. Repeat for opposite side.
Insert screws here
11.
Slip the other two ladder legs
through the openings of the platform
until they engage the other ladder
legs as shown in next photo.
10.
Making sure that the “swing-up” side of the
platform is facing away from the “inside” ladder
section, as shown, slip the openings of the
platform over the upper ends of the ladder
legs. Using a mallet or hammer tap the platform
down until it is fully seated onto the “nubs” of
the ladder legs. Liquid soap or lubricant will
help the parts slide together.
4
