If you are assembling this unit for use with an
enclosure kit or SIG system refer to the instructions supplied with
the kit. Do not attach the handrails to the posts as described below.
STOP!
If you are assembling this unit for use with an
enclosure kit or SIG system do not attach the mounting brackets.
Affix the “No diving” labels as indicated in step 9 below and
continue to step 10.
STOP!
Note:
40 lbs.
of sand
required!
Pour
sand into
funnel.
Pour
sand into
funnel.
Spray the inside opening of
the mounting brackets with
liquid soap or spray
lubricant and slide a
mounting bracket over each
of the two higher handrail
posts so that they extend
out away from the steps.
Affix the two “No jumping –
No diving” stickers to the
upper end of one of the
handrail posts, one facing
the pool and one facing
away from the pool.
Spray the ends of the
handrails with liquid
soap or spray
lubricant and slip the
ends of the handrails
into the open ends of
the posts until they
are fully seated.
Secure in place using
one #10 x 1-1/4”
screw per post.
Carefully place the assembled unit into the pool and tip it 45°
to the left, right and forward to fill steps with water. Repeat if
steps continue to float
Step 7

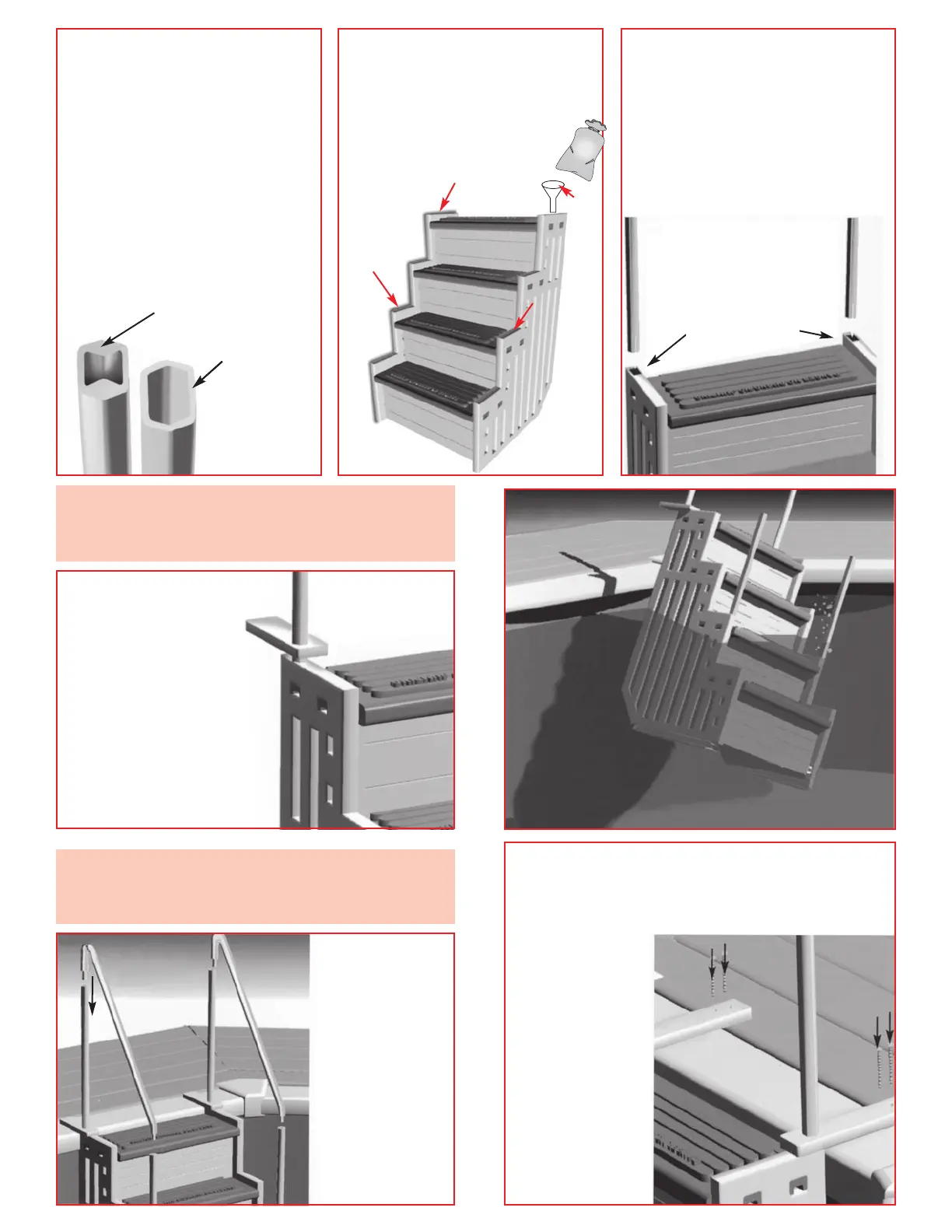

Place the assembled unit on
the deck near the pool. Note
that there are two sets of
handrail posts-one set 36-1/4”
long and one set 43-1/2” long.
Also note that the inside ends
of each handrail post are
formed differently - the “top”
end is H-shaped inside to
accept the ends of the
handrails and the opposite
end is the “plain end” (the end
to be inserted into the side
panels). Spray the “plain ends”
of all four handrail posts with
liquid soap or spray lubricant.
Top End – accepts the
ends of handrails..
Plain End – coat outside
of end with liquid soap
or spray lubricant.
Step 8
Step 9
Step 11
Step 10
Side 8a.
IMPORTANT: To prevent floating
you
MUST
do the following: Pour
about 10 pounds of dry sand into
each of the four openings indicated
above. Shake unit to distribute the
sand evenly. Adding water may also
help to distribute the sand.
Fasten the long Handrail
posts to the side panels
with one #10 x 1-1/4” screw
per post approximately
one inch (1”) below the
mouth of the hole in which
the post is inserted into
the side panel.
Insert the short posts into the
Insert the short posts into the
lower holes of the side panel to
lower holes of the side panel to
the line indicated on the post.
the line indicated on the post.
Fasten with screw
Insert the long Handrail posts
into the upper holes making
certain that ends marked “top”
are pointing up.
Slide mounting
brackets onto posts.
Two people are needed
for this step
Fasten with
Screw to
secure.
Position the unit, between upright posts of the
pool, so that the handrail posts are as close as
possible to the pool top seat. Slide the mounting brackets down until
they reach the deck surface. Fasten to the deck surface by drilling two
1/8” pilot holes, using the preformed holes in the mounting brackets as
guides. If the bracket is
not long enough to reach
the deck surface it will be
necessary to extend that
part of the deck surface
so that the brackets can
be fastened down.
Secure with two #10 x
1-1/4” screws per
bracket. After fastening
the unit to the deck
secure the brackets to
the handrail posts using
one #10 x 1-1/4” screw
per bracket.
Note: After assembly you
will have two extra #10 x
1-1/4” screws.
Step 12
