UNIWORLD Series M/UNIWORLD-M/E ed. 01 2020
WWW.CONFLOW.IT Page 16

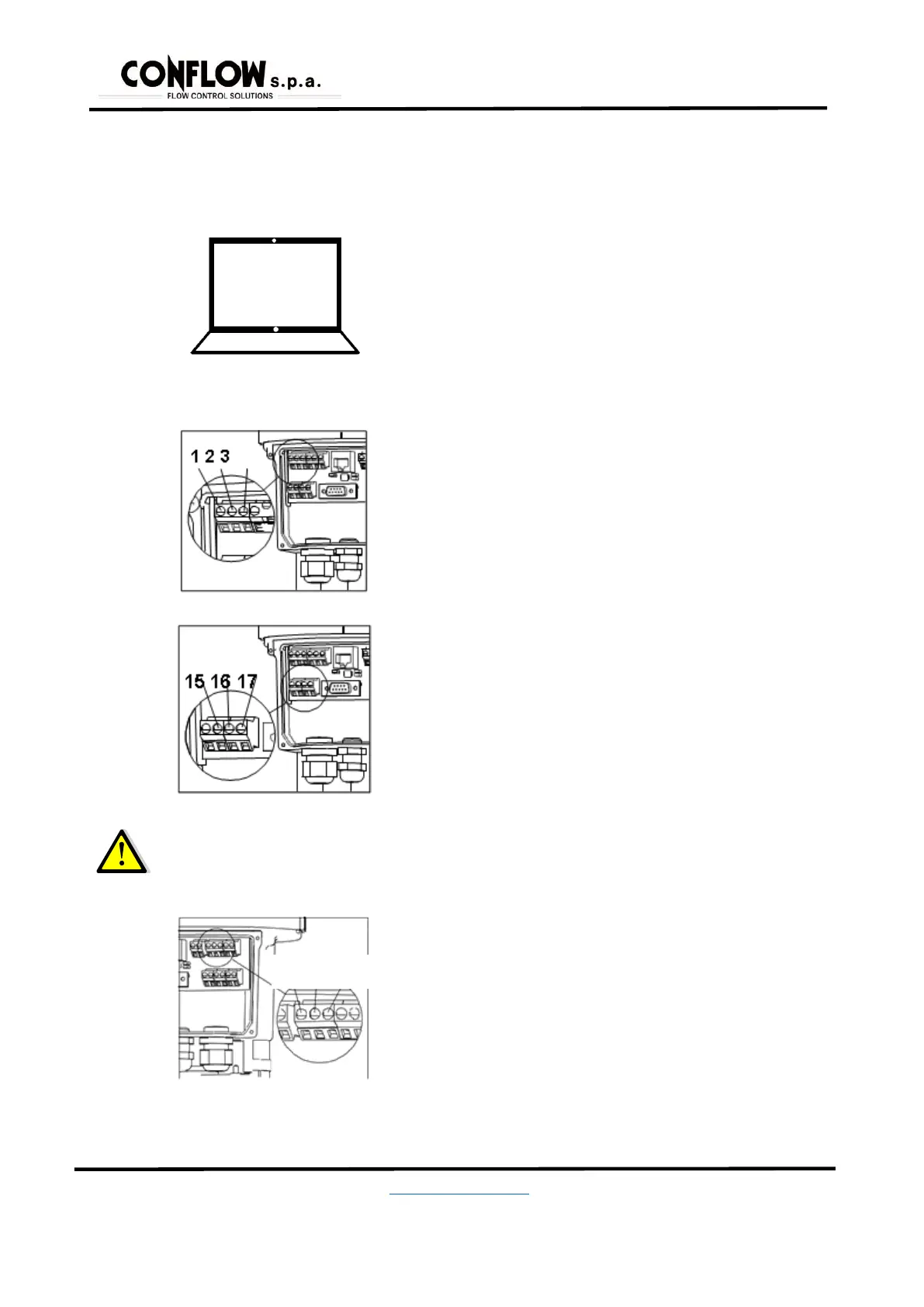

3.7 – “AMS VERSION” INTERFACES
The PSL-AMS actuator has many interfaces inside the Terminal Box. Configuration is via PSCS software or via the local control panel
PSC.2 (Optional on request).
3.7.1 – COMMUNICATION INTERFACES
For communication and parameterisation with a PC or with a
manual device, connect the communication cable to port RJ45,
the parameters of the actuator can be set using the PSCS
software.
3.7.2.1 - Galvanic isolation control signal
The terminals from 1 to 3 are used to receive control signals which
can be parameterised and regulated, for a control within a range
of 0-20 Ma or 0-10 V, split-range is also possible.
3.7.2.2 - Feedback signal for process control (Optional on request)
The terminals from 15 to 17 are used to receive process sensor
feedback - an optional on request - process controller, in a range
of 0-20 Ma or 0-10 V.
ATTENTION The following binary inputs (3.5.2.3 and 3.5.2.4 ) have priority over the control signal, if the actuator is
parameterised for a modulating service with control signals, these values are not considered if a binary input is applied.
After disconnecting the binary signal, the actuator will be repositioned according to the control signal applied.
3.7.2.3 – Galvanic isolation binary inputs
The terminals from 15 to 17 are used to receive process sensor
feedback - an optional on request - process controller, in a range
of 0-20 Ma or 0-10 V.
