- 5 -

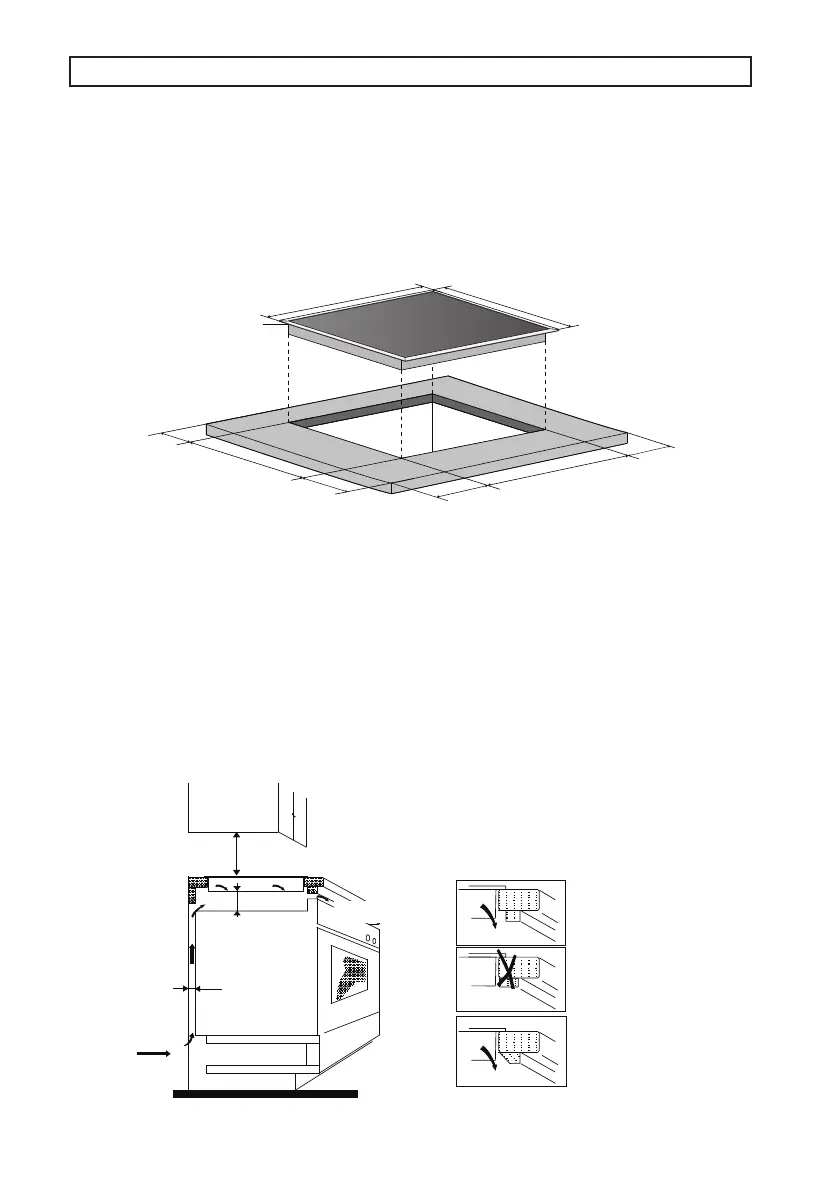

Figure (1)
Installation
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30 mm. Please select
heat-resistant work surface material to avoid larger deformation caused
by the heat radiation from the hotplate. As shown below:
Under any circumstances, make sure the Induction cooker hob is well
ventilated and the air inlet and outlet are not blocked. Ensure the induction
cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above
the hotplate should be at least 760 mm.
mini 760 mm
mini 5 cm
mini 2 cm
Air intake
Air exit
mini 5 mm
59cm
49cm
56cm
5cm mini
5cm mini
5cm mini
5cm mini
52cm
