a) If the cable is damaged or to be replaced, the operation must be
carried out the by after-sale agent with dedicated tools to avoid any
accidents.
b) If the appliance is being connected directly to the mains an omnipolar
circuit-breaker must be installed with a minimum opening of 3mm
between contacts.
c) The installer must ensure that the correct electrical connection has
been made and that it is compliant with safety regulations.
d) The cable must not be bent or compressed.
e) The cable must be checked regularly and replaced by authorised
technicians only.

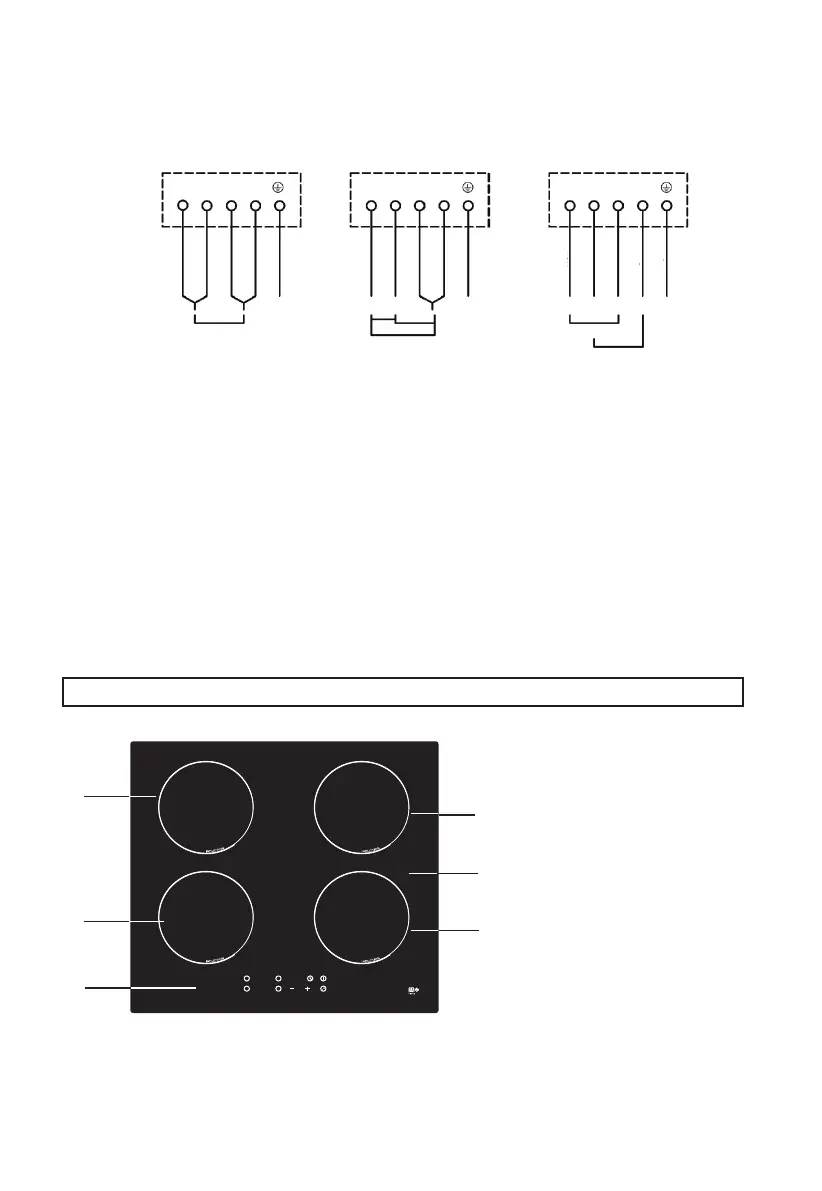

Black
220-240V~
220-240V~
220-240V~
Brown
Grey
Blue
Yellow-Green
Black
Brown
Grey
Blue
Yellow-Green
Black
Brown
Grey
Blue
Yellow-Green
220-240V~
220-240V~
400V~
L1 L2 N1 N2 L1 L2 N1 N2 L1 L2 N1 N2
2
1
3
4
5
6
Verify that the electric meter and fuses can withstand the intensity absorbed by
the table, taking the other appliances plugged into account. Fuse rating of lines
(one per phase): 32 amps.
1. Max. 1500 W zone
2. Max. 2000 W zone
3. max. 1500 W zone
6. Glass plate
5. Control panel
4. max. 2000 W zone
