STROBOCONN "PIANO TUNING" MANUAL
2
3
l-.----9
----10
1. Microphone
2. Scanning Unit
3. Transposing Knob
4. Motor Switch

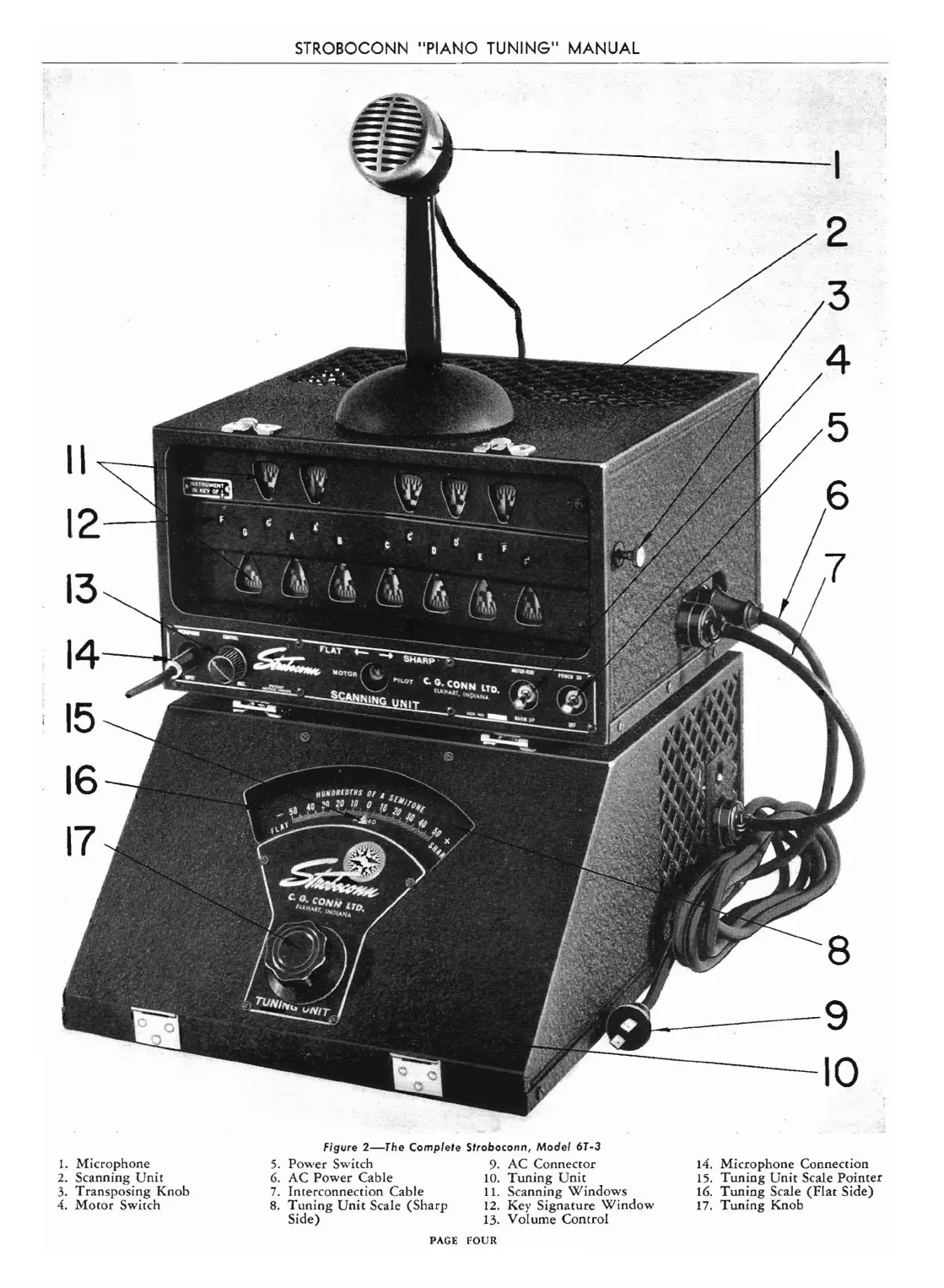

Figure 2-The Complele SIroboconn, Model 6T-3
5. Power Switch 9. AC Connector
6. AC Power Cable 10. Tuning Unit
7. Interconnection Cable 11. Scanning Windows
8. Tuning Unit Scale (Sharp 12. Key Signature Window
Side) 13. Volume Control
PAGE FOUR
14. Microphone Connection
15. Tuning Unit Scale Pointer
16. Tuniog Scale (Flat Side)
17. Tuning Knob
