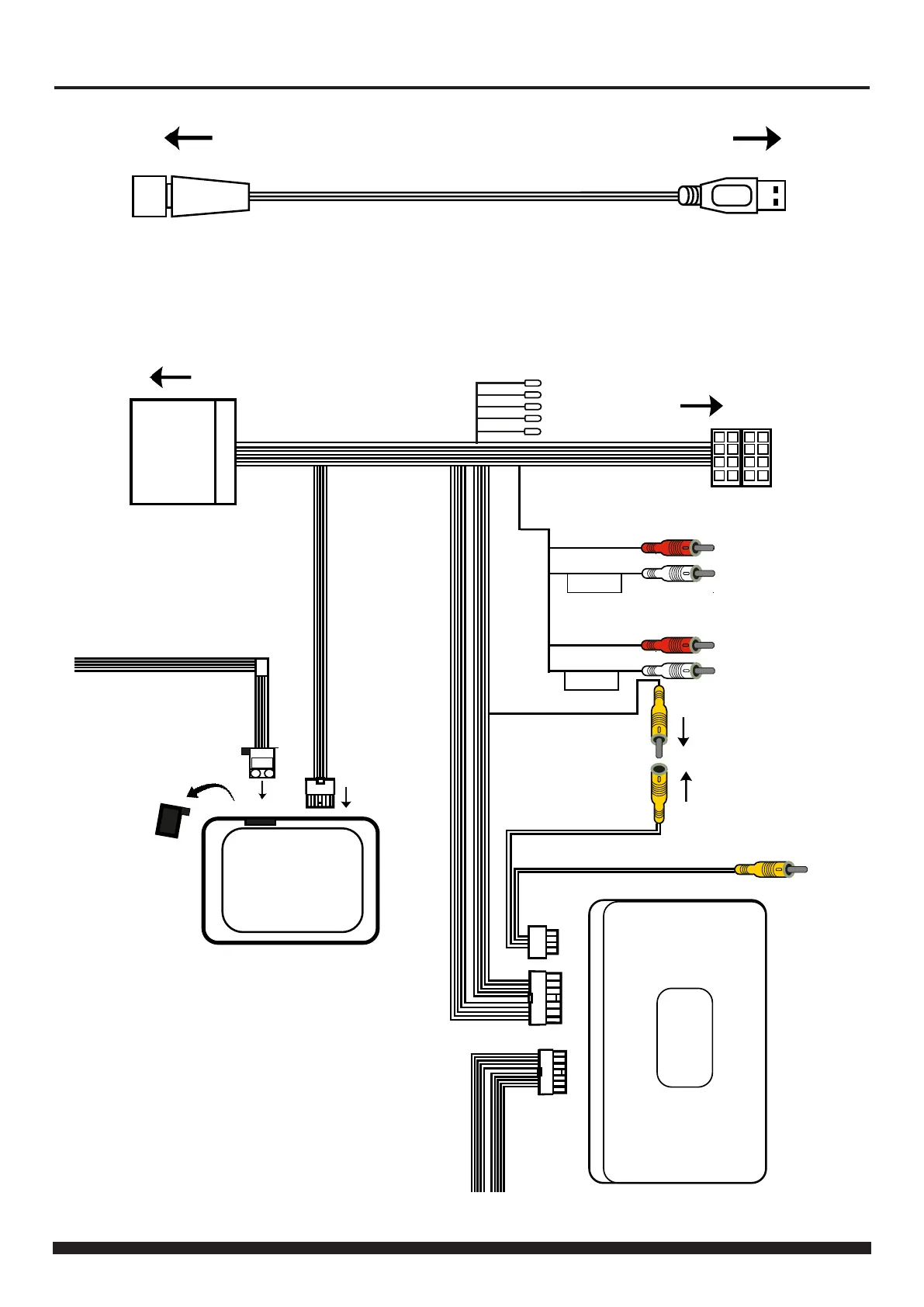

WIRING DIAGRAM
ISO Connector
Connect to aftermarket stereo
Quadlock Connector
Connect to quadlock connector from vehicle
Stereo Connection (Patch) Lead Connector [12 Pin]
Connect to Interface Box
Note: Must be connected first, before power
connection is made to the interface
Main Wiring Loom Connector [14 Pin]
Connect to Interface Box
Fiber Amplifier Connector
Firstly remove dust cover
from interface
Then connect fiber
amplifier connection
from vehicle
to interface
White/Red RCA Connectors (AUX)
Connect to aftermarket stereo
Flying Wires
Pink - Speed Pulse
Green - Park Brake
Purple/White - Reverse Gear
*Blue/White - Amp Remote
Grey - Mute
*Note - must be connected to radio remote ouput
Male Yellow RCA Connector
Connect to aftermarket radio
camera input
AUX
SPKR
White/Red RCA Connectors (Speaker)
Connect to front line output of aftermarket stereo
USB Retention Lead
Connect to vehicle
Connect to aftermarket stereo
