OPERATING & INSTALLATION INSTRUCTION 2-POST-LIFT
Chain break switch H264/H265/H325

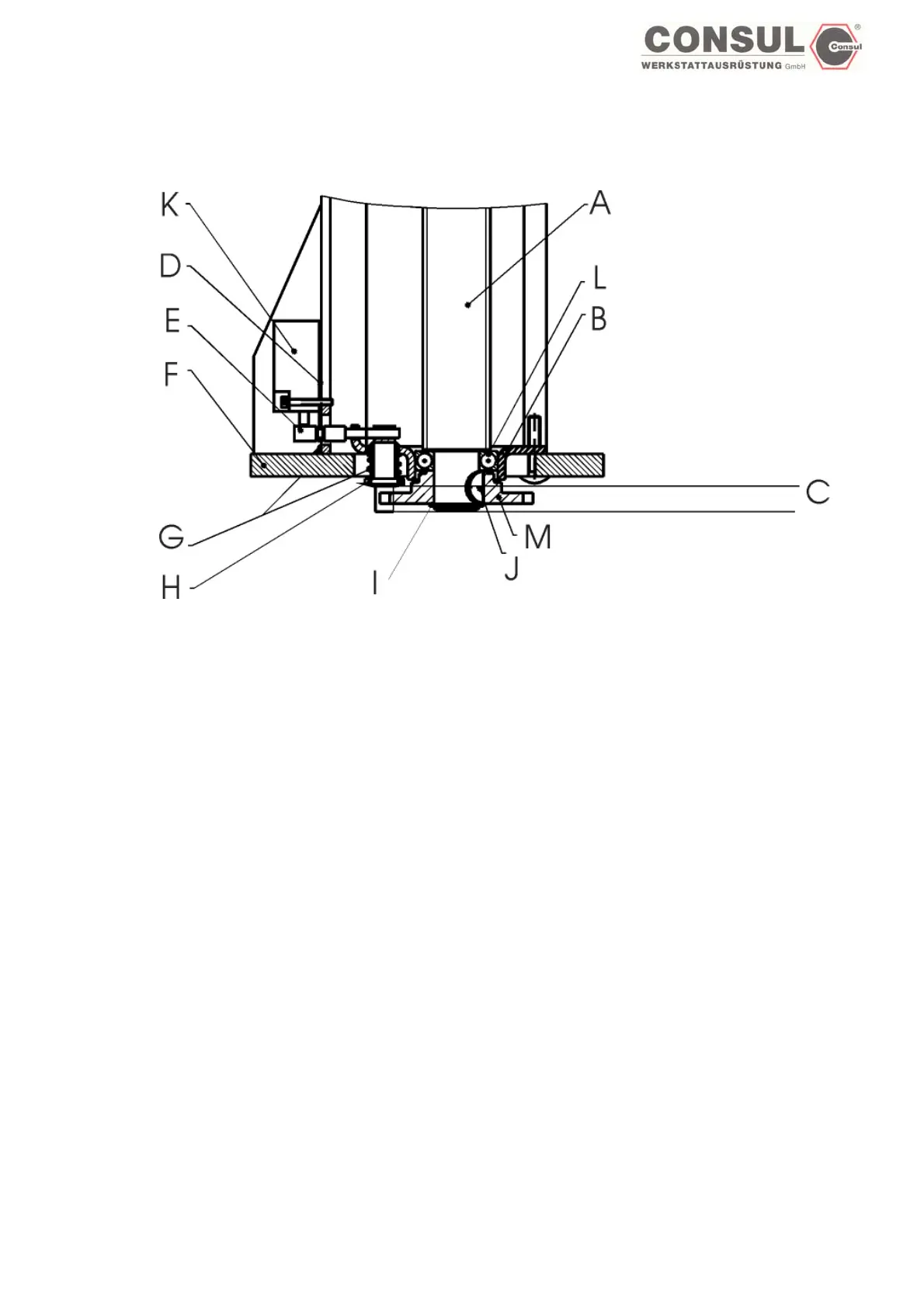

A = spindle
B =bearing holder
C = chain
D = cover for the limit switch
E = confirm shaft
F = column (column base plate)
G = compression spring
H = connection element
I = safety ring
J = woodruff key
K =limit switch complete
L =bearing
M = chain wheel
After trial runs with a nominal load, the chain break switch should be checked for
trouble-free operation and readjusted if necessary!
