Edition 05/2021 - MC ULTIMA- Technical documentation - page 42
SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.

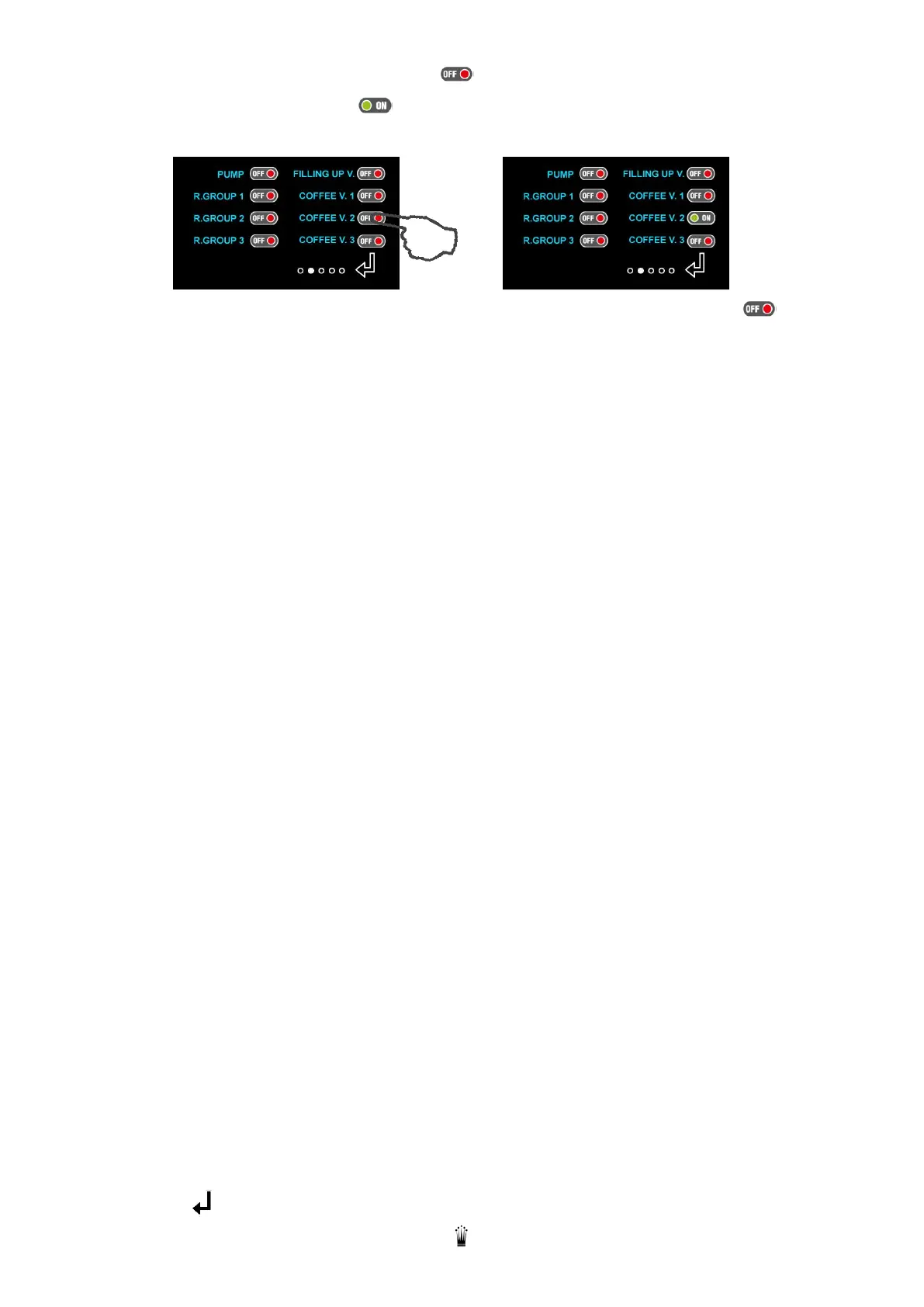

Each output is indicated in the “OFF” status
To activate an output, just press
Example :
The solenoid valve remains “ON” for 10 seconds during the diagnosis then it returns to
Output list :
Steam 1: XXX °C (Real temperature read in the steam boiler)
Steam 2: XXX °C (Real temperature read in the steam boiler)
Steam 3: XXX °C (Real temperature read in the steam boiler)
Coffee 1: YY °C (Real temperature read in the 1° coffee boiler)
Coffee 2: YY °C (Real temperature read in the 2° coffee boiler)
Coffee 3: YY °C (Real temperature read in the 3° coffee boiler)
R grp 1: ZZ °C (Real temperature read in the 1° head group)
R grp 2: ZZ °C (Real temperature read in the 2° head group)
R grp 3: ZZ °C (Real temperature read in the 3° head group)
Pump: Pump motor
Filling up valve: Filling up valve for steam boiler
Coffee 1 valve: Coffee valve for group n° 1
Coffee 2 valve: Coffee valve for group n° 2
Coffee 3 valve: Coffee valve for group n° 3
Pre-Inf valve Grp 1: Pre-Brewing valve for group n° 1
Pre-Inf valve Grp 2: Pre-Brewing valve for group n° 2
Pre-Inf valve Grp 3: Pre-Brewing valve for group n° 3
Hot water 1 valve: Left hot water valve + Left cold water valve
Hot water 2 valve: Right hot water valve + Right cold water valve
Steam C. Valve: Steam valve for steam control
Vacuum valve grp 1: Purge valve for coffee boiler n° 1
Vacuum valve grp 2: Purge valve for coffee boiler n° 2
Vacuum valve grp 3: Purge valve for coffee boiler n° 3
Air valve: Air valve for steam control
On / Off: Relay dedicated to supply the light transformer
Press on to validate and escape from the menu
