Conti MC ULTIMA - Electric Drawing

Edition 05/2021 - MC ULTIMA- Technical documentation - page 55
SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.
14 ELECTRIC DRAWING

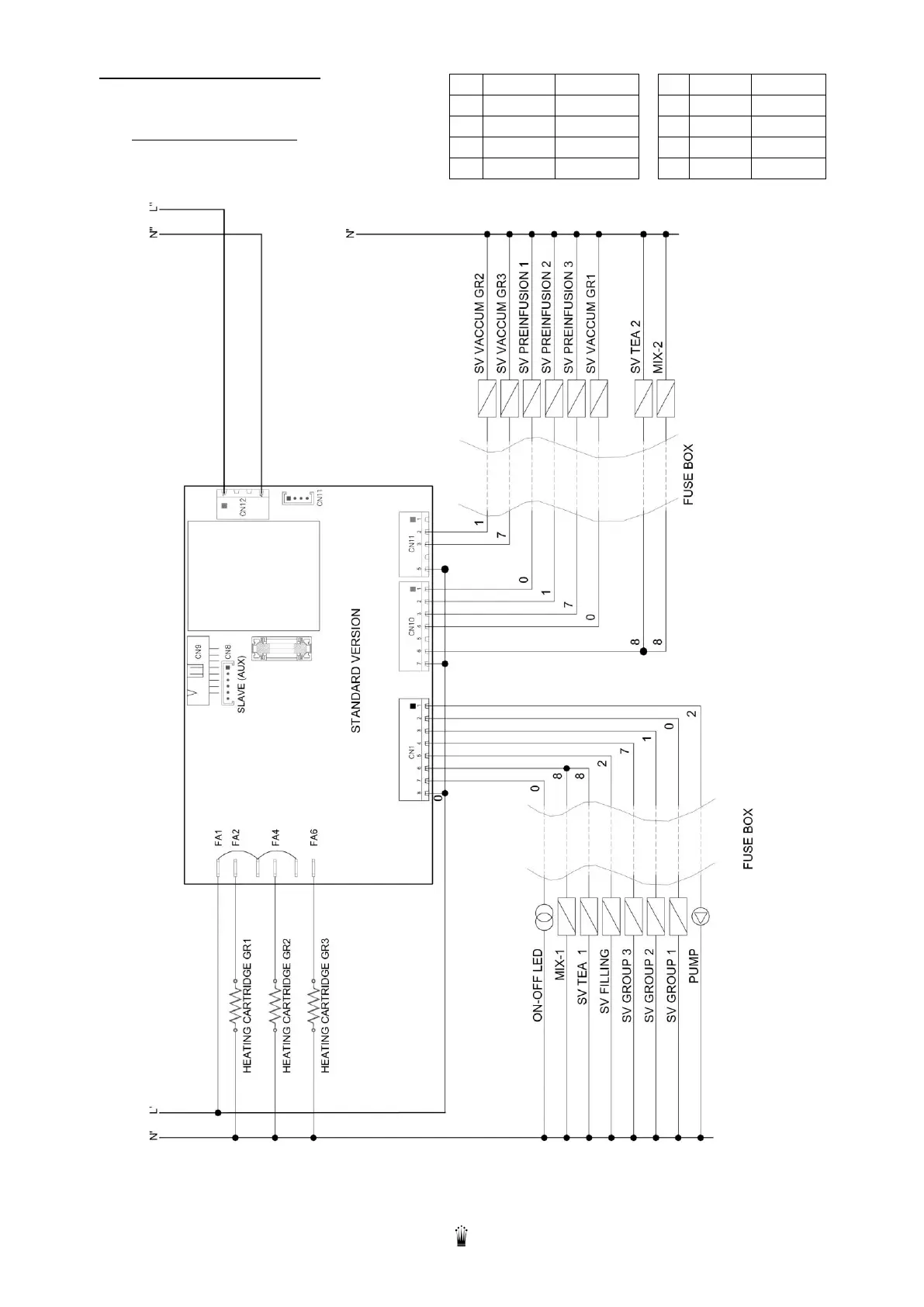

14.1 CPU board standard
CODE COULEURS FILS
CABLE COLOUR CODE
1
marron
brown
6
bleu
blue
2
rouge
red
7
violet
violet
3
orange
orange
8
gris
grey
4
jaune
yellow
9
blanc
white
5
vert
green
0
noir
black
