Control 4 C4-TSWMC7 User Manual

CAUTION! Do not attempt to use PoE and
AC power at the same time. Choose only one
power option.
ATTENTION! Ne pas tenter d’utiliser PoE et
AC en même temps. Choisir une seule option
d’alimentation.
Option1:EthernetConnectionwithaPoEInjectoror
aThird-PartyInjectororSwitch
PoE supplies DC power on the Ethernet cable using
a PoE Injector (model #AC-POE1-B) or a third-party
PoE solution to provide the Touch Screen with power
and a network connection. The Touch Screen works
with the Control4 PoE Injector or a third-party PoE
Injector.
To set up your PoE and Ethernet connection with a
PoE Injector, see Figure 4.
1 Attach the PoE Injector according to the
instructions in your PoE’s installation guide if
provided. Control4 PoE Injector instructions are
provided later in this document.
2 Pull the Ethernet cable from that location to
where you want to install the Touch Screen.

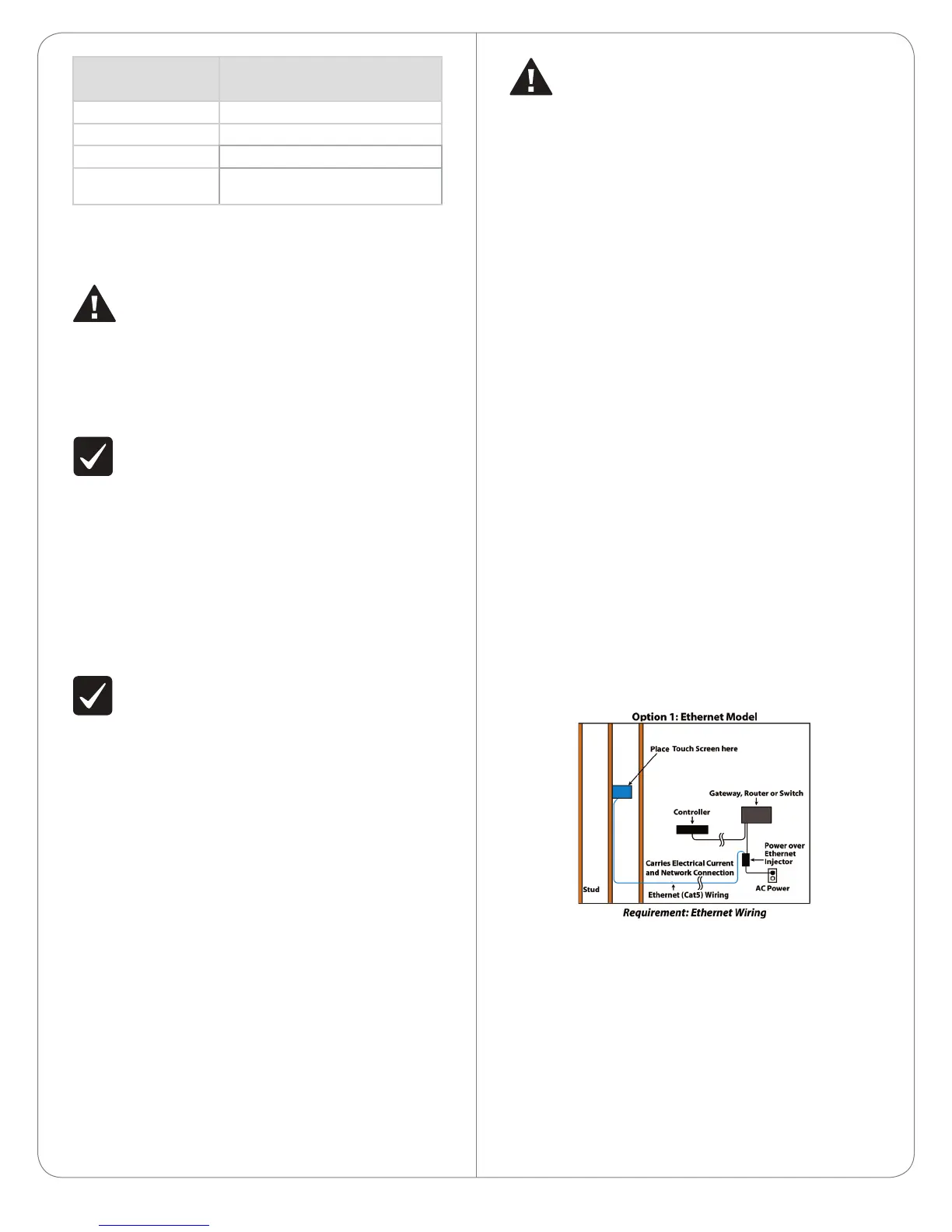

Figure 4. Ethernet with PoE - Requires Ethernet
Connection to PoE Injector
Option2:EthernetConnectionwithAC
The Ethernet is connected directly to the switch
(see Figure 5). This power connection requires both
neutral and hot connections.
CameraLEDColor/
State
TouchScreenStatus
O - Camera is o
Green - Camera is on
Green (blinks slowly) - Booting up
Green (blinks
rapidly)
- Restoring (during a factory
restore)
Installation
WARNING! Before installing the Touch Screen,
switch o the circuit breaker or remove the
fuse from the fuse box.
AVERTISSEMENT! Pour l’endroit où vous
installez l’écran tactile, coupez le disjoncteur
ou enlevez le fusible de la boîte de fusible.
IMPORTANT! Before you can complete the
instructions below, you must have a 7” Touch
Screen back box installed according to the
documentation provided in the back box kit.
See “Accessories” for details.
IMPORTANT! En coupant l’ouverture pour la
boîte de mur, ne coupez pas l’ouverture trop
grande. Soyez conservateur et agrandissez-
avec précaution la comme nécessaire. Voyez
que <<Accessories>>.
IMPORTANT! When cutting the opening for
the back box, DO NOT cut the opening too
large. Be conservative and cautiously enlarge it
as needed.
IMPORTANT! En coupant l’ouverture pour la
boîte de mur, ne coupez pas l’ouverture trop
grande. Soyez conservateur et agrandissez-
avec précaution la comme nécessaire.
Power and Network Installation Options
This device uses an Ethernet or WiFi network
connection, and can be powered using PoE or AC
power.
Choose one of the following options to install the
power and network communication.
