32
DANGER CAUTION
High Voltage
This machine runs hot
DO NOT USE
COVER FOR LIFTING
UNIMOTOR UM
D
A
C
C
P
B
N
F
M
L
K
E
P
G
75.0
POWER CONNECTOR
SIGNAL
CONNECTOR
4 HOLES DIA. 'H'
EQUI-SPACED ON A
'J' P.C.D.

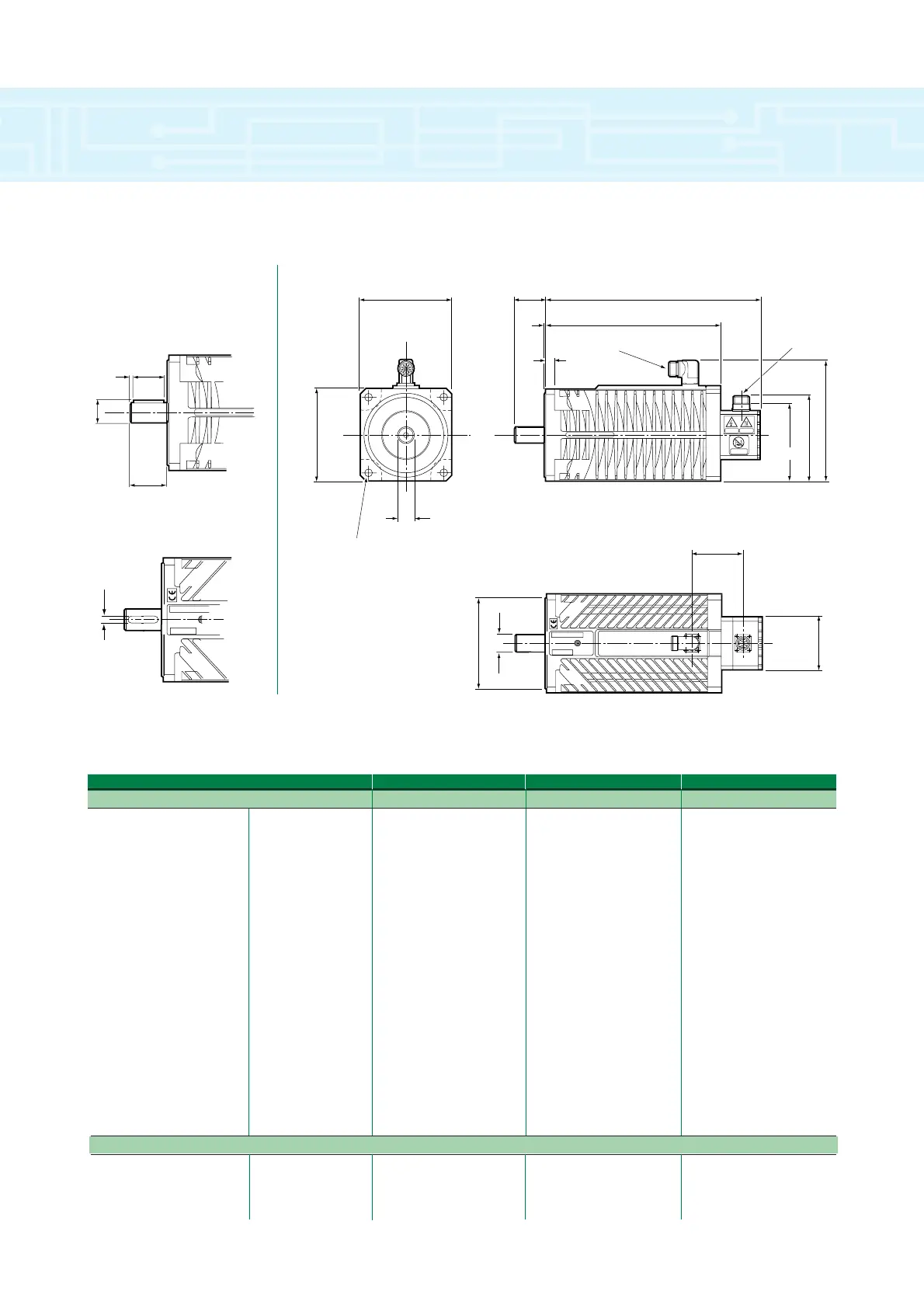

Outline Drawings - Frame Sizes 75 - 142
Dimensions - Frame Sizes 75 - 142
FRAME SIZE 75 95 115 142
Dimension / Length suffix
A Length Overall (Unbraked) 211 241 271 301 222 252 282 312 342 242 272 302 332 362 225 255 285 315 345
A Length Overall (Braked) 241 271 301 331 252 282 312 342 372 272 302 332 362 392 285 315 345 375 405
B Body Length (Unbraked) 146 176 206 236 157 187 217 247 277 177 207 237 267 297 160 190 220 250 280
B Body Length (Braked) 176 206 236 266 187 217 247 277 307 207 237 267 297 327 220 250 280 310 340
C Flange Square 75.0 95.0 115.0 142.0
D Flange Thickness 7.0 9.0 11.0 12.3
E Register Diameter 60.0 (J6) 80.0 (J6) 95.0 (J6) 130.0 (J6)
F Register Length 2.4 2.9 2.9 3.4
G Power to Connect C/L 61.0 62.5 66.0 80.0
G
1
Front Flange to power C/L (Unbraked) 116 146 176 203 125 155 185 215 245 141 171 201 231 261 111 141 171 201 231
G
1
Front Flange to power C/L (Braked) 146 176 206 236 155 185 215 245 275 171 201 231 261 291 171 201 231 261 291
H Fixing Holes Diameter 5.8 (H14) 7.0 (H14) 10.0 (H14) 12.0 (H14)
J Fixing Hole p.c.d. 75.0 100.0 115.0 165.0
K Overall Height 126.0 146.0 166.0 193.0
L Signal Connector Height (UM) 107.0 117.0 127.0 140.0
M Signal Connector Height (SL) 88.0 98.0 108.0 121.0
N Shaft Length (front) 23.0 30.0 30.0 30.0 30.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0 50.0 50.0 50.0 50.0 50.0 50.0 50.0
P Shaft Diameter (front) 11.0 14.0 14.0 14.0 14.0 19.0 19.0 19.0 19.0 19.0 19.0 19.0 24.0 24.0 24.0 24.0 24.0 24.0 24.0
Shaft Key Dimensions (option A)
R Key Length 14.0 22.0 22.0 22.0 22.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 40.0 40.0 40.0 40.0 40.0 40.0 40.0
S Key Height 12.4 15.9 15.9 15.9 15.9 21.4 21.4 21.4 21.4 21.4 21.4 21.4 26.9 26.9 26.9 26.9 26.9 26.9 26.9
T Key to Shaft End 3.5 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0
V Key Width 4.0 5.0 5.0 5.0 5.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0
UNIMOTOR UM
TR
S
N
V
ABCDAB CD EABCDEABCDE
Shaft Key Detail
(Option A)
(MAX)
(MAX)
(MAX)
(REF)
(REF)
(REF)
motor installation
