introduction to macros
Drive At Speed Output
Drive Reset Input
Run Forward Input
Run Reverse Input
PID Enable Input
External Trip Input
PID Reference
PID Feedback
Speed Output
Load Output
1
2
3
4
5
6
7
8
9
10
11
21
22
23
24
25
26
27
28
29
30
31
Drive Connections
Torque Ref.
Main Ref.
Run Forward
& Reverse
Speed
& Current
External
Reset Input
PID Ref
Input for
PID Enable &
At Speed O/P
0-10V DC
x 1
x 2
PID Ref
PID F/bk
PID F/bk
PID
Enable
P
I
D

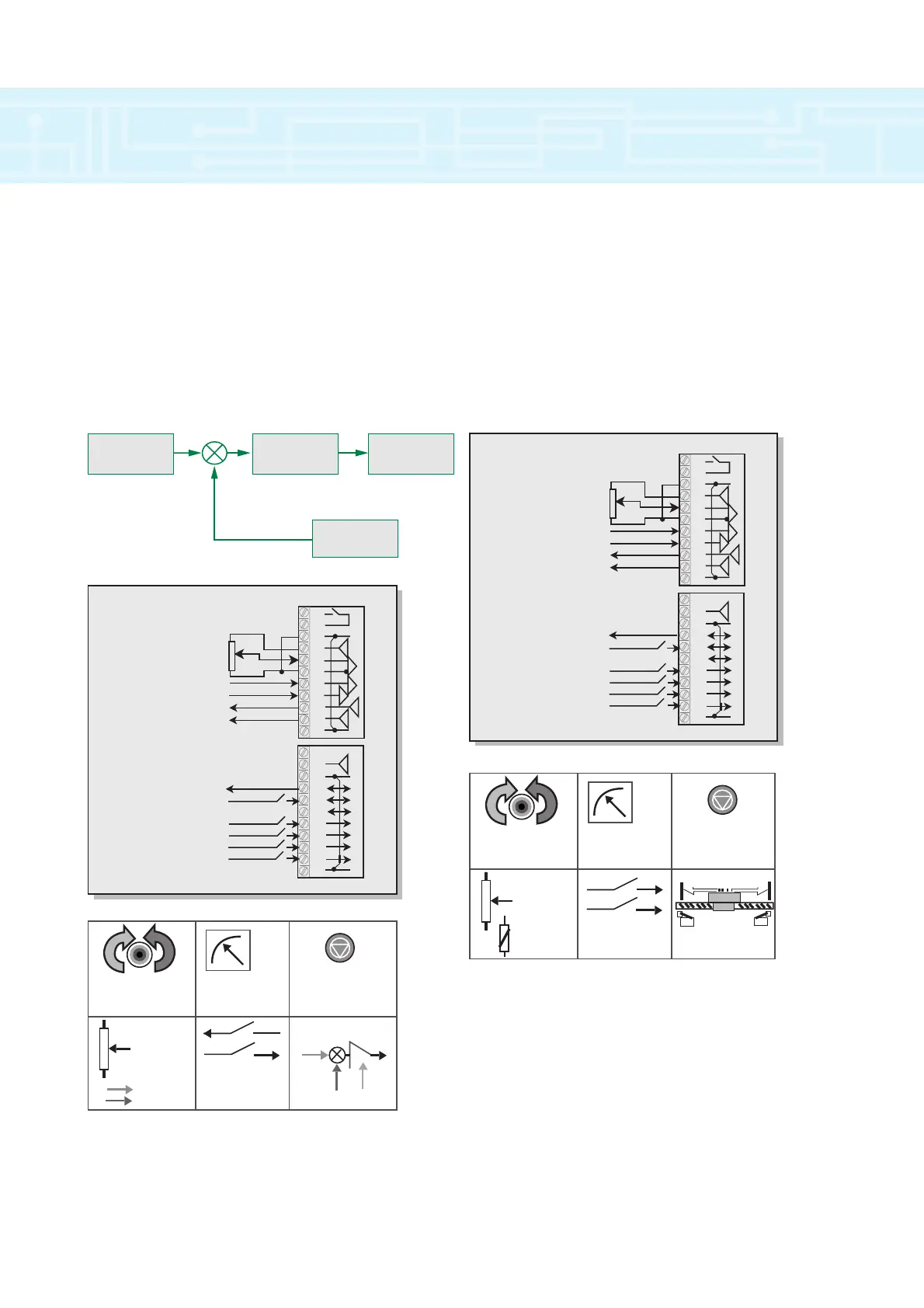

Macro 6 – Axis Limit control
Using this macro enables two digital inputs to be
re-programmed so providing limit switch lockout for
axis position control systems. The drive would normally
be run from a +/- 10v reference and controlled forward
/ backwards from this. If a limit switch level is reached
the drive will be forced to stop independent of the
speed setting.
Drive At Speed Output
Drive Reset Input
Run Forward Input
Run Reverse Input
PID Enable Input
External Trip Input
PID Reference
PID Feedback
Speed Output
Load Output
Main Ref.
1
2
3
4
5
6
7
8
9
10
11
21
22
23
24
25
26
27
28
29
30
31
Drive Connections
Torque Ref.
Run Forward
& Reverse
Speed
& Current
External
Reset Input
Thermistor
2 Inputs
for Forward &
Reverse limits
0-10V DC
x 1
x 2
Macro 5 – PID control
This macro configures the drive to control a motor
with reference to PID control signal. In PID control, the
error resulting from differences between the PID
feedback and PID reference is passed through a limiter,
a scaling stage and finally the error is added to the
frequency / speed signal.
Setpoint
Source
PID
Output
Source
Feedback
Source
