5. CONNECTIONS AND FUNCTIONS

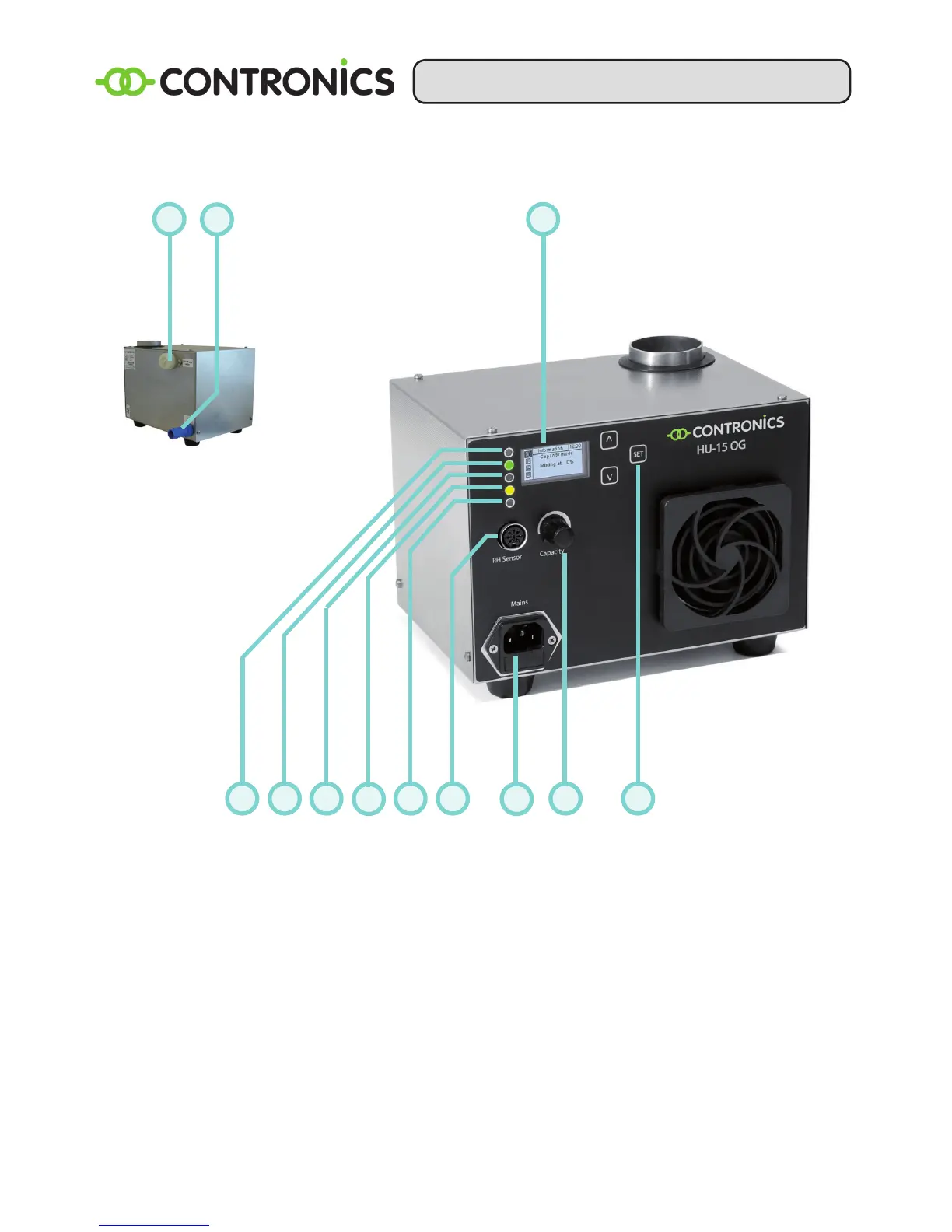

Figure 1 Connections and functions
1. Water supply 3/4”, min. 1 bar / max. 6 bar.
2. Water discharge 15 mm free passage.
3. Display.
4. LED indication (blue) constant for adjustment of the capacity. (Flashing --> ozone)
5. LED indication (green)for rinsing.
6. High level LED indication (yellow).
7. Low level LED indication (yellow).
8. High temperature LED indication (red).
9. Connection plug for HS-91, DZR-45, HTR-10, HK-15 or HK-01 (external control 0-10 V).
10. Mains voltage connection + fuse (230 V± 10% / 50-60 Hz.).
11. Rotary button for adjustment of the capacity/humidity.
12. Push buttons for adjustments.
