Convaid Cruiser 14 - Brake Assy for Rolko Wheel - Left

Axle
www.convaid.com36
Cruiser 14
Close-up
996105
QTYDESCRIPTION
PART NUMBERITEM
1CX/ME/CB/EZ/SFT Parking Brake Assembly LH5068101
1Rolko Foot Brake Lever Assy, LH5081452
1Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel1007513
1
Bolt 1/4"-28 x 2" Socket Button Head
1006334
3Nylon Washer 1/4" x 3/4" x 1/8"100478
5
3
Coved Washer 3/4"
1000656
5
Washer 7/16" AN-960-716100090
7
1
Bolt 1/4"-20 x 3/4" Socket Button Head
1004818
1Bolt 1/4"-28 x 1-3/4" Socket Button Head1007519
4
Nylon Washer 1/4" x 11/16"
10001310
2Washer 1/4" AN-960-41610008911
2Locknut 1/4"-28 Flexlock Black Zinc10004512
1
Locknut 1/4"-20 Jam Flexlock
10011213
1Nylon Washer 1/4" x 1/2"10002514
1Thread Locker-Medium-Vibra-tite10069015
Cruiser 14 Brakes LH
Axle
1
2
3
5
4
6
7
8
9
10
11
12
Axle Nut
1315
11
14
5
6
11
12
Assembled
Exploded
7
12 15
996105
QTYDESCRIPTION
PART NUMBERITEM
1CX/ME/CB/EZ/SFT Parking Brake Assembly LH5068101
1Rolko Foot Brake Lever Assy, LH5081452
1Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel1007513
1
Bolt 1/4"-28 x 2" Socket Button Head
1006334
3Nylon Washer 1/4" x 3/4" x 1/8"100478
5
3
Coved Washer 3/4"
1000656
5
Washer 7/16" AN-960-716100090
7
1
Bolt 1/4"-20 x 3/4" Socket Button Head
1004818
1Bolt 1/4"-28 x 1-3/4" Socket Button Head1007519
4
Nylon Washer 1/4" x 11/16"
10001310
2Washer 1/4" AN-960-41610008911
2Locknut 1/4"-28 Flexlock Black Zinc10004512
1
Locknut 1/4"-20 Jam Flexlock
10011213
1Nylon Washer 1/4" x 1/2"10002514
1Thread Locker-Medium-Vibra-tite10069015
Cruiser 14 Brakes LH
Axle
1
2
3
5
4
6
7
8
9
10
11
12
Axle Nut
1315
11
14
5
6
11
12
Assembled
Exploded
7
12 15
Assembled

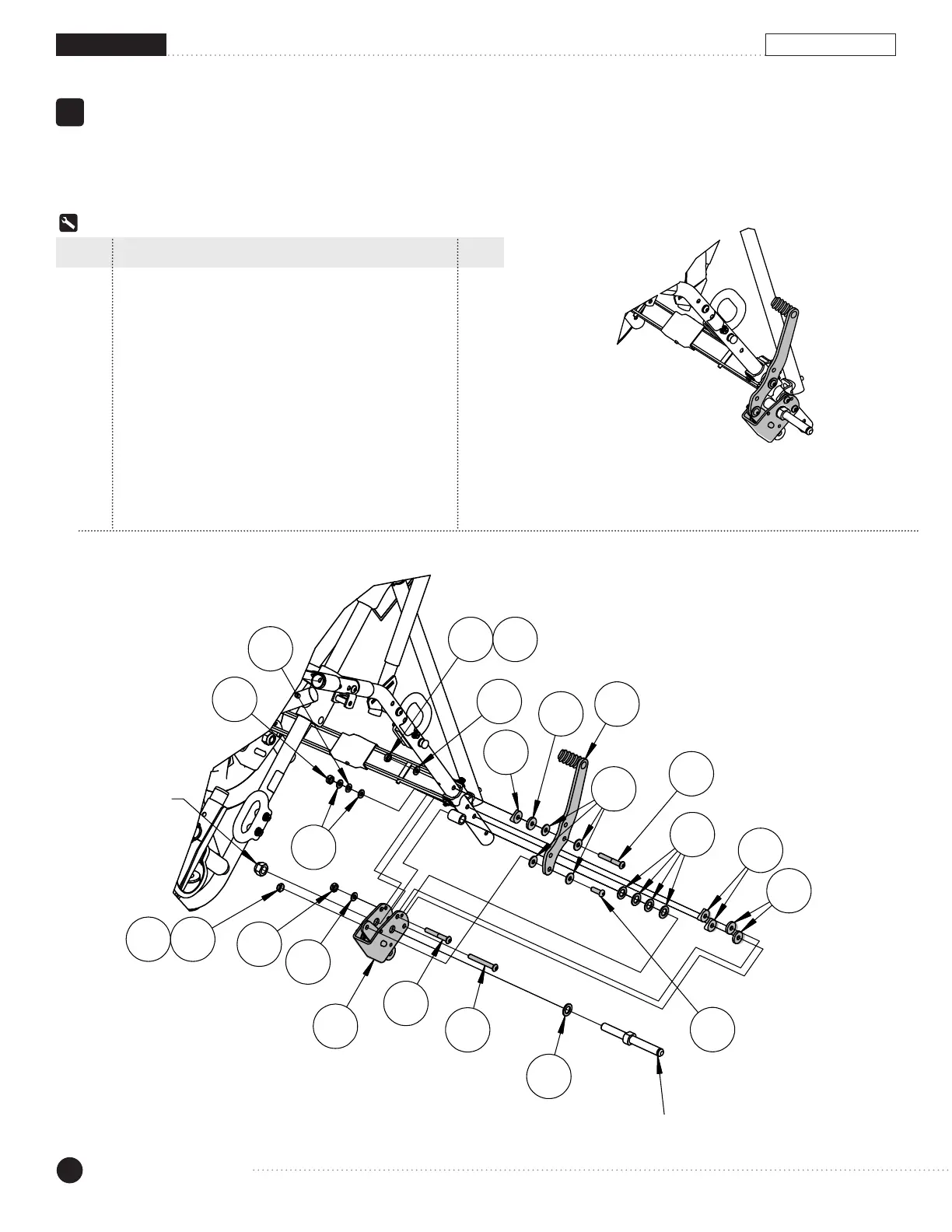

WHEELS
Brake Assy for Rolko Wheels - Left
Item Description Qty
1 CX/ME/CB/EZ/SFT Parking Brake Assembly, LH 1
2 Rolko Foot Brake Lever Assembly, LH 1
3 Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel 1
4 Bolt 1/4"-28 x 2" Socket Button Head 1
5 Nylon Washer 1/4" x 3/4" x 1/8" 3
6 Coved Washer 3/4" 3
7 Washer 7/16" AN-960-716 5
8 Bolt 1/4"-20 x 3/4" Socket Button Head 1
9 Bolt 1/4"-28 x 1-3/4" Socket Button Head 1
10 Nylon Washer 1/4" x 11/16" 4
11 Washer 1/4" AN-960-416 2
12 Locknut 1/4"-28 Flexlock Black Zinc 2
13 Locknut 1/4"-20 Jam Flexlock 1
14 Nylon Washer 1/4" x 1/2" 1
15 Thread Locker-Medium-Vibra-tite 1
996105
#
Kit Includes
