Convaid Cruiser 14 - Brake Assy for Rolko Attendant Brake - Left

Axle
www.convaid.com40
Cruiser 14
Close-up
996107
QTYDESCRIPTIONPART NUMBERITEM
1
CX Parking Brake Assy (For Attendant Brakes) LH
5082341
1Rolko Foot Brake Lever Assy, LH5081452
1
Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel
1007513
1Bolt 1/4"-28 x 2" Socket Button Head1006334
3
Nylon Washer 1/4" x 3/4" x 1/8"
1004785
3Coved Washer 3/4"1000656
5
Washer 7/16" AN-960-716
1000907
1Bolt 1/4"-20 x 3/4" Socket Button Head1004818
1
Bolt 1/4"-28 x 1-3/4" Socket Button Head
1007519
4
Nylon Washer 1/4" x 11/16"
10001310
2Washer 1/4" AN-960-41610008911
2
Locknut 1/4"-28 Flexlock Black Zinc
10004512
1Locknut 1/4"-20 Jam Flexlock10011213
1
Nylon Washer 1/4" x 1/2"
10002514
1Thread Locker-Medium-Vibra-tite10069015
12 15
7
6
12
11
5
14
11
1315
Axle Nut
12
11
10
9
8
7
6
4
5
3
2
1
Axle

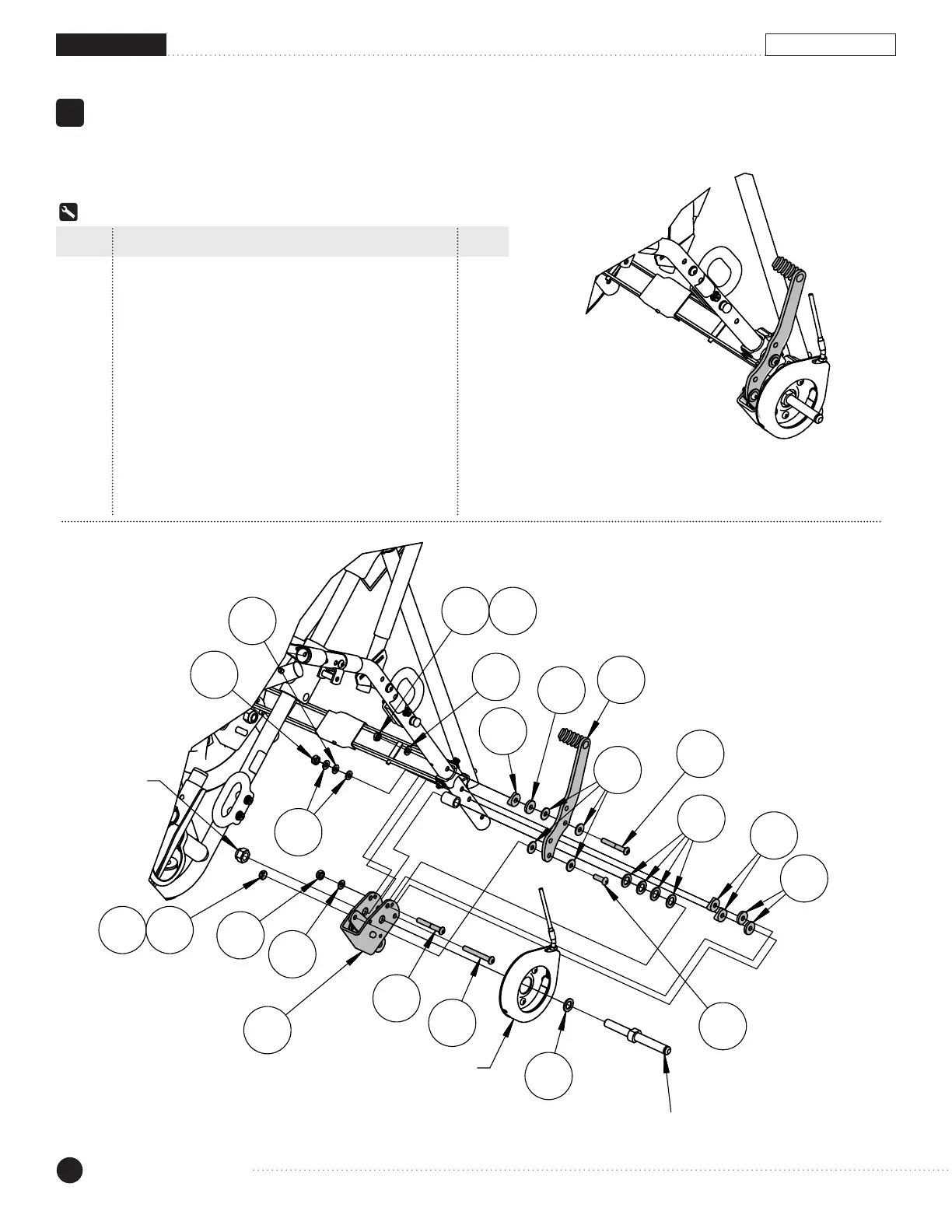

Cruiser 14 Brakes w/Attendant Brakes LH
Assembled
Exploded
Rolko Attendant
Brake
996107
QTYDESCRIPTIONPART NUMBERITEM
1
CX Parking Brake Assy (For Attendant Brakes) LH
5082341
1Rolko Foot Brake Lever Assy, LH5081452
1
Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel
1007513
1Bolt 1/4"-28 x 2" Socket Button Head1006334
3
Nylon Washer 1/4" x 3/4" x 1/8"
1004785
3Coved Washer 3/4"1000656
5
Washer 7/16" AN-960-716
1000907
1Bolt 1/4"-20 x 3/4" Socket Button Head1004818
1
Bolt 1/4"-28 x 1-3/4" Socket Button Head
1007519
4
Nylon Washer 1/4" x 11/16"
10001310
2Washer 1/4" AN-960-41610008911
2
Locknut 1/4"-28 Flexlock Black Zinc
10004512
1Locknut 1/4"-20 Jam Flexlock10011213
1
Nylon Washer 1/4" x 1/2"
10002514
1Thread Locker-Medium-Vibra-tite10069015
12 15
7
6
12
11
5
14
11
1315
Axle Nut
12
11
10
9
8
7
6
4
5
3
2
1
Axle
Cruiser 14 Brakes w/Attendant Brakes LH
Assembled
Exploded
Rolko Attendant
Brake
Assembled
WHEELS
Brake Assy For Rolko Attendant Brake - Left
Item Description Qty
1 CX Parking Brake Assy (For Attendant Brakes), LH 1
2 Rolko Foot Brake Lever Assembly, LH 1
3 Bolt 1/4"-28 x 1-3/4" Socket Button Hd Alloy Steel 1
4 Bolt 1/4"-28 x 2" Socket Button Head 1
5 Nylon Washer 1/4" x 3/4" x 1/8" 3
6 Coved Washer 3/4" 3
7 Washer 7/16" AN-960-716 5
8 Bolt 1/4"-20 x 3/4" Socket Button Head 1
9 Bolt 1/4"-28 x 1-3/4" Socket Button Head 1
10 Nylon Washer 1/4" x 11/16" 4
11 Washer 1/4" AN-960-416 2
12 Locknut 1/4"-28 Flexlock Black Zinc 2
13 Locknut 1/4"-20 Jam Flexlock 1
14 Nylon Washer 1/4" x 1/2" 1
15 Thread Locker-Medium-Vibra-tite 1
996107
#
Kit Includes
