Convaid Cruiser 14 - Scout - Brake Assy W;Solid Knobby Wheel - Left

www.convaid.com48
Cruiser 14
Close-up
996613
QTYDESCRIPTIONPART NUMBERITEM
1
Scout 12" Solid Wheel Assy
5042611
1Brake Caliper Assembly QUAD QMD-5 with Screws & Washer1004962
1
SC Rear Brake Caliper Bracket
5036253
2Caliper Fixing Washer100497-W4
2
Caliper Fixing Screws100497-S
5
1Scout Wheel Hub Spacer5033346
1
Bolt 7/16" x 2-1/2" Hex Hd
1005047
4Washer 7/16" AN-960-7161000908
1
Bolt 7/16"-20 x 5-1/2" Hex Hd
1005059
2Locknut 7/16"-20 Nylon Insert10002110
9
Rear Axle
Bracket
8
8
10
3
4
5
8
7
6
2
8

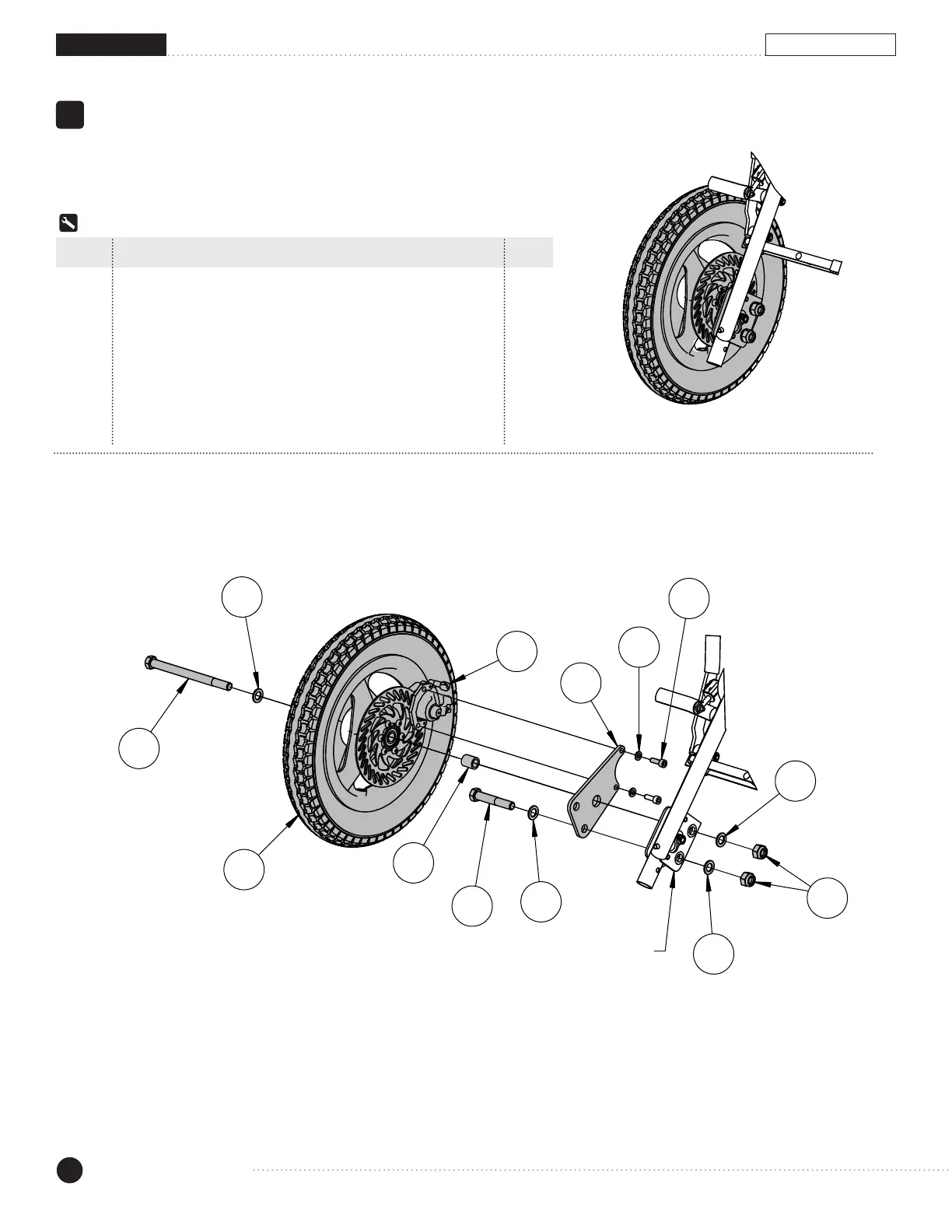

Scout 12-18 Brake Assembly w/Solid Knobby Wheel LH
Assembled
Exploded
1
Assembled
996613
QTYDESCRIPTIONPART NUMBERITEM
1
Scout 12" Solid Wheel Assy
5042611
1Brake Caliper Assembly QUAD QMD-5 with Screws & Washer1004962
1
SC Rear Brake Caliper Bracket
5036253
2Caliper Fixing Washer100497-W4
2
Caliper Fixing Screws100497-S
5
1Scout Wheel Hub Spacer5033346
1
Bolt 7/16" x 2-1/2" Hex Hd
1005047
4Washer 7/16" AN-960-7161000908
1
Bolt 7/16"-20 x 5-1/2" Hex Hd
1005059
2Locknut 7/16"-20 Nylon Insert10002110
9
Rear Axle
Bracket
8
8
10
3
4
5
8
7
6
2
8
Scout 12-18 Brake Assembly w/Solid Knobby Wheel LH
Assembled
Exploded
1
WHEELS
Scout - Brake Assy w/Solid Knobby Wheel - Left
Item Description Qty
1 Scout 12" Solid Wheel Assembly 1
2 Brake Caliper Assembly QUAD QMD-5 with Screws & Washer 1
3 SC Rear Brake Caliper Bracket 1
4 Caliper Fixing Washer 2
5 Caliper Fixing Screws 2
6 Scout Wheel Hub Spacer 1
7 Bolt 7/16" x 2-1/2" Hex Hd 1
8 Washer 7/16" AN-960-716 4
9 Bolt 7/16"-20 x 5-1/2" Hex Hd 1
10 Locknut 7/16"-20 Nylon Insert 2
996613
#
Kit Includes
