Convotherm 4 Assembly Instructions

3 Stacking kit version layouts and components
Purpose of this section
This section provides detailed information on the various stacking kit versions and components.
The combi oven being used on the bottom is what determines which stacking kit you should choose.
3.1 Combinations allowed

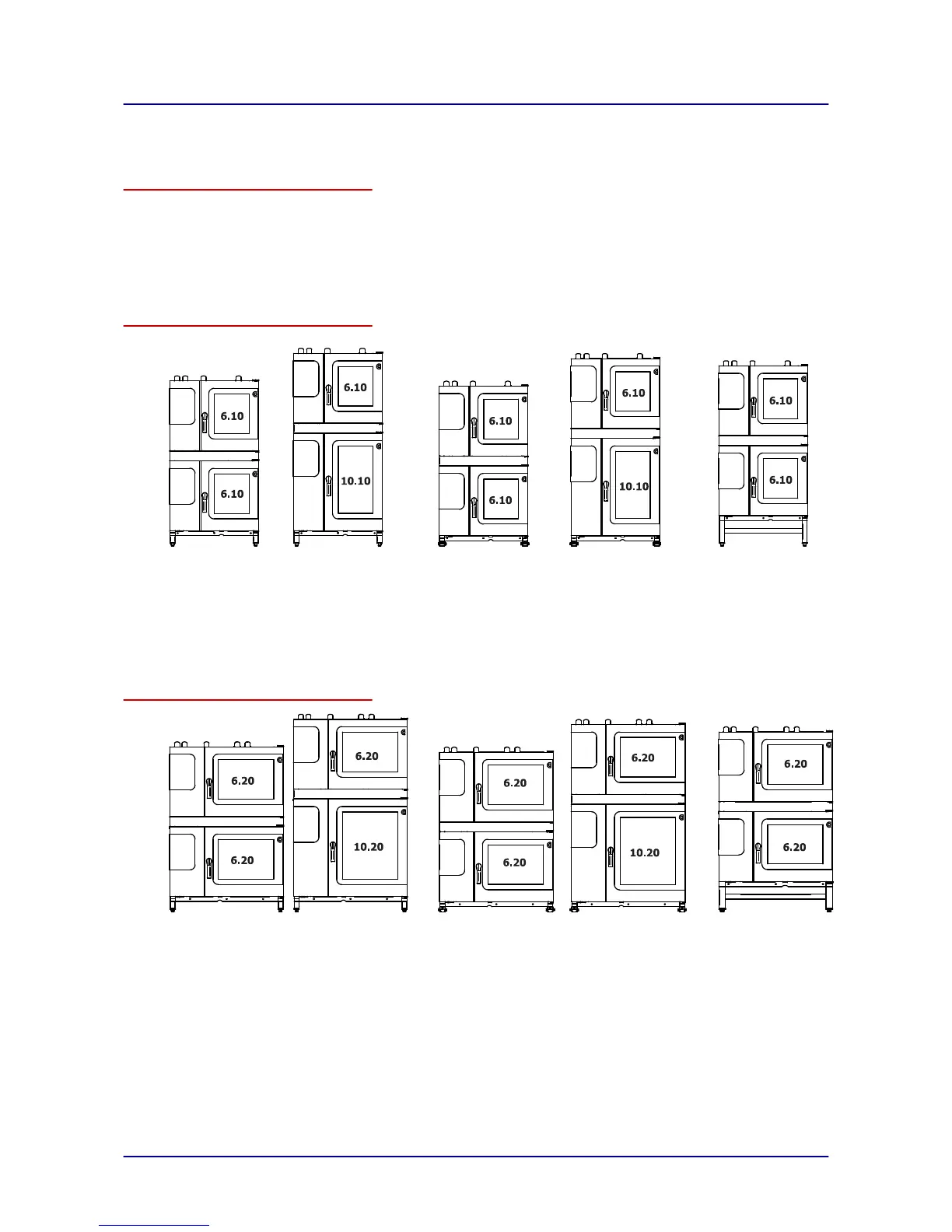

Permissible combinations with 6.10 / 10.10 unit sizes
6.10 on 6.10 with
6” base height
■
6"
■
6”/8” (marine
model)
6.10 on 10.10 with
base height of
■
6"
■
6”/8” (marine mod‐
el)
6.10 on 6.10 with
rollers,
4”/6” base height
6.10 on 10.10 with
rollers,
4”/6” base height
6.10 on 6.10
with
12” base height
Permissible combinations with 6.20 / 10.20 unit sizes
6.20 on 6.20 with
base height of
■
6"
■
6”/8” (marine
model)
6.20 on 10.20 with
base height of
■
6"
■
6”/8” (marine mod‐
el)
6.20 on 6.20 with
rollers,
4”/6” base height
6.20 on 10.20 with
rollers,
4”/6” base height
6.20 on 6.20 with
12” base height
3 Stacking kit version layouts and components
18

Convotherm 4 Specifications

General

Model	Convotherm 4
Type	Combination Oven
Temperature Range	30°C to 300°C
Hygienic Door Handle	Yes
Construction	Stainless steel
Cooking Modes	Convection, Steam, Combination
Energy Source	Electric
Cleaning System	Automatic Cleaning System
Power Supply	400V
