Steljes Audio . ConXeasy S603 User Guide 7

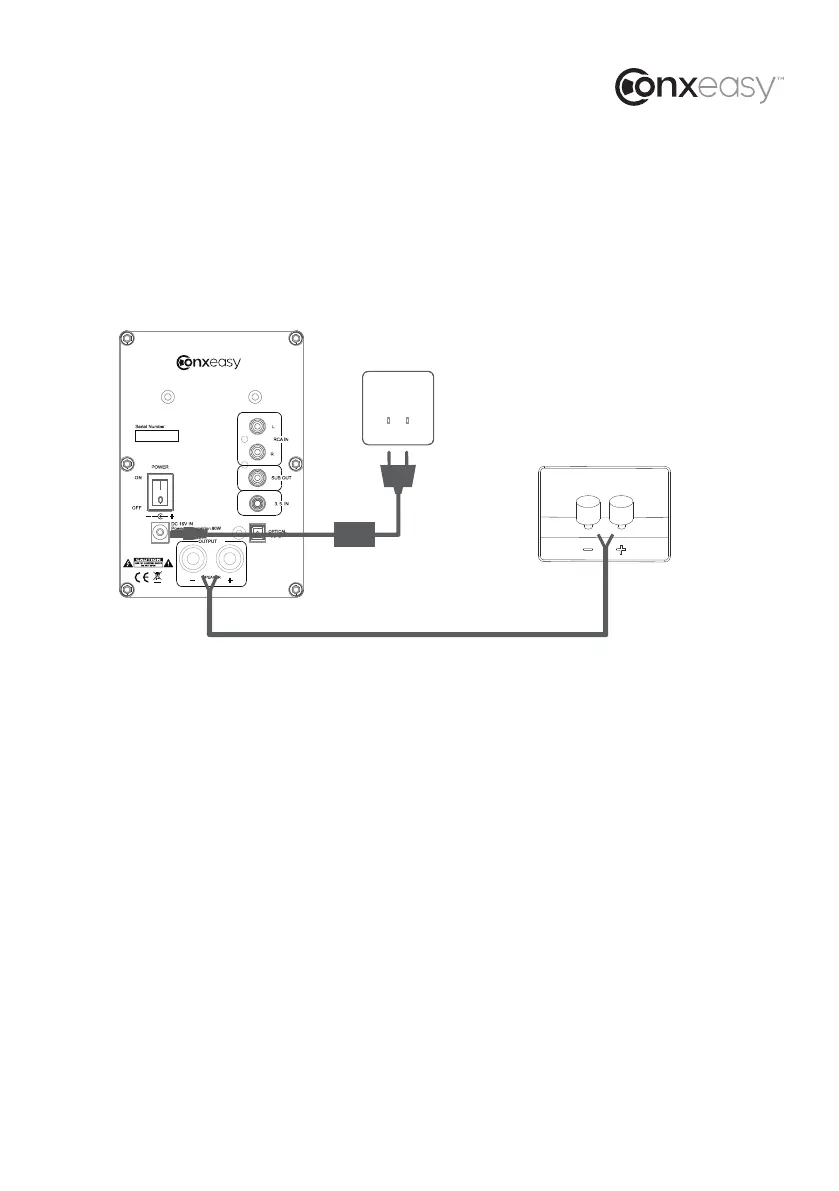

CONNECTINg yOur SpEakErS
STEP 1
Connect the RED(+) and BLACK(-) terminals from the left speaker to the corresponding terminals
on the right speaker using the included speaker cable. Insulation on cable must be stripped on all
ends.
Note: Because this system is self-powered, do not connect the speaker terminals to the speaker
outputs of a stereo receiver.
STEP 2
Connect the power cord into the left speaker and the other end into the wall outlet.
TO
( RIGHT)
S603
Back of active speaker
Back of passive speaker
To Next Page
