CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug FJ
QIG Version 2.2 13 CoolPlug CooLinkHUB
6.3 FJ (Fujitsu/General) - Option 3*
1

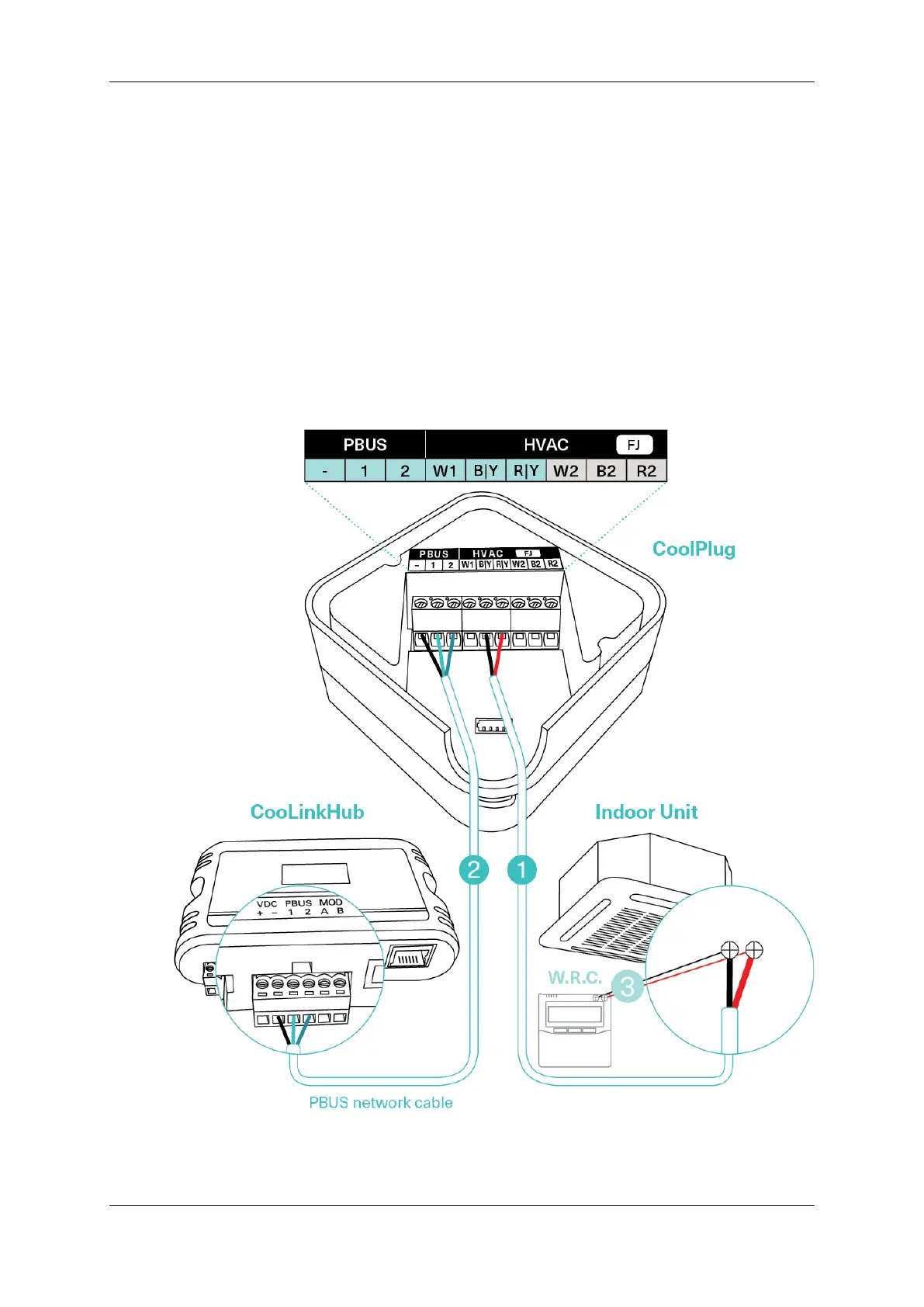

Connecting the CoolPlug HVAC Line to the Fujitsu Indoor Unit
Connect the CoolPlug’s [W1], [B1], [R1] terminals to the corresponding terminals on the
indoor unit, keeping the wire colors consistent.
2
Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS cable, using the [VDC-], [1] and [2] terminals on
the CooLinkHUB, to the
corresponding [-], [1] and [2] terminals on
the CoolPlug.
3 Optional: Connect the Wired Remote Controller (W.R.C.)
* For indoors that work with 2-wire compatible W.R.C. models.
