CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug Gree (GRTS)
QIG Version 2.2 18 CoolPlug CooLinkHUB
11.
Connecting CoolPlug Gree (GRTS)
11.1
Gree Option 1
1

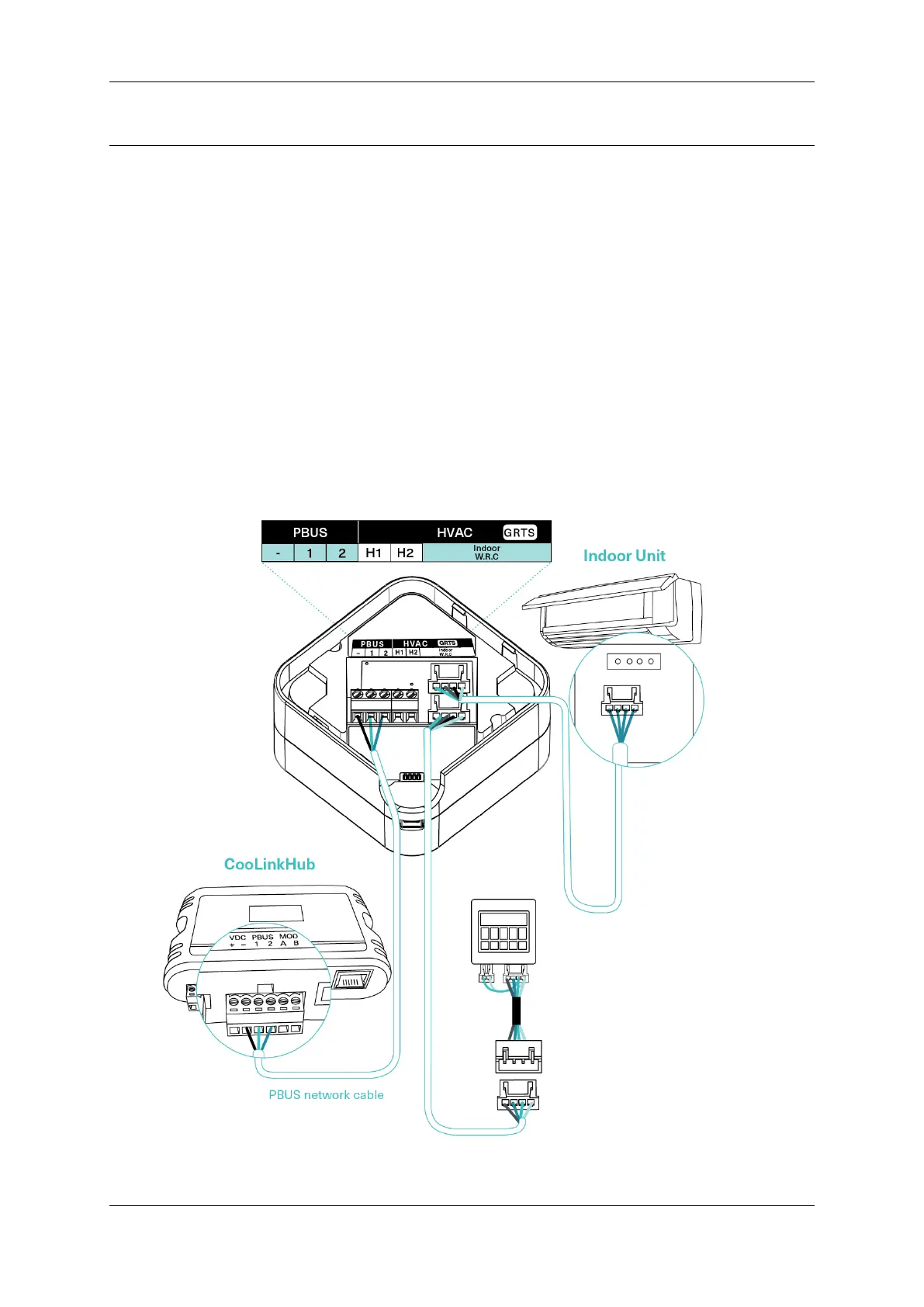

Connecting the CoolPlug HVAC Line to the Gree Indoor Unit
Connect the cable supplied with the CoolPlug, between the
CoolPlug Indoor connector and the connector on the indoor unit’s PCB. Consult the
HVAC manufacturer’s Installation manual for the location of the indoor unit connector on
the Control Board.
2
Connecting the CoolPlug to the W.R.C.
Connect the short cable (supplied with the CoolPlug) between the 2 W.R.C. ports and
the W.R.C. cable to the CoolPlug’s W.R.C. port.
3
Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of PBUS cable between the CoolPlug terminals [-], [1] and [2],
and the CooLinkHUB terminals [VDC-], [1] and [2], respectively.
