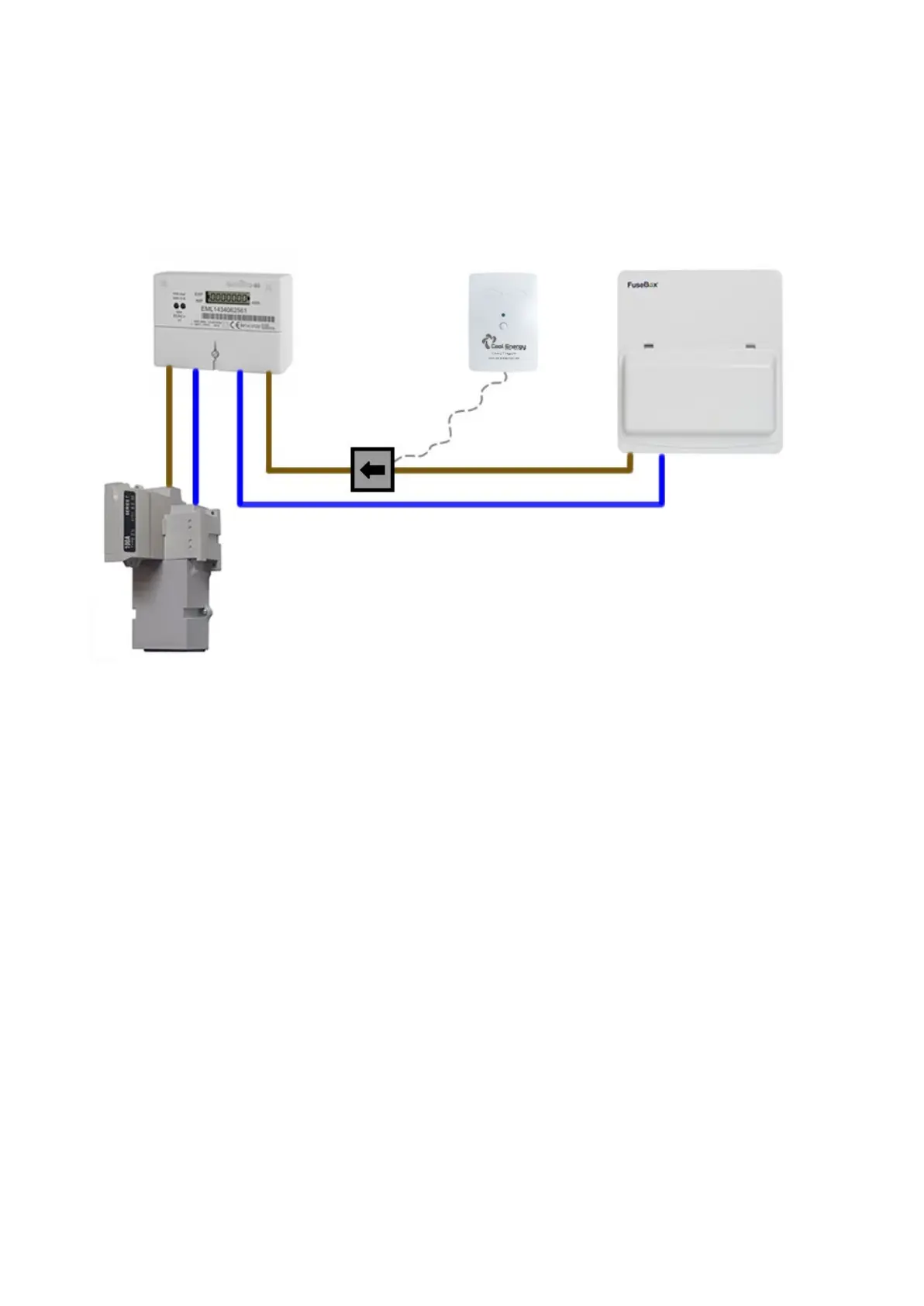

Installation of the Wireless CT Sender
The wireless CT transmitted box should be mounted on the wall near to the electricity meter.
The CT or Current Transformer clamp should then be installed with the arrow pointing toward the electricity
meter.
Wireless CT Sender Pairing:
To initiate pairing of the wireless CT sender to the diverTech unit follow the below steps:
1. Ensure sender unit has 2 x AA batteries installed.
2. On the inverTech unit press “Display” + “Down” buttons together for 1 second – The Screen will now
show “Pairing”
3. On the sender unit hold the middle button for 3 seconds and it will try and connect to the inverTech unit.
4. Once paring is complete “Pairing Success” will be displayed on the screen.
5. If “Pairing Failed” is displayed, please check and repeat the above process.
