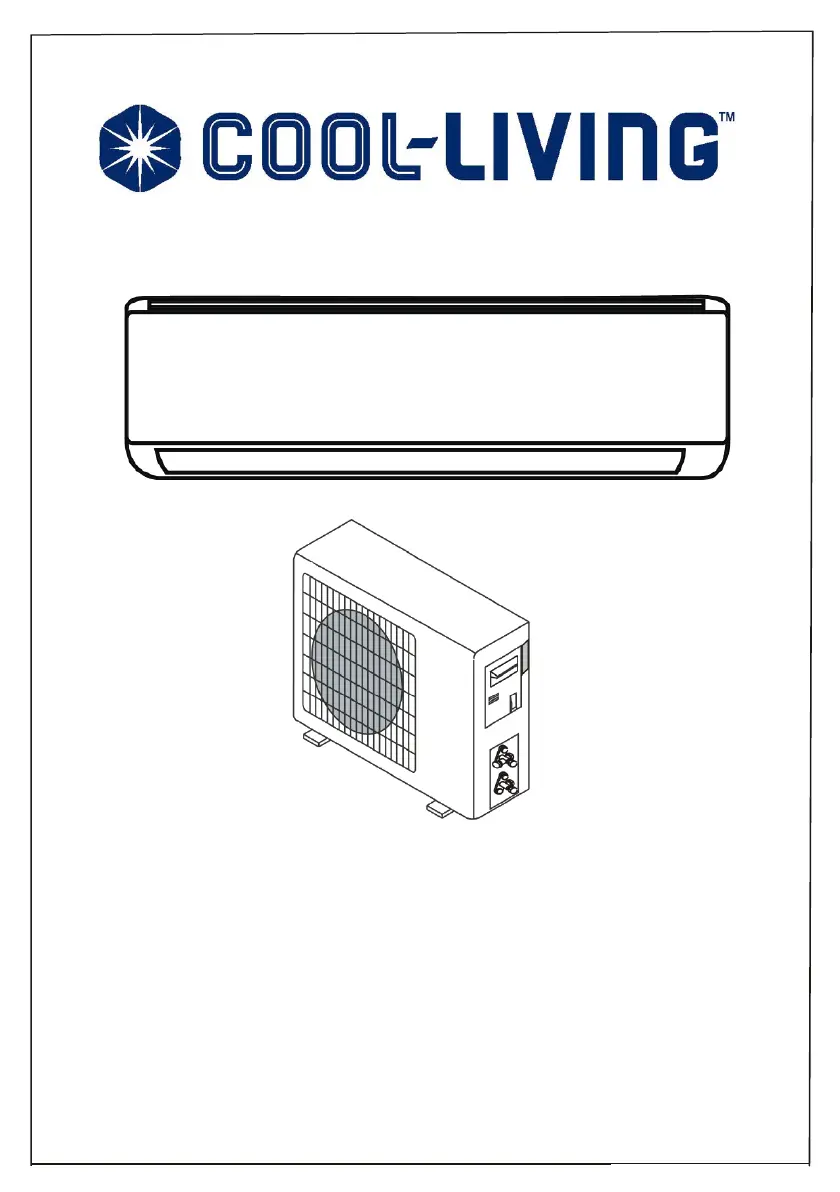

Instruction Manual
Model: CL-09HA1, CL-12HA1
Mini Split Air Conditioner

Table of Contents

Questions and Answers

  • C
    Cynthia RiveraAug 14, 2025
    Why is my Cool-Living CL-12HA1 Air Conditioner not turning on?
    • N
      Nicole WhiteAug 14, 2025
      Your Cool-Living Air Conditioner might not be operating due to several reasons. It could be a simple power failure or the plug may have been pulled out, so check the power supply and plug. Other potential causes include a damaged indoor or outdoor unit fan motor (inspect and replace if damaged), a faulty compressor thermomagnetic circuit breaker (check and replace), faulty protective devices or fuses (inspect and replace), or loose connections (ensure all are secure). Also, the unit may have stopped to protect itself and needs time to reset. Check for correct voltage supply, deactivate TIMER-ON function, or inspect and replace the electronic control board.
  • A
    Andres CarrAug 17, 2025
    What to do if my Cool-Living Air Conditioner remote isn't working?
    • C
      Carol CollinsAug 18, 2025
      If your Cool-Living Air Conditioner isn't responding to the remote, first ensure the remote is close enough to the indoor unit. Try replacing the batteries in the remote control. Also, make sure there are no obstacles blocking the signal between the remote and the signal receiver on the indoor unit.
  • C
    Claudia MuellerAug 21, 2025
    How to improve airflow in my Cool-Living Air Conditioner?
    • H
      hughesmelissaAug 21, 2025
      If you're experiencing insufficient airflow with your Cool-Living Air Conditioner, there are several things to check. First, adjust the temperature setting to a more suitable level. Ensure that the air conditioner intakes and outlets are free from obstructions. Clean or replace the air filter, and increase the fan speed. Also, consider reducing other heat sources in the room. If none of these steps work, check the refrigerant levels and refill if necessary.
  • P
    pnewmanAug 25, 2025
    Why should I switch off my Cool-Living Air Conditioner immediately?
    • E
      Erica DuranAug 25, 2025
      You should immediately switch off your Cool-Living Air Conditioner and cut off the power supply if you notice strange noises during operation (investigate the source), a faulty electronic control board (inspect and replace if faulty), faulty fuses or switches (check and replace), spraying water or objects inside the appliance (remove any water or objects), overheated cables or plugs (check and replace any damaged cables or plugs), or very strong smells coming from the appliance (investigate and remedy the source).
  • C
    Clifford HernandezAug 27, 2025
    Why does my Cool-Living CL-12HA1 smell strange?
    • S
      Samuel CastanedaAug 27, 2025
      A strange odor coming from your Cool-Living Air Conditioner is likely due to a dirty air filter. Clean or replace the air filter to resolve this issue.
  • J
    Jennifer HoustonAug 31, 2025
    Why is the display off on my Cool-Living CL-12HA1?
    • M
      mhuffAug 31, 2025
      The display on your Cool-Living Air Conditioner might be off because the LIGHT function is not activated. Alternatively, there may be a power failure. Check for power supply issues.
  • J
    John SullivanSep 3, 2025
    Why do I hear running water in my Cool-Living CL-12HA1?
    • K
      Kristine RobertsSep 3, 2025
      The noise of running water in your Cool-Living Air Conditioner could be due to the back flow of liquid in the refrigerant circulation. Check for refrigerant flow issues.
  • E
    Elizabeth HobbsSep 7, 2025
    What's that strange noise coming from my Cool-Living CL-12HA1?
    • R
      robinsonianSep 7, 2025
      This noise is made by the expansion or contraction of the front panel due to variations in temperature and does not indicate a problem.
  • T
    Tiffany SmithSep 10, 2025
    Why is there mist coming from my Cool-Living Air Conditioner?
    • B
      bradcookSep 10, 2025
      This occurs when the air in the room becomes very cold, for example in the COOLING or DEHUMIDIFYING/DRY modes.

Summary

Installation Safety Guidelines

User Operation and Maintenance Safety

General Safety Prohibitions

Emergency Function Operation

Auto-Restart Functionality

Remote Control Button Functions

Remote Control Display Symbols

Operating the Unit with Remote Control

Swing and Self-Clean Functions

Cooling Mode Operation

Heating Mode Operation

Dry Mode Operation

Sleep Function Operation

Fan Speed Adjustment

ECO Function for Energy Saving

Turbo Function for Fast Cooling;Heating

Timer On Function Setup

Timer Off Function Setup

I FEEL Function for Temperature Optimization

Self-Clean Function Operation

Mute Function for Quiet Operation

Appliance Protection Modes

Indoor Unit Installation Location

Outdoor Unit Installation Location

Mounting Plate Installation

Wall Hole Preparation for Piping

Indoor Unit Electrical Connections

Refrigerant Piping Connection

Indoor Unit Water Drainage Setup

Final Indoor Unit Mounting

Outdoor Unit Electrical Connections

Connecting Outdoor Unit Pipes

Refrigerant Circulation Bleeding

Operation Test and Checks

Flange Connection Tightening Torque

Wiring Diagram Information

Cable Wire Specifications

Indoor Unit Antidust Filter Cleaning

Troubleshooting Malfunctions

Indoor Unit Error Code Display

Cool-Living CL-12HA1 Specifications

General IconGeneral
TypePortable Air Conditioner
Power Supply115V/60Hz
BTU12, 000
Cooling Capacity12, 000 BTU
Operating Temperature62°F - 90°F
Dehumidification Capacity1.5 pints/hr
