EXT-0087-R00-01082020 (LTR) 10/17
DIM-TO-WARM (DTW)
16 bit standard. Fully Compliant with USITT DMX512-A (E1.11-2008(R2013)).
Dim-to-Warm is a mode in the Control Module to be used in conjunction with the Dim-to-Warm option of TILE Tunable White.
In this mode the CCT will adjust from 2200K at lowest dim setting to 3500K at the highest dim setting. This mode can be used with
58V *100/200/400W systems. A 400W driver can power up to 2 Control Modules
Warming: Changing DIP Switch Setting must be performed
only after unit is powered down
DMX Cooledge Controller accepts only 16- bit DMX control

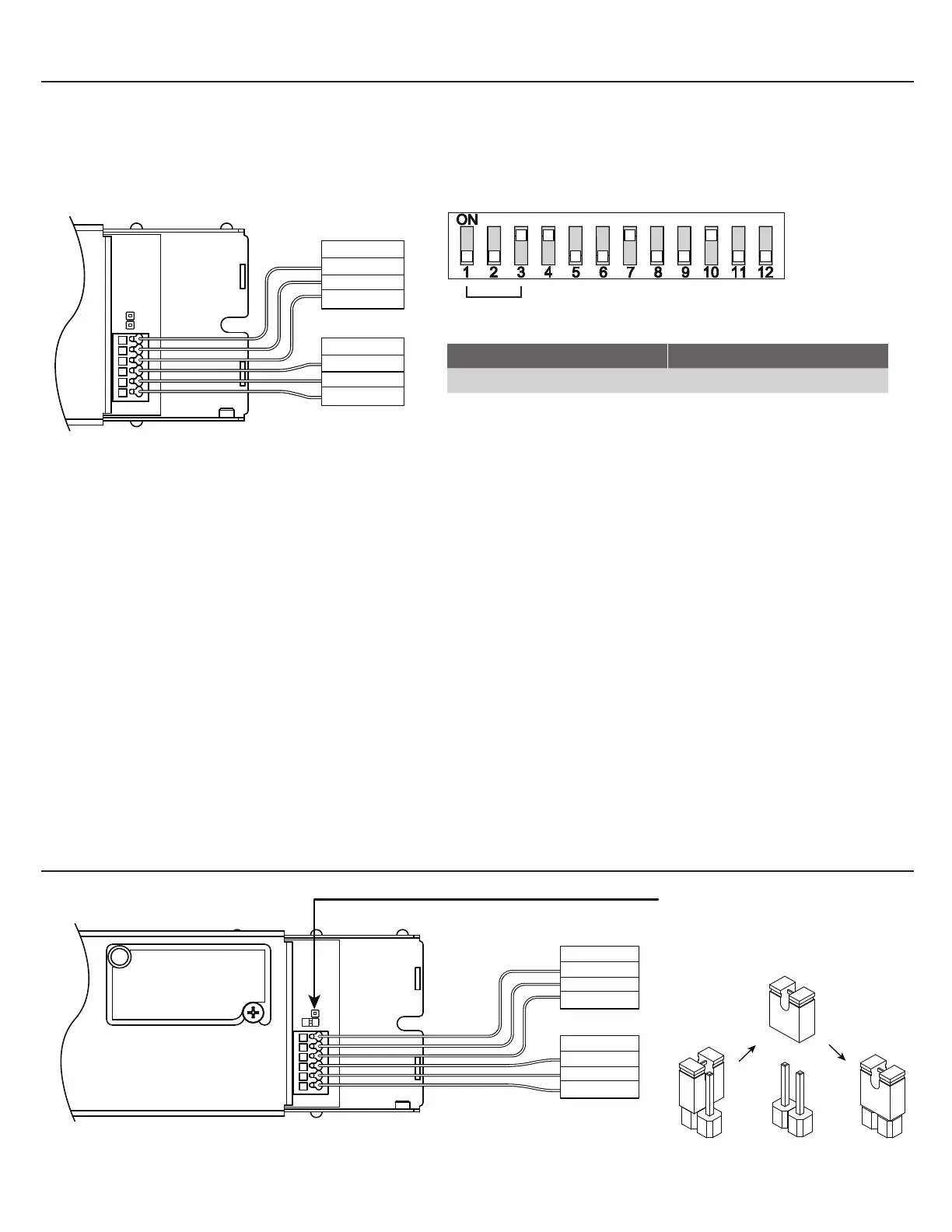

- Switches 1 - 3: Control Module MODE
DMX OUTPUT
GND
D-
D+
DMX INPUT
GND
D-
D+
DMX
For DTW Mode each TNW Output Channel uses 2 x DMX Channels:
1 for DIMM Coarse
1 for DIMM Fine; CCT is calculated internally
In total, each controller occupies 4 x DMX channels, assigned as below:
DMX CH1 – DIM Coarse DTW Output CH1
DMX CH2 – DIM Fine DTW Output CH1
DMX CH3 – DIM Coarse DTW Output CH2
DMX CH4 – DIM Fine DTW Output CH2
Example of addressing units for DTW Mode on DMX bus:
1. Unit 1 takes DMX Address = 1 and unit occupies DMX Channels # 1-4
2. Unit 2 takes DMX Address = 5 and unit occupies DMX Channels # 5-8
3. Unit 3 takes DMX Address = 9 and unit occupies DMX Channels # 9-12
For the above the DIP SETTINGS are:
1. 011 000000001 Controller set for DTW Mode, unit occupies DMX Channels 1-4
2. 011 000000101 Controller set for DTW Mode, unit occupies DMX Channels 5-8
3. 011 000001001 Controller set for DTW Mode, unit occupies DMX Channels 9-12
CONTROL INPUTS: DMX
DMX OUTPUT
GND
D-
D+
DMX INPUT
GND
D-
D+
When installing the final controller (termination
point) in a DMX network use the provided jumper
on the indicated header.
DMX
Dimming Protocol Mode Switches 1-3
DMX DTW 0-1-1
