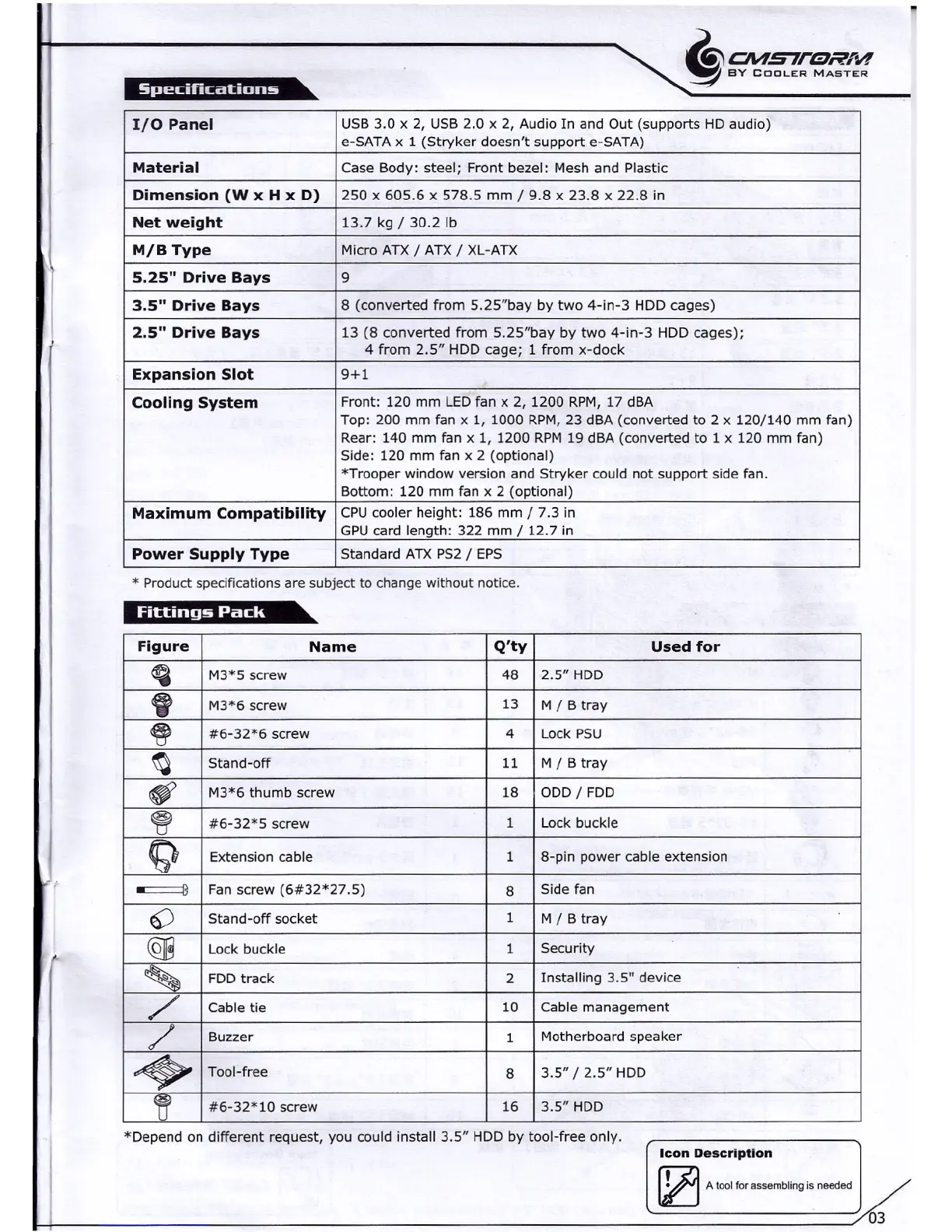

Cooler Master CMStorm Trooper - Technical Specifications; Included Hardware Fittings

.~~ CJVI57reRFVI
~ BY COOLER MASTER
IJ .Iq.;. if;; i.!. b
I/O Panel
USB 3.0 x 2, USB 2.0 x 2, Audio In and Out (supports HD audio)
e-SATA x 1 (Stryker doesn't support e-SATA)
Material
Case Body: steel; Front bezel: Mesh and Plastic
Dimension (W x H x D) 250 x 605.6 x 578.5 mm / 9.8 x 23.8 x 22.8 in
Net weight
13.7 kg / 30.2 Ib
M/B Type
Micro ATX / ATX / XL-ATX
5.25" Drive Bays 9
3.5" Drive Bays
8 (converted from 5.25"bay by two 4-in-3 HDD cages)
2.5" Drive Bays
13 (8 converted from 5.25"bay by two 4-in-3 HDD cages);
4 from 2.5" HDD cage; 1 from x-dock
Expansion Slot
9+1
Cooling System
Front: 120 mm LED fan x 2, 1200 RPM, 17 dBA
Top: 200 mm fan x 1, 1000 RPM, 23 dBA (converted to 2 x 120/140 mm fan)
Rear: 140 mm fan x 1, 1200 RPM 19 dBA (converted to 1 x 120 mm fan)
Side: 120 mm fan x 2 (optional)
*Trooper window version and Stryker could not support side fan.
Bottom: 120 mm fan x 2 (optional)
Maximum Compatibility CPU cooler height: 186 mm / 7.3 in
GPU card length: 322 mm / 12.7 in
Power Supply Type Standard ATX PS2 / EPS
* Product specifications are subject to change without notice.
• iB!i,j,?i pm i_
Figure
Name
~
M3*5 screw
9
M3*6 screw
~
#6-32*6 screw
~
Stand-off
~
M3*6 thumb screw
~
#6-32*5 screw
Q
Extension cable
-===Il
Fan screw (6#32*27.5)
6)
Stand-off socket
t·
@8
Lock buckle
,
FDD track
/
Cable tie
/
Buzzer
•
Tool-free
~
#6-32*10 screw
Q'ty Used for
48 2.5" HDD
13 M / B tray
4 Lock PSU
11 M / B tray
18 ODD / FDD
Lock buckle
8-pin power cable extension
8 Side fan
M / B tray
Security
2 Installing 3.5" device
10 Cable management
Motherboard speaker
8 3.5" /2.5" HDD
16 3.5" HDD
*Depend on different request, you could install 3.5" HDD by tool-free only.
Icon Description
~ ..
I£.J A tool for assembling IS needed
~ ~==========~03
