Preparing the Camera
2.6. Using the wall mount/bracket
Using the supplied wall mount, the camera can be securely attached to
walls or ceilings. Prior to installing the wall mount ensure that all
existing bolts are securely tightened.

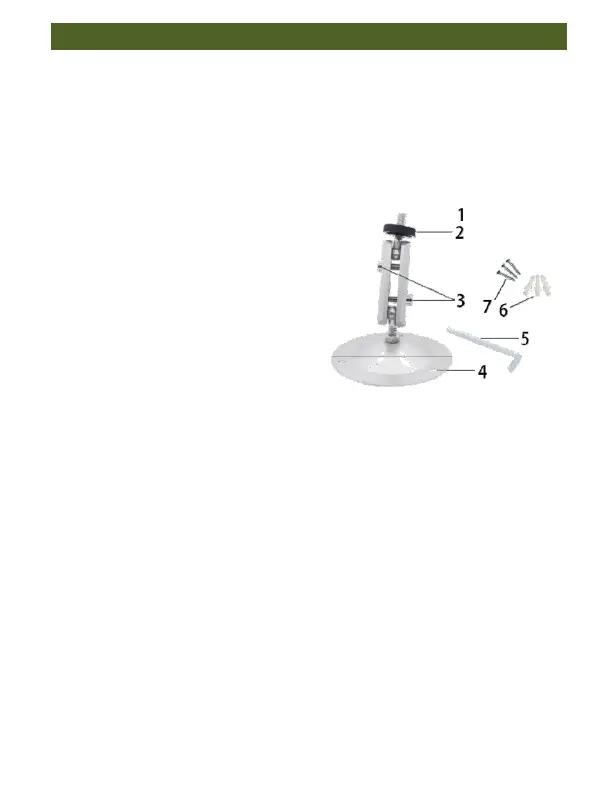

1. 1/4“Tripod bolt
2.Counter screw/Lock nut
3.Pivot bolt
4.Drilled holes
5.Hexagonal screw
6.Plastic expansion tube/Wall plugs
7.Long screw of metal bracket
Required tools
■ Drill
■ 6 mm masonry/concrete drill bit
■ Phillips head screwdriver
Note:
■ Ensure that there are no electric lines, water, or heating pipes
installed at the proposed drilling location!
■ The supplied wall plugs are only suitable for mounting on concrete
or stone. Before starting the installation, please check your installation
