Cooline PT036 - Schematic Wiring Diagrams

JUMPER SETTING ON ECB
DIP SWITCH SETTINGS
HEATER DATA TABLE
(SEE HEATER DATA TABLE)
HEATER CONNECTION DETAILS

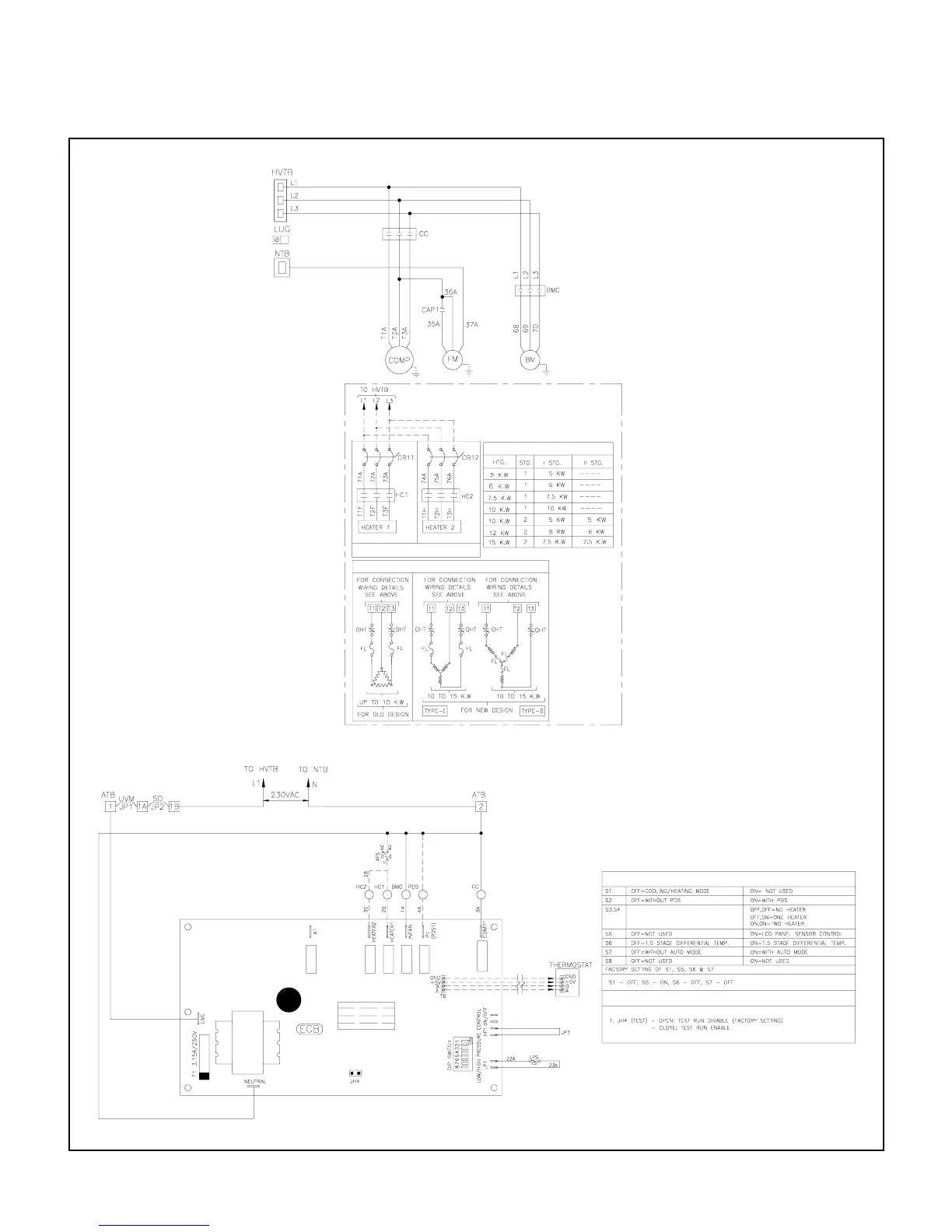

TYPICAL SCHEMATIC WIRING DIAGRAM
MODELS : PT036 - PT075 (Single compressor units)
NOTE: 1. Refer to next page for legend, notes & wiring diagram for optional items.
2. Refer to unit control box (inside panel) for exact wiring diagram.
