Cooline PT036 - Unit Dimensions and Diagrams

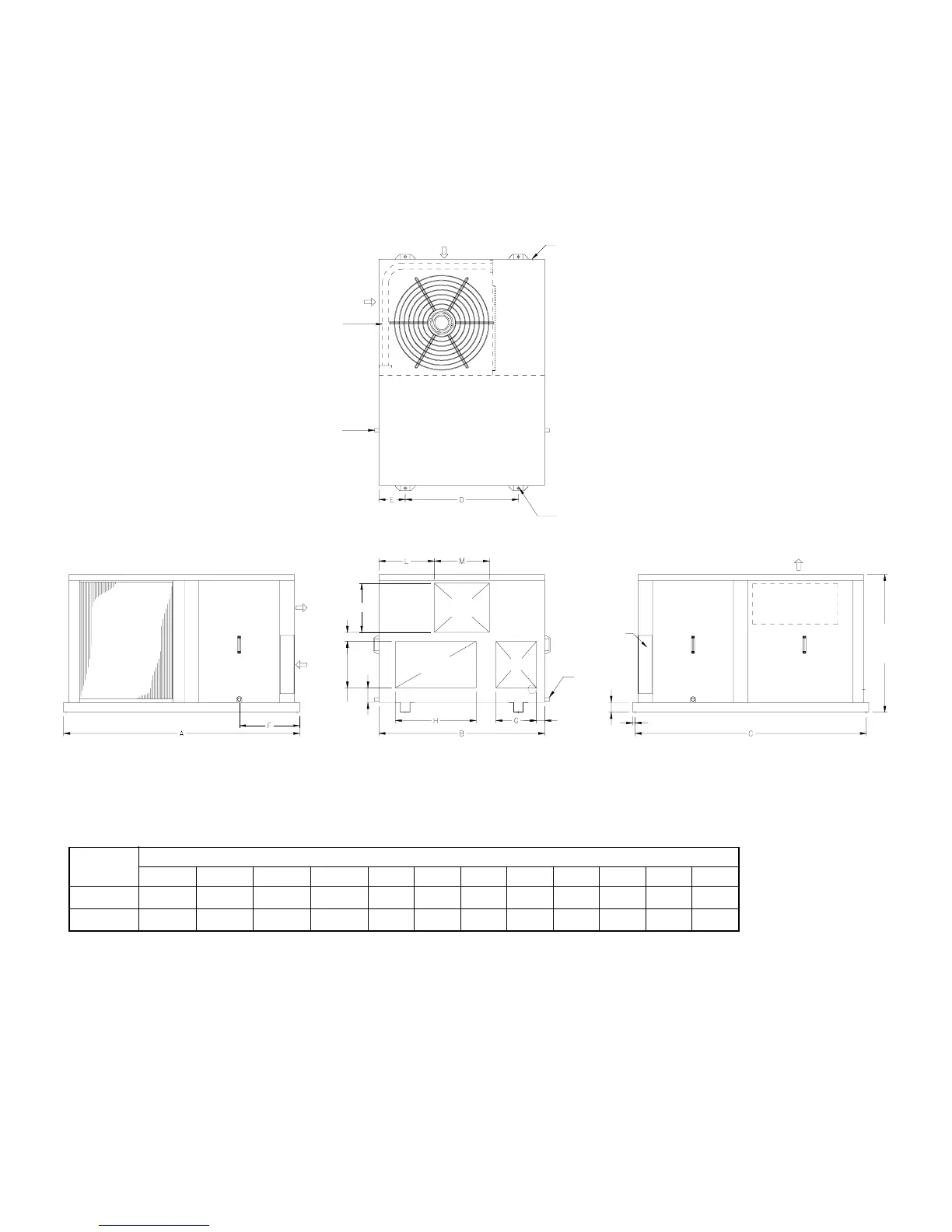

UNIT DIMENSIONS
PT036 - PT075
ABCDEFGHJKLM
PT036 - PT060 1460(57.48) 1025(40.35) 1430(56.3) 700(27.56) 163(6.42) 373(14.68) 250(9.84) 500(19.69) 57(2.24) 304(11.96) 343(13.49) 340(13.39)
PT075 1775(69.88) 1150(45.28) 1745(68.7) 800(31.5) 175(6.89) 480(18.9) 325(12.8) 672(26.46) 80(3.15) 280(11.02) 275(10.83) 600(23.62)
MODEL
DIMENSIONS
NOTE:
1. All dimensions are in mm (dimensions in brackets are in inches).
2. Service clearance should be 1200mm (4 feet) on all sides.
7
CONDENSATE DRAIN OUTLET [BOTH ENDS]
MOUNTING HOLES Ø
13 [0.5] [ 4 EACH]
K
J
286 [11.27]
90 [3.53]
51 [2.00]
15 [0.59]
61 [2.41]
850 [33.46]
FRESH AIR
OPENING
POWER SUPPLY INLET
DRAIN OUTLET
[BOTH ENDS]
FILTER ACCESS
PANEL [BOTH ENDS]
CONDENSER COIL
CONDENSER COIL
COMPRESSOR/CONTROLS
ACCESS PANEL
ACCESS PANEL
FOR BLOWER
AND MOTOR
AIR IN
RETURN AIR
SUPPLY AIR
AIR OUT
AIR IN
SIDE VIEW
COMPRESSOR/CONTROL
COMPARTMENT
SIDE VIEW
FRONT VIEW
TOP VIEW
RETURN AIR
OPENING
SUPPLY
AIR
OPENING
